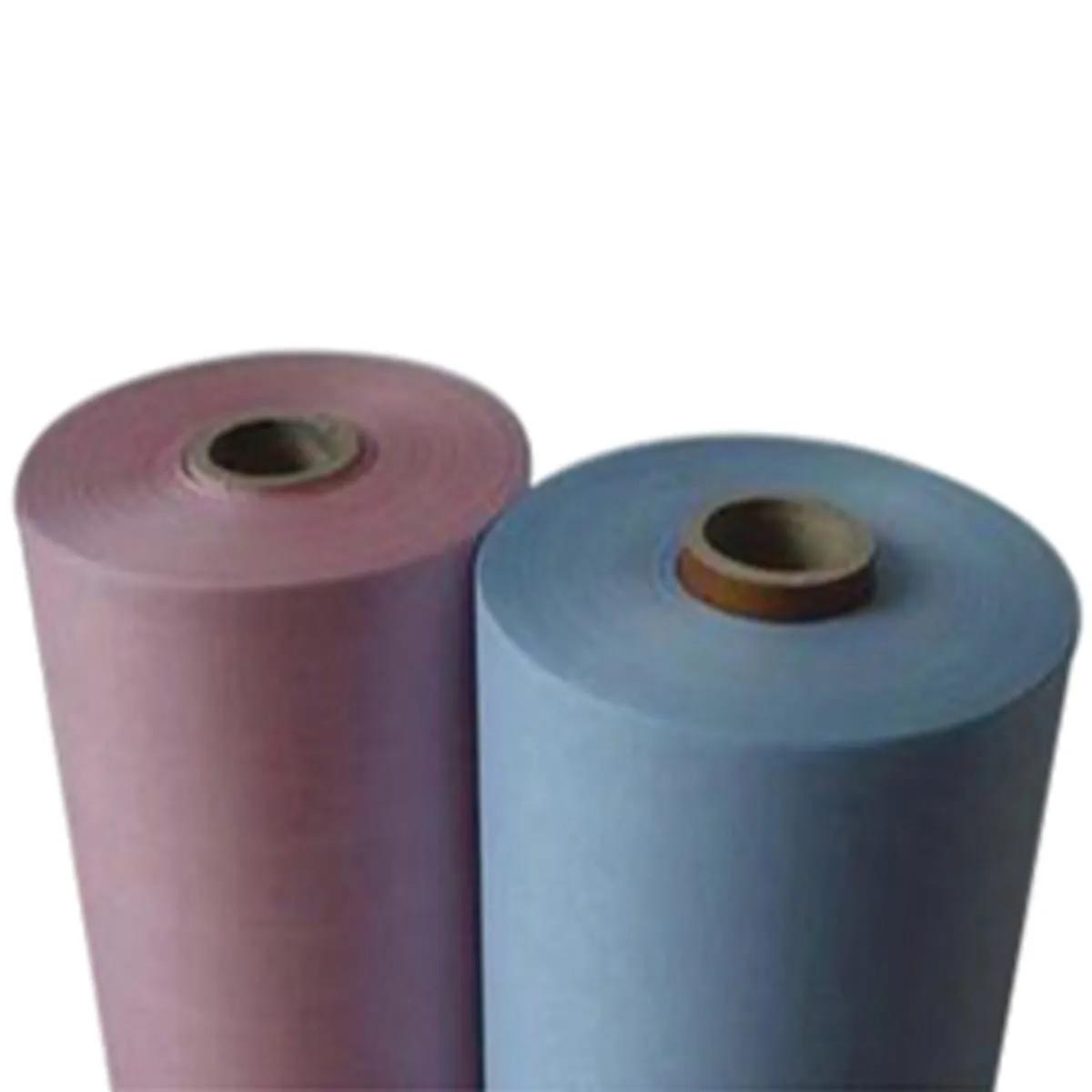

Von Roll DMD 100 Blue Triplex Flexible Laminate Roll
MFR #:Dacron® Mylar® Dacron®-100-FLX LAM-ROL-BLU
EIS #:PH21-Dacron Mylar Dacron-100-FLX LAM-ROL-BLU
Series #:Dacron® Mylar® Dacron®-100-FLX LAM-ROL-BLU
MFR #:Dacron® Mylar® Dacron®-100-FLX LAM-ROL-BLU
EIS #:PH21-Dacron Mylar Dacron-100-FLX LAM-ROL-BLU
Series #:Dacron® Mylar® Dacron®-100-FLX LAM-ROL-BLU
Von Roll DMD 100 Triplex Flexible Laminate, Class F Insulation. - Acuflex® DMD 100 3-ply polyester mat/polyester film laminates are constructed of high-density polyester mat and electrical grade polyester film bonded with Von Roll's Thermal Bond adhesive system.
Select from the options below
Von Roll DMD 100 Triplex Flexible Laminate, Class F Insulation. - Acuflex® DMD 100 3-ply polyester mat/polyester film laminates are constructed of high-density polyester mat and electrical grade polyester film bonded with Von Roll's Thermal Bond adhesive system.
Product Options
Showing 3 out of 3 options
 | Length: 500 Yard | Thickness: 15 mil | EIS Part #: DMD555B1M | $ / Square YD | |
| Length: 500 Yard | Thickness: 11 mil | EIS Part #: DMD353B1M | $ / Square YD | |
| Length: 36 Yard | Thickness: 9 mil | EIS Part #: DMD333A | $ / Square YD |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameFlexible Laminate
Trade NameDacron® Mylar® Dacron®-100
SeriesDacron® Mylar® Dacron®-100-FLX LAM-ROL-BLU
General Features
TypeTriplex
Design & Construction
ColorBlue
Insulation TypeClass F
Physical Properties
Width36 Inch
Features
- Tough, affordable laminates for a wide variety of applications
- Excellent resistance to cut-through and edge tear
- Many UL systems including Acuflex laminates are available for Class B-130 °C, Class F-155 °C, may often be used as secondary insulation through Class H-180 °C
- Wide range of constructions to optimize mechanical and electrical designs
- White version is acceptable for use in most hermetic motor applications
- Excellent moisture and chemical resistance
- 100% Resin Filled Protection
- Volume Resistivity: 10^15 Ohm-cm
Applications
- Motors
- Generators
- Transformers
- Fractional to the Largest Rotating Electrical Equipment as Slot, Phase and End-Turn Insulation
- Ground and Wrapper Insulation in Dry-type Transformers
- Well-Suited for Punched and Fabricated Parts Such as Slot Interlining Insulation and Wedges
