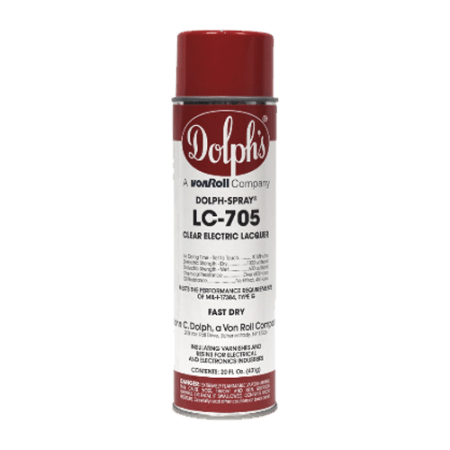

Von Roll/John C Dolph LC-705 Insulating Lacquer Varnish, 20 oz, Clear
MFR #:391213
EIS #:DOLLC705DS
MFR #:391213
EIS #:DOLLC705DS
In Stock
Min Qty:1
|Qty Increment:1
Clear insulating lacquer is made of a cellulosic film forming compounded with selected plasticizers and solvents.
Von Roll/John C Dolph LC-705 Insulating Lacquer Varnish, 1500 V/Mil (Dry), 800 V/Mil (Wet) Dielectric Strength, 10 - 30 min Dry Time, 105 °C Temperature Rating.
$35.50 / each
Min Qty:1
|Qty Increment:1
Clear insulating lacquer is made of a cellulosic film forming compounded with selected plasticizers and solvents.
Von Roll/John C Dolph LC-705 Insulating Lacquer Varnish, 1500 V/Mil (Dry), 800 V/Mil (Wet) Dielectric Strength, 10 - 30 min Dry Time, 105 °C Temperature Rating.
Product Options
Showing 2 out of 2 options
 | Container Size: 1 gal | EIS Part #: DOLLC705G | $ / US gallon | |
| Container Size: 20 Oz | EIS Part #: DOLLC705DS | $ / each |
- Attributes
- Applications
- Features
- Documents
Attributes
General Information
Item NameVarnish
Trade NameVon Roll John Cdolph
SeriesLC-705
General Features
Shelf Life12 Months
TypeInsulating Lacquer
Design & Construction
ColorClear
Performance Details
Dry Time10 min
Electrical Properties
Dielectric Strength1500 V/mil
Physical Properties
Container Size20 oz
Container TypeCan
Environmental Condition
Temperature Rating105 °C
Applications
- For Deflection Yoke Coating, Coil Winding Adhesive, Waterproof Seal for Small Coils, Paper Coil Form Coating, Lock On I.F. Transformer Adjusting Screws
Features
- Low flammability film
- Rapid air-drying
- Good corona resistance
- Low power factor
- Tough, flexible film
- Dielectric Strength: 1500 V/Mil (Dry), 800 V/Mil (Wet)
- Dry Time: 10 - 30 min
