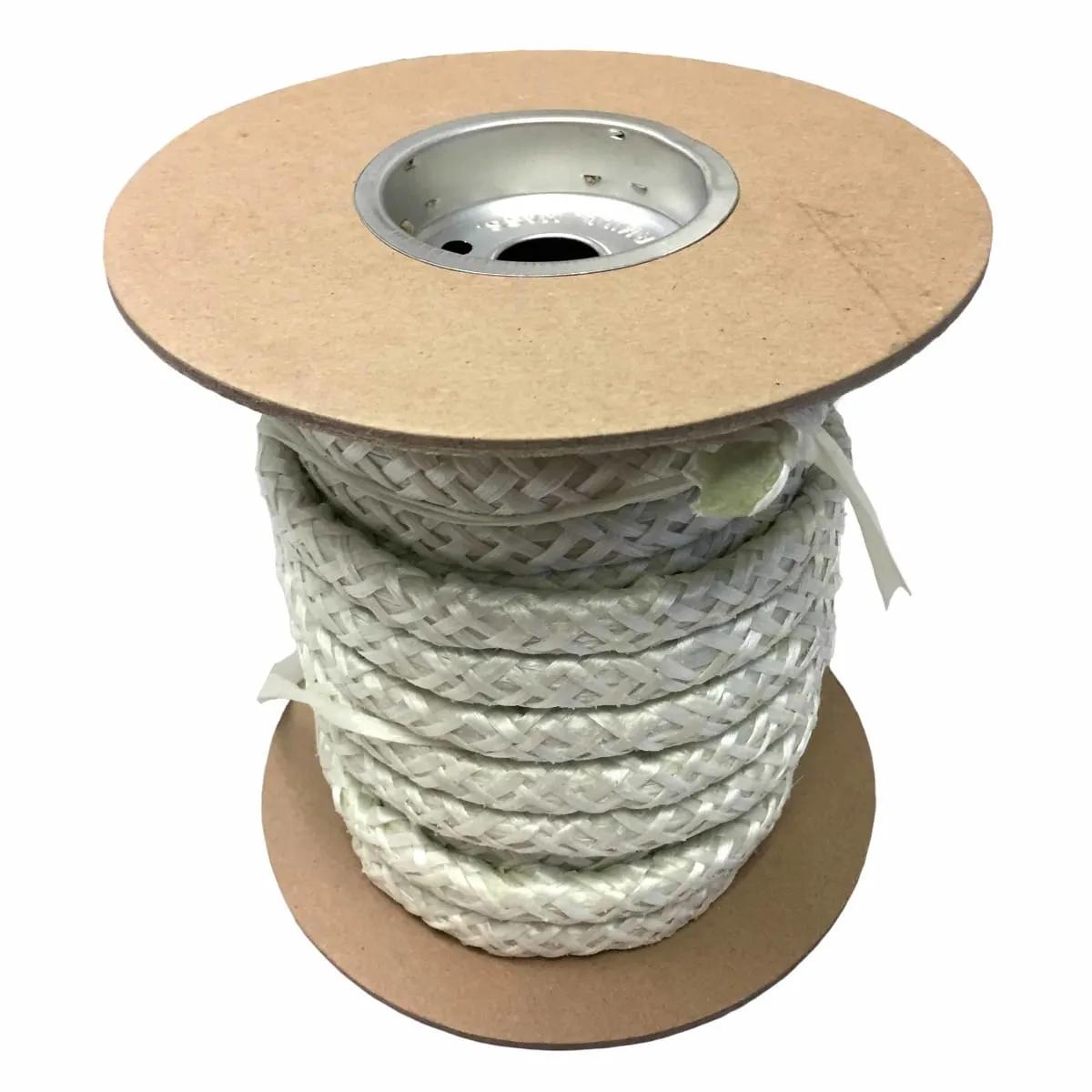

Von Roll 76831 Permafil® Polyester Surge Rope
- MFR #76831
- EIS #PH22-76831
$270.51 - $2,625.24
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 50 ft Spool | 0.5 Inch | $ / Spool | |
| 50 ft Spool | 1 Inch | $ / Spool | |
| 50 ft Spool | 0.75 Inch | $ / Spool | |
| 50 ft Spool | 0.875 Inch | $ / Spool | |
| 50 ft Spool | 0.375 Inch | $ / Spool | |
| 500 ft Spool | 0.375 Inch | $ / Spool |
Permafil 76831 rope is designed to secure and support motor components and protect them from the destructive vibrations of mechanical and centripetal forces. The product is constructed of a tough glass yarn that is braided into the rope form and thoroughly impregnated with an uncured, fully catalyzed, thermosetting polyester resin, resulting in a pliable rope that cures to a steel-hard, rigid form. - Permafil rope is suggested as a replacement for both steel and laminated fiberglass surge rings, spacers on DC armatures, as a winding head support on random wound machines and as a support system for the nose sections of AC form wound coils.
Features
- Designed to affordably and effectively replace insulated steel rings in motor and generator end turn supports
- Cures during preheat cycle
- Very strong and resilient support
- Simple to install
- Provides stronger, more rigid support than untreated ropes
- Dependable, proven performance
- Tensile strength of 1.2 x 10^5 psi
Applications
- For Additional Straps or Supporting Braces Would Improve the Apparatus
General Information
| Item Name | Surge Rope |
| Trade Name | Permafil® |
| Series | 76831 |
General Features
| Storage Temperature | Room Temperature |
Design & Construction
| Adhesive Type | Thermosetting Resin |
| Backing Material | Polyester |
Physical Properties
| Core Size | 3 Inch |
Environmental Condition
| Temperature Rating | 155 °C |
Supporting Information
| Use With | VPI Systems |
