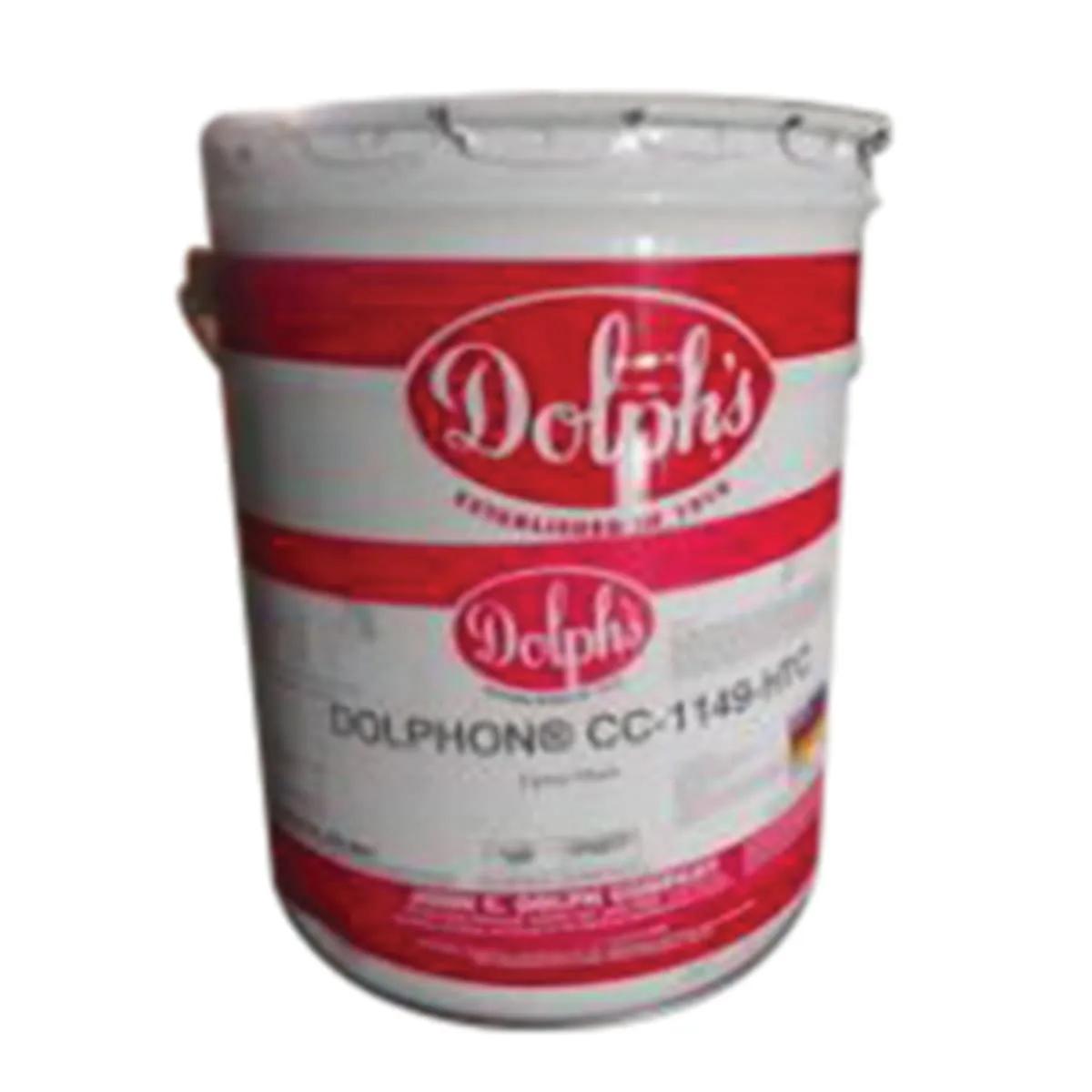

Von Roll/John C Dolph Dolphon® CC-1149 Solventless Polyester Resin
- MFR #Dolphon® CC-1149
- EIS #PH21-Dolphon CC-1149
$261.30 - $278.94
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 55 gal | $ / US gallon | |
| 5 gal | $ / US gallon |
Von Roll Dolphon® CC-1149 Solventless Polyester Resin. - CC - 1149 is a single variety of the best selling in the market of electrical insulating impregnating resin, it is a multipurpose, economy. Solvent-free polyester resin, has excellent storage stability and excellent performance.
Features
- High flash point (more than 200 °F), can be used for sealing machine
- Resistance, solvent-free, refrigerant (R123 & everything)
- A variety of purposes - can be used for immersion, excellent storage stability
- Vacuum, VPI, rolling and dripping leaching process
- High bonding strength, low odor
- Low volatility, excellent chemical resistance
- Low viscosity - excellent permeability, low vapor pressure, especially suitable for the vacuum process
- Gel Time: 110 - 180 min at 212 °F
- Flash Point: >200 °F
- Viscosity: 400 to 800 cps at 25 °C
- Thermal Conductivity: 0.53 BTU-Inch/hr-ft^2- °F
- Density: 9.6 - 10.0 lb/gal
- Gel Time: 110 - 180 min
- Viscosity: 400 - 800 cP
Applications
- Solenoid, Armature, Stator
- Transformers, Inductors, Motors
- Rotor, Forming the Windings, Choke
- Sealing Machine, Ferromagnetic Resonance Transformer, Brake Coil
General Information
| Item Name | Polyester Resin |
| Trade Name | Dolphon® |
| Series | Dolphon® CC-1149 |
General Features
| Type | Solventless |
Design & Construction
| Color | Clear |
Performance Details
| Gel Time | 110 min |
Technical Details
| Flash Point | 200 °F |
Chemical Properties
| Viscosity | 400 cP |
Electrical Properties
| Dielectric Strength | 115 V/mil |
Physical Properties
| Density | 9.6 lb/gal |
