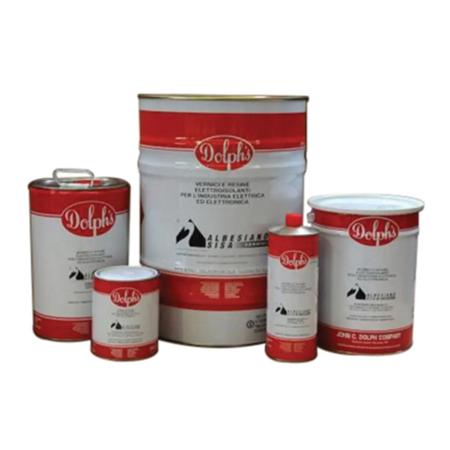

Von Roll/John C Dolph Dolphon® CC-1133 Solventless Polyester Resin
- MFR #Dolphon® CC-1133
- EIS #PH21-Dolphon CC-1133
$193.42 - $243.42
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 5 gal | $ / US gallon | |
 | 55 gal | $ / US gallon |
CC-1133 is a versatile, solventless, resilient, medium build polyester resin for use in a wide variety of electrical applications. CC-1133 is fast reacting when baked to help in reducing overall production time. - CC-1133 is a versatile, solventless, resilient, medium build polyester resin for use in a wide variety of electrical applications.
Features
- Low viscosity-good impregnation
- High bond strength
- Medium build
- Versatile-can be used in dip, vacuum or VPI
- Resilient-will not crack in thick sections
- Reduces noise
- Excellent corrosion resistance
- Viscosity: 300 to 700 cps at 25 °C
- Density: 8.7 - 9.1 lb/gal
- Gel Time: 100 - 150 min
- Viscosity: 300 - 700 cP
Applications
- Rotors, Stators, Sealed Systems, Random Wound Coils, Armatures
- Coils, DC Traction Coils, Form Wound Coils, Transformers
- Motors, Generators
General Information
| Item Name | Polyester Resin |
| Trade Name | Dolphon® |
| Series | Dolphon® CC-1133 |
General Features
| Type | Solventless |
Design & Construction
| Cure Type | Oven Cure |
| Insulation Type | Class R |
Performance Details
| Gel Time | 100 min |
Technical Details
| Flash Point | 130 °F |
Chemical Properties
| Viscosity | 300 cP |
Electrical Properties
| Dielectric Strength | 3500 V/mil |
Physical Properties
| Density | 8.7 lb/gal |
Environmental Condition
| Temperature Rating | 220 °C |
