3M CeQuin™ X-Inorganic Insulating Paper Roll, 10 Mil x 36" x 325 yd, MFR ID CEQUINX010X325
EIS #:CEQUINX010X325
Series #:CeQuin™ X
EIS #:CEQUINX010X325
Series #:CeQuin™ X
Out of Stock
Min Qty:1
|Qty Increment:1

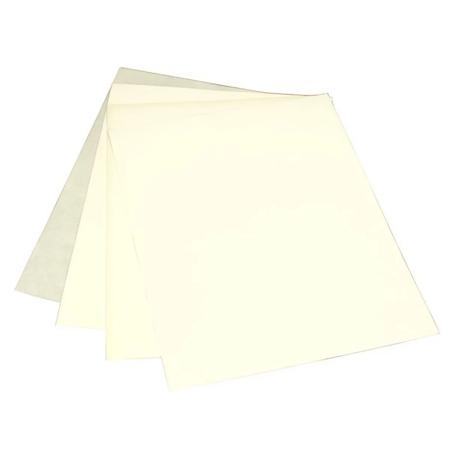

3M CeQuin™ X-inorganic insulating paper, roll configuration, class R insulation type, 220 °C temperature rating.
3M™ CeQUIN™ X-inorganic insulating paper is an inorganic-based paper for high-temperature electrical insulating applications.
$9.00 / Square YD
Min Qty:1
|Qty Increment:1
3M CeQuin™ X-inorganic insulating paper, roll configuration, class R insulation type, 220 °C temperature rating.
3M™ CeQUIN™ X-inorganic insulating paper is an inorganic-based paper for high-temperature electrical insulating applications.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameInorganic Insulating Paper
Trade NameCeQuin™ X
SeriesCeQuin™ X
Design & Construction
Insulation TypeClass R
Physical Properties
Length325 Yard
Thickness10 Mil
Width36 Inch
Environmental Condition
Temperature Rating220 °C
Features
- The inorganic content in CeQUIN™ X papers offers excellent thermal and dielectric stability, as well as high thermal conductivity, long-term voltage endurance, and low moisture absorption
- CeQUIN X papers are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics
- 12.75 Inch OD x 6 size
Applications
- Applications Include Ground and Layer Insulation in Dry-Type Transformers, as Well as Interwinding Insulation in Strip-Wound Coils and Electromagnet Coils, and Pole Insulation in Traction Motors
