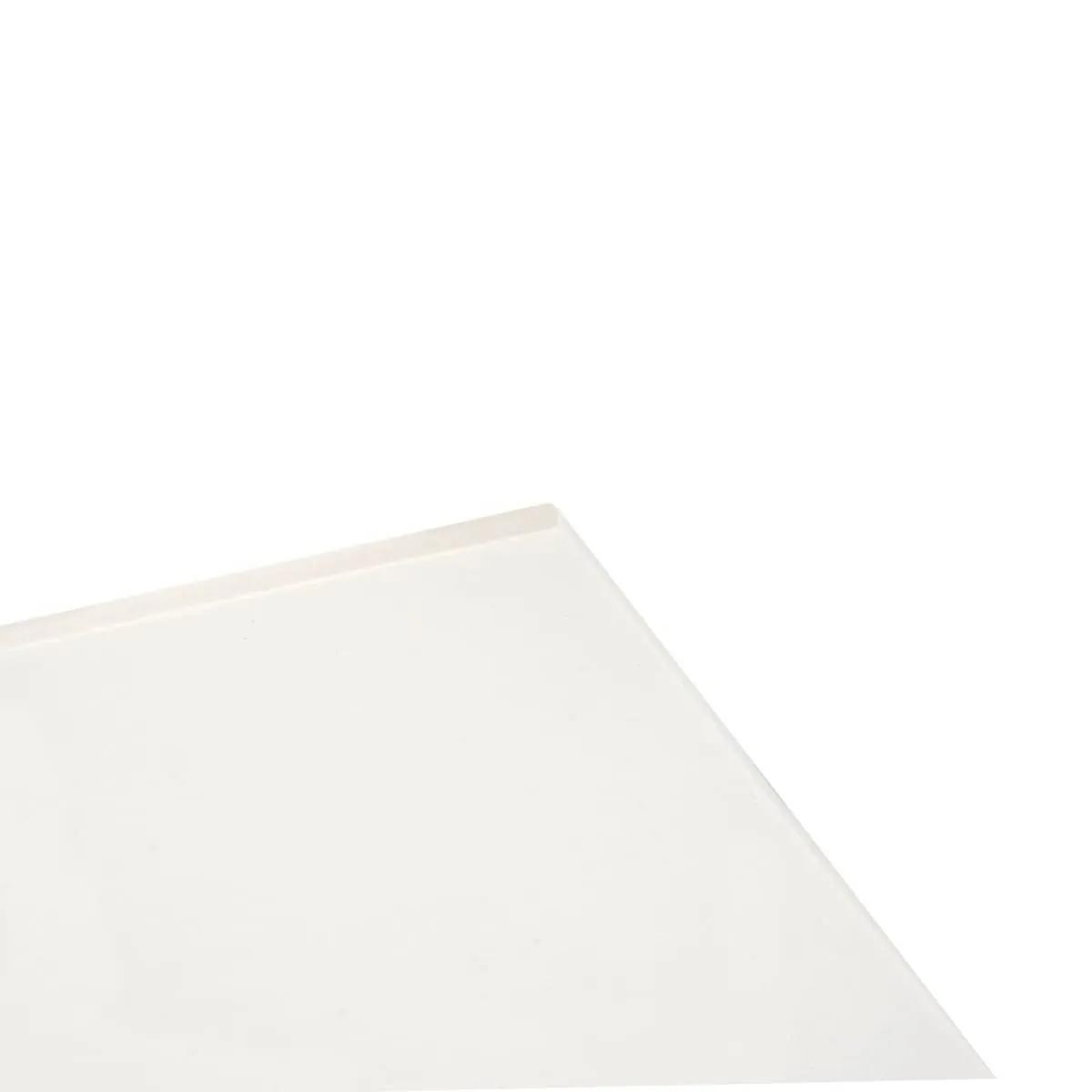

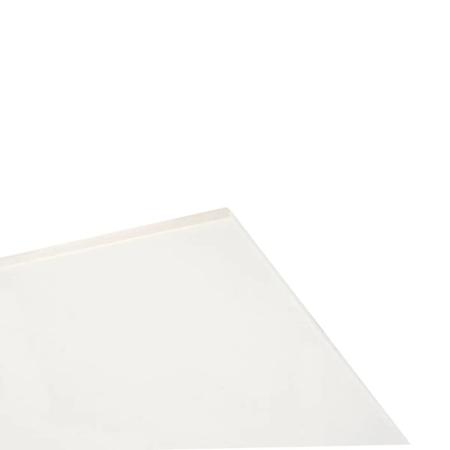

3M CeQuin™ CGA Beige Inorganic Insulating Board
- MFR #:CeQuin™ CGA
- EIS #:PH21-CeQuin CGA
- Series #:CeQuin™ CGA
- MFR #:CeQuin™ CGA
- EIS #:PH21-CeQuin CGA
- Series #:CeQuin™ CGA
3M™ CeQUINBORD CGA inorganic insulating board is a high inorganic content board composed primarily of glass fibers and microfibers, inorganic fillers, and less than 10 percent organic binders. - 3M CeQuin™ CGA inorganic insulating board, beige, <2% elongation, flame retardant, Class R insulation type, <1% moisture absorption, 220 °C temperature rating.
$87.23
- $259.76
Select from the options below
3M™ CeQUINBORD CGA inorganic insulating board is a high inorganic content board composed primarily of glass fibers and microfibers, inorganic fillers, and less than 10 percent organic binders. - 3M CeQuin™ CGA inorganic insulating board, beige, <2% elongation, flame retardant, Class R insulation type, <1% moisture absorption, 220 °C temperature rating.
Product Options
Showing 2 out of 2 options
 | Length: 48 Inch | Thickness: 93 mil | EIS Part #: CEQUINCG3/3223 | $ / Sheet | |
| Length: 48 Inch | Thickness: 31.25 mil | EIS Part #: CEQUINCG1/3223 | $ / Sheet |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameInorganic Insulating Board
Trade NameCeQuin™ CGA
SeriesCeQuin™ CGA
Design & Construction
ColorBeige
Insulation TypeClass R
Performance Details
Moisture Absorption<1%
Physical Properties
Elongation<2%
Width48 Inch
Features
- CeQUINBORD CGA board is available as trimmed 48 inch x 48 inch (1220 mm x 1220 mm) boards in thicknesses ranging from 1/32 inch (.79 mm) to 3/8 inch (9.5 mm)
- It is capable of long-term performance at temperatures exceeding 250 °C
- Exceptional thermal and dielectric stability for high-temperature electrical insulation applications
- Good thermal conductivity
- Easily impregnated and fully compatible with standard varnishes and resins
Applications
- Dry-Type Transformers (Ground, Barrier, Spacer Sticks, Core Tubes, Pads, End Fill), Spiral and Convolute Wound Tubing, Traction Motors, Generators, Switchgear, Flame Barrier Applications for Home Appliances and Electronic Devices, Heat Sinks, Specialty Gaskets
