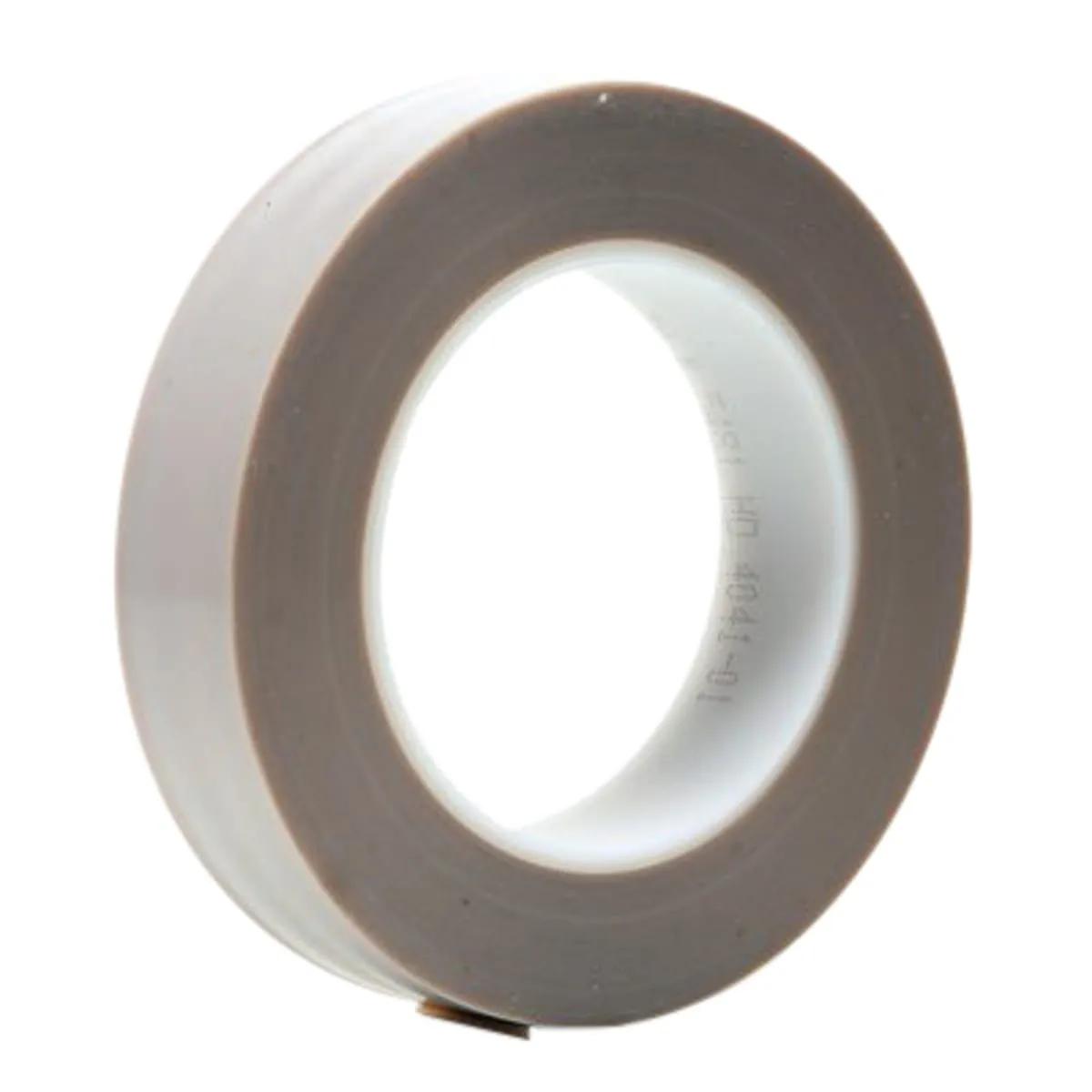

CHR 2042-5 Skived PTFE Film Tape, 1" x 9 yd x 6.5 Mil, Gray, MFR ID 2042-5X1
- EIS #OAK2042-5X1
Requires Quote / Roll
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
CHR 2042-5 PTFE films provide a conformable release surface and exhibit a remarkably low coefficient of friction and non-stick properties. At elevated temperatures, PTFE film still retains excellent tensile strength. Service temperatures range from -100 to 350 °F. - CHR 2042-5 is manufactured from skived PTFE film coated with high temperature acrylic adhesive. PTFE films have high temperature resistance and are virtually unaffected by all chemicals.
Features
- 2042 tape construction is stable and non-toxic
- PTFE backing offers excellent high temperature resistance and is chemically inert
- Often used as an excellent release surface on packaging equipment and heat sealing machines
- One side has a acrylic pressure sensitive adhesive and the other side offers low coefficient of friction PTFE film, which is thin and conformable
- Available with or without a liner
- Temperature rating of -100 to 350 °F
Applications
- For Roll Coverings on Plastic Extruders, Guide Rails and Angle Bars in Graphic Arts Industry, High Temperature Coil and Capacitor Wrapping, Composite Bonding, Masking and Conveyor Release Linings
General Information
| Item Name | Film Tape |
| Series | 2042-5 |
General Features
| Type | Skived |
| Shelf Life | 6 Months |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | PTFE |
| Color | Gray |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Tensile Strength | 30 lb/Inch |
Electrical Properties
| Dielectric Strength | 13500 V |
Physical Properties
| Elongation | 400% |
| Width | 1 Inch |
| Length | 9 Yard |
| Thickness | 6.5 mil |
Environmental Condition
| Resists | Chemical |
| Temperature Rating | 350 °F |
Supporting Information
| Applicable Materials | Steel |
