MFR #:51245
EIS #:PH22-51245
MFR #:51245
EIS #:PH22-51245

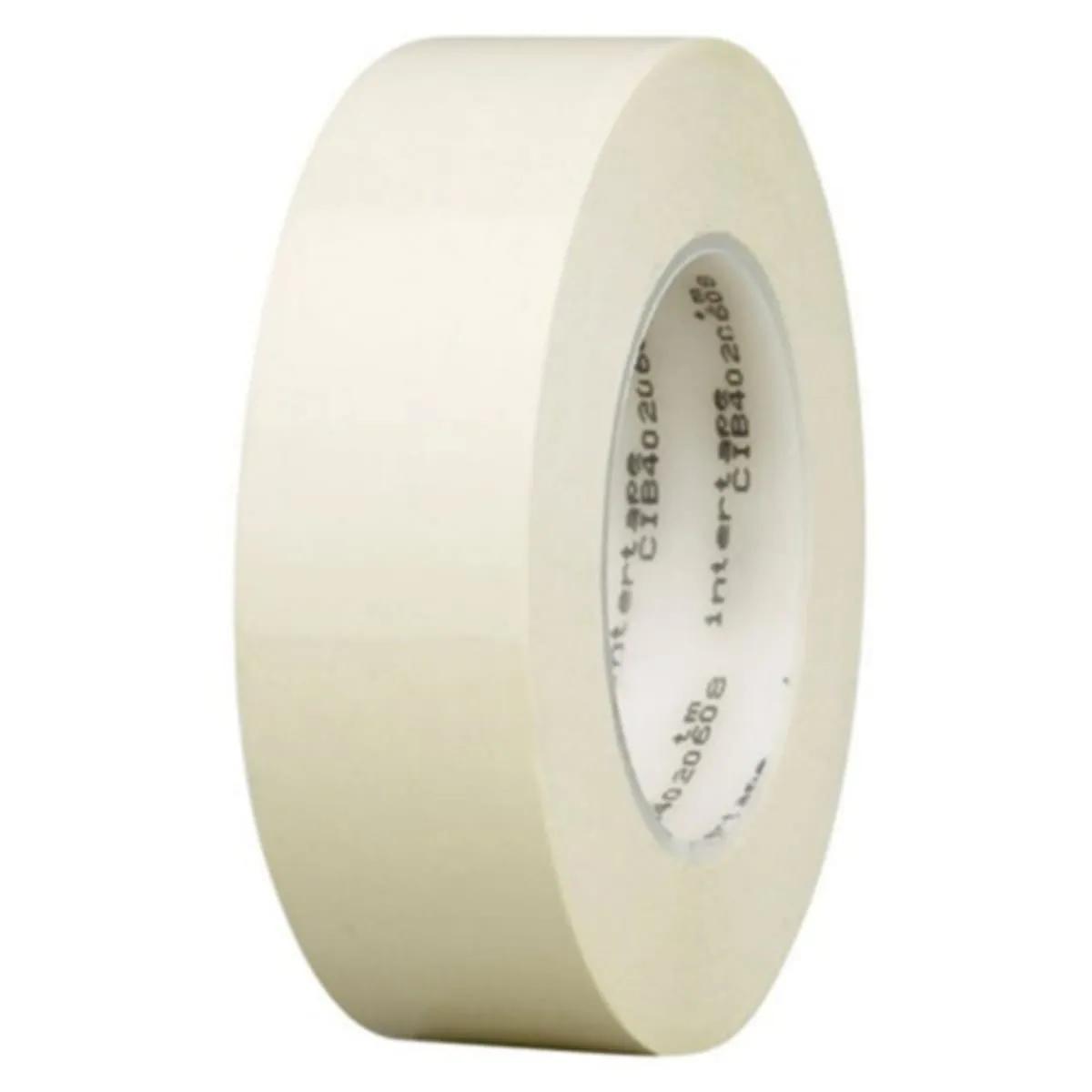

IPG polyester laminates provide excellent bulk and stiffness in an easy-to-tear product. They're available with acrylic adhesives for performance in higher temperature environments. Polyester/non-woven laminates are puncture resistant and highly conformable. - The combination of polyester film and polyester non-woven materials can be used on a wide variety of electrical applications. Multi-purpose tape for applications which require a combination of tear and puncture resistance, high tensile strength with elongation and excellent dielectric strength.
$10.44
Select from the options below
IPG polyester laminates provide excellent bulk and stiffness in an easy-to-tear product. They're available with acrylic adhesives for performance in higher temperature environments. Polyester/non-woven laminates are puncture resistant and highly conformable. - The combination of polyester film and polyester non-woven materials can be used on a wide variety of electrical applications. Multi-purpose tape for applications which require a combination of tear and puncture resistance, high tensile strength with elongation and excellent dielectric strength.
Product Options
Showing 1 out of 1 options
Width: 0.5 Inch | EIS Part #: 5124500X.5 | $ / Roll |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameElectrical Tape
Trade NameInter Tape
Series51245
General Features
Shelf Life24 Months
Design & Construction
Backing MaterialPolyester/Non-Woven
ColorNatural
Applicable MaterialSteel
Adhesive TypeThermosetting Rubber
Performance Details
Tensile Strength31.5 lb/Inch
Adhesive Strength85 oz/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength5 kV
Physical Properties
Length90 Yard
Thickness5.3 mil
Width-
Core Size3 Inch
Elongation50%
Environmental Condition
Temperature Rating130 °C
ResistsSolvent, Moisture
Supporting Information
Applicable MaterialsSteel
Features
- Excellent storage stability
- 10^5 Mohm insulation resistance
Applications
- For High Volume Coil Wrapping Applications, Ground and Barrier Insulation, Outer Protective Wrap for Bobbin Applications, Coil End Insulation Anchoring Leads and Terminal Board Pads
