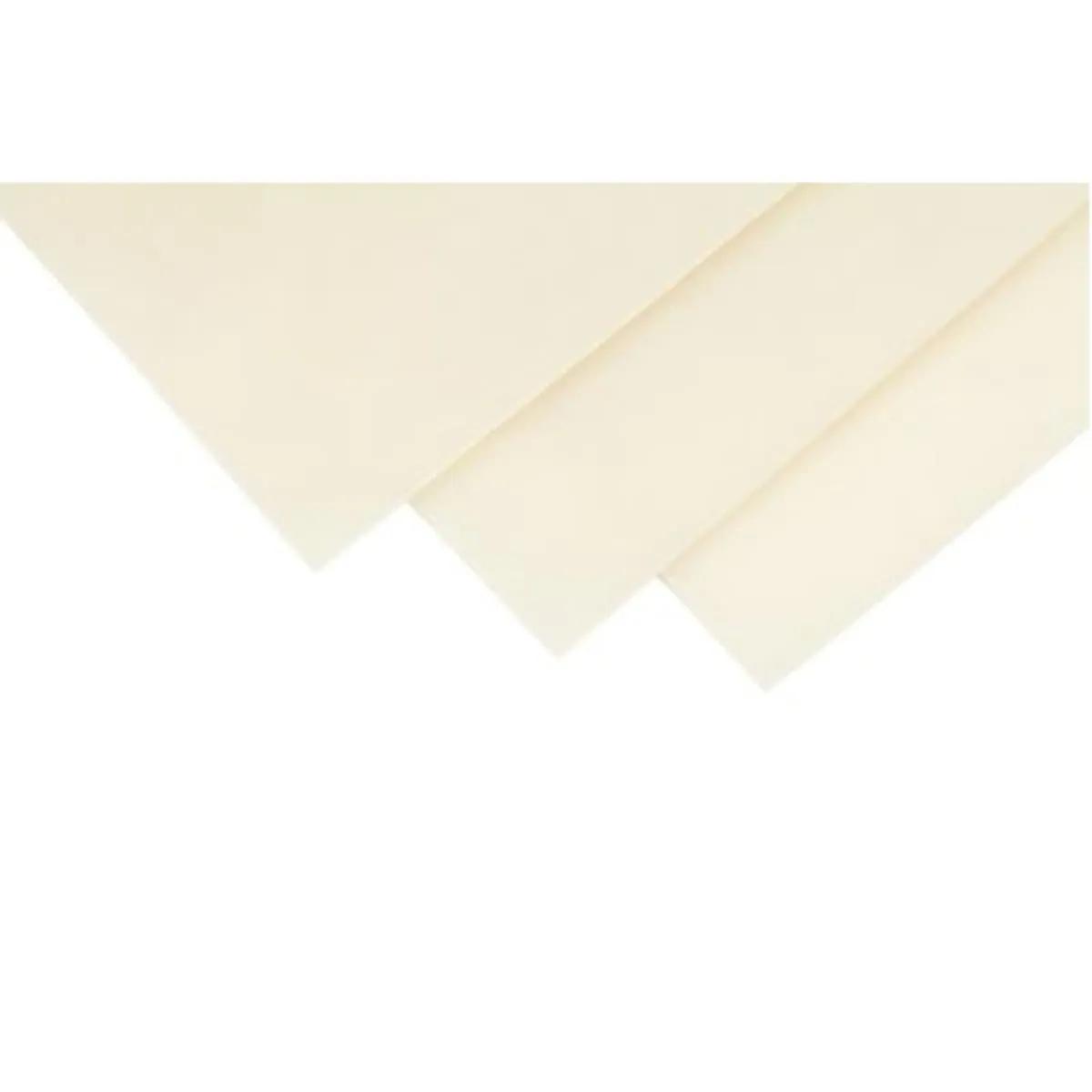

3M TufQuin™ TF Natural Duplex Hybrid Electrical Insulation Paper Sheet, 7 Mil x 36" x 36", MFR ID 7100178392
EIS #:TUFQUINTF5202
Series #:TufQuin Hybrid™ TF-SHT
UPC #:50051138983388
EIS #:TUFQUINTF5202
Series #:TufQuin Hybrid™ TF-SHT
UPC #:50051138983388
Available to Order
Min Qty:1
|Qty Increment:1
It is suitable for Class 200(N) electrical insulation systems and 3M UL Recognized Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant.
3M™ TufQuin™ TF Inorganic Hybrid Insulating Paper-Polyester Laminate. This is a 2-ply composite of TufQuin bonded on one side with PET film for high-temperature electrical insulation applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. Applications include slot cell, phase, and wedge insulation in motors and generators, and ground and layer insulation in dry-type transformers. TF laminates are flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption.
$12.39 / Sheet
Min Qty:1
|Qty Increment:1
It is suitable for Class 200(N) electrical insulation systems and 3M UL Recognized Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant.
3M™ TufQuin™ TF Inorganic Hybrid Insulating Paper-Polyester Laminate. This is a 2-ply composite of TufQuin bonded on one side with PET film for high-temperature electrical insulation applications. Qualified for use in electrical insulation systems up to Class 200(N) per UL 1446 and IEC Std. 60085, CSA Component Acceptance at 200 °C. Applications include slot cell, phase, and wedge insulation in motors and generators, and ground and layer insulation in dry-type transformers. TF laminates are flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameElectrical Insulation Paper
Trade NameTufQuin™
SeriesTufQuin Hybrid™ TF-SHT
General Features
TypeDuplex, Hybrid
Design & Construction
AdhesiveNo
ColorNatural
Physical Properties
Length36 Inch
Thickness7 mil
Width36 Inch
Environmental Condition
Temperature Rating200 °C
Features
- TFT laminates are flexible, conformable materials with high tensile strength, excellent tear resistance, and low moisture absorption
- The inorganic content in the TufQuin™ paper offers high thermal conductivity, long-term voltage endurance, and resistance to partial discharge (corona) that helps TFT laminates withstand damage from voltage spikes
- The polyester film reinforcement provides stiffness, high mechanical strength, and resistance to tear
- TFT laminates are compatible with commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics
- 5-2 laminate construction
Applications
- Applications Include Slot Cell, Phase, and Wedge Insulation in Motors and Generators, and Ground and Layer Insulation in Dry-Type Transformers. TF Laminates are Well-Suited for Automatic Insertion Applications, as Well as Heavy-Duty Winding Applications
