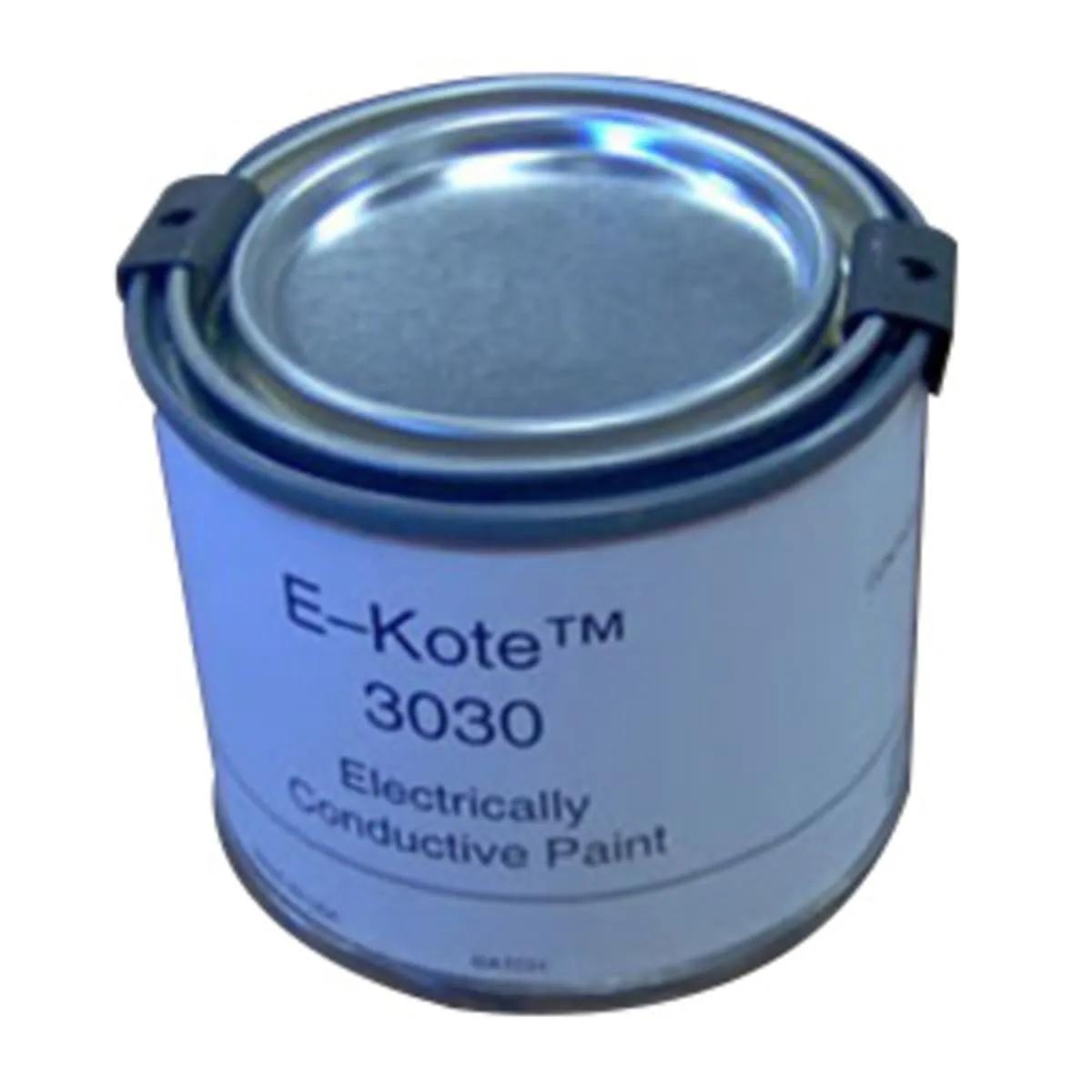

E-Kote 3030 is a silver-filled electrically conductive synthetic coating with a thermoplastic base. It sets up by solvent evaporation to form a hard, tough film which may be soldered by using conventional tin-lead solders. E-Kote 3030 may be applied by dipping, brushing or silk-screening. - Viscosity may be reduced as required by thinning with PM acetate. Typical applications for E-Kote 3030 include shielding, printed circuitry and preparation of non-solderable surfaces for soldering.
$228.87
- $789.62
Select from the options below
E-Kote 3030 is a silver-filled electrically conductive synthetic coating with a thermoplastic base. It sets up by solvent evaporation to form a hard, tough film which may be soldered by using conventional tin-lead solders. E-Kote 3030 may be applied by dipping, brushing or silk-screening. - Viscosity may be reduced as required by thinning with PM acetate. Typical applications for E-Kote 3030 include shielding, printed circuitry and preparation of non-solderable surfaces for soldering.
Product Options
Showing 2 out of 2 options
Container Size: 3 oz | EIS Part #: EKOTE30303OZ | $ / each Pack: 6/Carton | ||
Container Size: 16 oz | EIS Part #: EKOTE303016OZ | $ / Ounce Pack: 64/Carton |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameConductive Coating
Trade NameE-Kote®
Series3030
General Features
Shelf Life12 Months
StandardsOSHA Approved, 29 CFR 1910.1200 Certified
Storage TemperatureBelow 30 °C
TypeSynthetic
Design & Construction
ColorSilver
FormLiquid
Coverage5 sq-ft/oz
Performance Details
Application Time15 sec - 30 min
Flame RetardantYes
Shear StrengthUp to 300 psi
Evaporation Rate1.9
Full Cure Time16 hr at 25 °C, 30 min at 175 °C
Open Time1 - 15 min
Chemical Properties
CompositionAcrylic
Specific Gravity1.79
Viscosity700 cP
VOC51%
Physical Properties
Density0.782g/mL
Odor/ScentFruity
Supporting Information
Applicable MaterialsShielding, Printed Circuitry and Preparation of Non-Solderable Surfaces for Soldering
Features
- Versatile adhesive bonds a wide range of lightweight materials
- Fast, aggressive tack and low soak-in eliminates clamping and dry time
- Extended bond time allows 15 sec - 30 min after application before attaching surfaces
- Forms strong bonds with paper, cardboard, fabric, cushion foam, plastic, metal, wood and more
- Home improvement and repair projects
- Attaching fiberglass insulation and drywall corner beads
- Bonding thin films, foils and fabrics
- Scrapbooking, picture framing and mounting presentations (photo safe)
Applications
- For Shielding, Printed Circuitry and Preparation of Non-Solderable Surfaces
