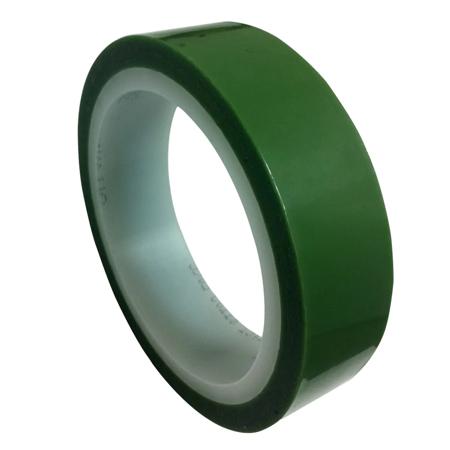

3M 851 Polyester Circuit Plating Tape

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:851

EIS #:PH22-851

MFR #:851

EIS #:PH22-851

0
0
3M circuit plating tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards. - 3M circuit plating tape 851 is a green polyester film tape with a unique conformable adhesive for printed circuit board masking during electroplating. Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers.
$19.91
 - $90.30
Select from the options below
0
0
3M circuit plating tape 851 with polyester film and blended silicone and rubber adhesive used for PCB masking and other high temperature applications. Thick adhesive coating. Specially designed adhesive that generally performs better when no ovens are used to heat tape and boards. - 3M circuit plating tape 851 is a green polyester film tape with a unique conformable adhesive for printed circuit board masking during electroplating. Thick adhesive coating reduces undercutting because adhesive blocks out solutions between fingers.

Product Options

Showing 6 out of 6 options
The image shown is representative of the product family and may not specifically be the individual item.
Length:
72 Yard
Width:
2 Inch
EIS Part #:
3M851X2
$ / Roll
Pack: 24/Case
The image shown is representative of the product family and may not specifically be the individual item.
Length:
72 Yard
Width:
1.5 Inch
EIS Part #:
3M851X1.5
$ / Roll
Pack: 24/Case
The image shown is representative of the product family and may not specifically be the individual item.
Length:
72 Yard
Width:
1 Inch
EIS Part #:
3M851X1
$ / Roll
Pack: 36/Case
The image shown is representative of the product family and may not specifically be the individual item.
Length:
144 Yard
Width:
0.75 Inch
EIS Part #:
3M851X.75A
$ / Roll
Pack: 12/Case
The image shown is representative of the product family and may not specifically be the individual item.
Length:
72 Yard
Width:
0.5 Inch
EIS Part #:
3M851X.5
$ / Roll
Pack: 72/Case
The image shown is representative of the product family and may not specifically be the individual item.
Length:
72 Yard
Width:
0.25 Inch
EIS Part #:
3M851X.25
$ / each

Attributes

General Information
Item NameCircuit Plating Tape
Series851
General Features
Shelf Life18 Months
Design & Construction
Adhesive TypeSilicone Rubber Blend
Applicable MaterialStainless Steel
Backing MaterialPolyester
ColorTranslucent Green
Performance Details
Adhesive Strength29 oz/Inch
Tensile Strength26.8 lb/Inch
Physical Properties
Core Size3 Inch
Elongation124%
Length72 Yard
Thickness3.6 mil
Width0.250 Inch
Environmental Condition
Temperature Rating155 °C
Supporting Information
Applicable MaterialsStainless Steel
