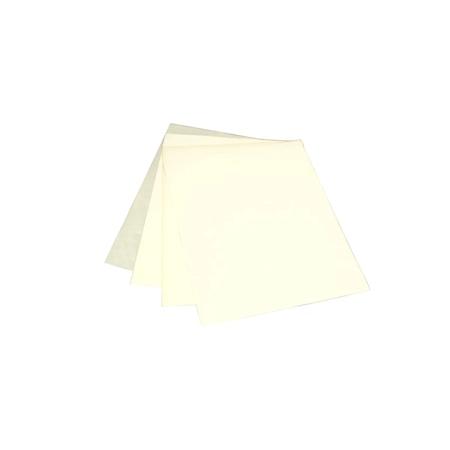

3M ThermaVolt® TVFTV Calendered Inorganic Insulating Paper Laminate Roll
- MFR #:ThermaVolt® TVFTV
- EIS #:PH21-ThermaVolt TVFTV
- Series #:ThermaVolt® TVFTV
- MFR #:ThermaVolt® TVFTV
- EIS #:PH21-ThermaVolt TVFTV
- Series #:ThermaVolt® TVFTV
3M ThermaVolt TVFTV Calendered Inorganic Insulating Paper Laminate, Roll Configuration. - ThermaVolt TVFTV calendered Inorganic Insulating Paper Laminates are inorganic-based calendered paper combined with PET film for high-temperature electrical insulation applications.
$28.98
- $66.06
Select from the options below
3M ThermaVolt TVFTV Calendered Inorganic Insulating Paper Laminate, Roll Configuration. - ThermaVolt TVFTV calendered Inorganic Insulating Paper Laminates are inorganic-based calendered paper combined with PET film for high-temperature electrical insulation applications.
Product Options
Showing 1 out of 1 options
 | Length: 115 Yard | Thickness: 28 mil | EIS Part #: TVFTV7147X36 | $ / Square YD |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameCalendered Inorganic Insulating Paper Laminate
Trade NameThermaVolt®
SeriesThermaVolt® TVFTV
Design & Construction
Insulation TypeClass R
Performance Details
Moisture Absorption<1%
Tensile Strength327 lb/Inch
Physical Properties
Density1.5 g/cc
Elongation4% (MD), 6% (CD)
Width36 Inch
Features
- The inorganic content in ThermaVolt papers offers excellent thermal and dielectric stability, as well as long-term voltage endurance and low moisture absorption
- The calendering process yields a densified paper with high dielectric breakdown resistance and excellent thermal conductivity and the PET film enhaces the mechanical strength of the paper
- ThermaVolt TVF and TVFTV laminates are compatible with most commonly used impregnating varnishes and resins, and are easily impregnated, further enhancing thermal conductivity and coil bonding characteristics.
- Tensile Strength: 327 lb/Inch (MD), 269 lb/Inch (CD)
Applications
- Ground and Layer Insulation in Dry-type Transformers
- Interwinding Insulation in Strip-Wound Coils and Electromagnet Coils
- Spiral-Wound Core Tubes
