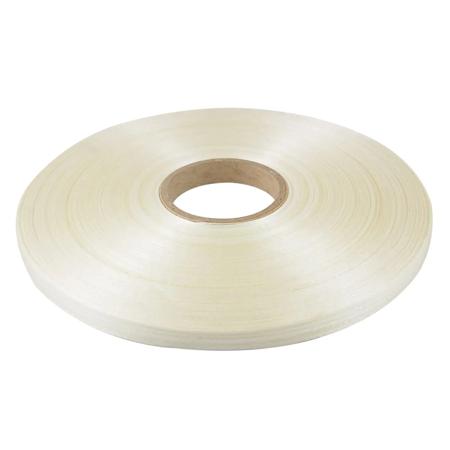

Von Roll Poly Glas® 76870 Polyester Banding Tape
- MFR #76870
- EIS #PH22-76870
$104.59 - $1,313.54
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 250 Yard | 1 Inch | $ / Roll | |
| 500 Yard | 0.25 Inch | $ / Roll | |
| 100 Yard | 1 Inch | $ / Roll | |
| 250 Yard | 0.5 Inch | $ / Roll | |
| 1500 Yard | 0.75 Inch | $ / Roll | |
| 250 Yard | 0.375 Inch | $ / Roll |
Poly Glas 76870 is an electrical grade, moisture resistant, parallel glass banding tape, impregnated with an uncured, high temperature, modified polyester resin. During cure, resin flow fills voids and air spaces, producing a homogeneous laminate, with a smooth resin rich surface. - This smooth surface reduces the collection of dirt which might otherwise lead to tracking failure. The thermosetting modified polyester resin provides excellent arc resistance and minimizes flashover.
Features
- Special 220 °C formulation designed for high temperature banding applications
- Moisture resistant
- Ideal for DC armatures and commutator assemblies
- High tensile strength
- Can be applied with conventional banding equipment
Applications
- For Tying Cores, Coils and Columns of Dry and Oil Transformers
General Information
| Item Name | Banding Tape |
| Trade Name | Poly Glas® |
| Series | 76870 |
General Features
| Shelf Life | 6 Months |
| Storage Temperature | 25 °C |
Design & Construction
| Backing Material | Polyester |
Performance Details
| Tensile Strength | 200 psi |
Physical Properties
| Thickness | 11.5 mil |
Environmental Condition
| Resists | Moisture |
| Temperature Rating | 220 °C |
