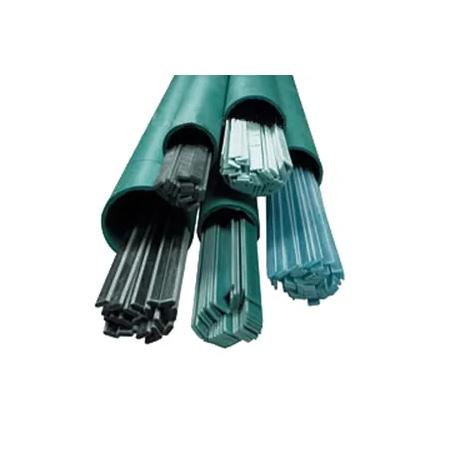

Gund Fig 1 G-9 Melamine Gray Wedge, MFR ID WGEG9_Fig 1
- MFR #WGEG9_Fig 1
- EIS #PH21-WGEG9_Fig 1
- Series #WGEG9_Fig 1
$3.12 - $548.34
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 0.072 Inch | 0.3 Inch | $ / Foot Pack: 102 ft/Tube | |
| 0.072 Inch | 0.317 Inch | $ / Foot Pack: 102 ft/Tube | |
| 0.072 Inch | 0.29 Inch | $ / Foot Pack: 102 ft/Tube | |
| 0.072 Inch | 0.31 Inch | $ / Foot Pack: 102 ft/Tube | |
| 0.072 Inch | 0.325 Inch | $ / Foot Pack: 102 ft/Tube | |
| 0.072 Inch | 0.32 Inch | $ / Foot Pack: 102 ft/Tube |
NEMA Grade G-9 material is a glass based laminate with a melamine resin binder. Glass melamine insulating materials offer high mechanical strength and arc resistance. - NEMA Grade G-9 find application as electric furnace insulation, circuit breaker parts, switchboard panels, and arc barriers. Also available in tubing.
Features
- An arc and flame resistance material with outstanding electric properties
- High-temperature rated melamine topsticks recommended to be placed at top of slots to hold wire and insulation place
- Dielectric Strength: 450 V/Mil (0.062 Inch A), 400 V/Mil (B)
- Flexural Strength: 61600 psi (0.062 Inch LW), 51100 psi (0.062 Inch CW)
- Tensile Strength: 44000 psi (LW), 34000 psi (CW)
- Breakdown Voltage: 55 - 65kV
Applications
- Electric Furnace Insulation
- Circuit Breaker Parts
- Switchboard Panels
- Arc Barriers
General Information
| Item Name | Wedge |
| Series | WGEG9_Fig 1 |
General Features
| Type | Fig 1 |
Design & Construction
| Grade | NEMA G-9 |
| Material | Melamine |
Performance Details
| Compression Strength | 70000 psi |
| Flexural Strength | 61600 psi |
| Tensile Strength | 44000 psi |
Electrical Properties
| Breakdown Voltage | 65 kV |
| Dielectric Strength | 450 V/mil |
Physical Properties
| Arc Resistance | 185 sec |
| Length | 36 Inch |
