$74.84 / Roll
Pack: 20/Case
Available to Order
Min QTY1QTY Increment1
more info
Pack20/CaseProducts You May Also Like

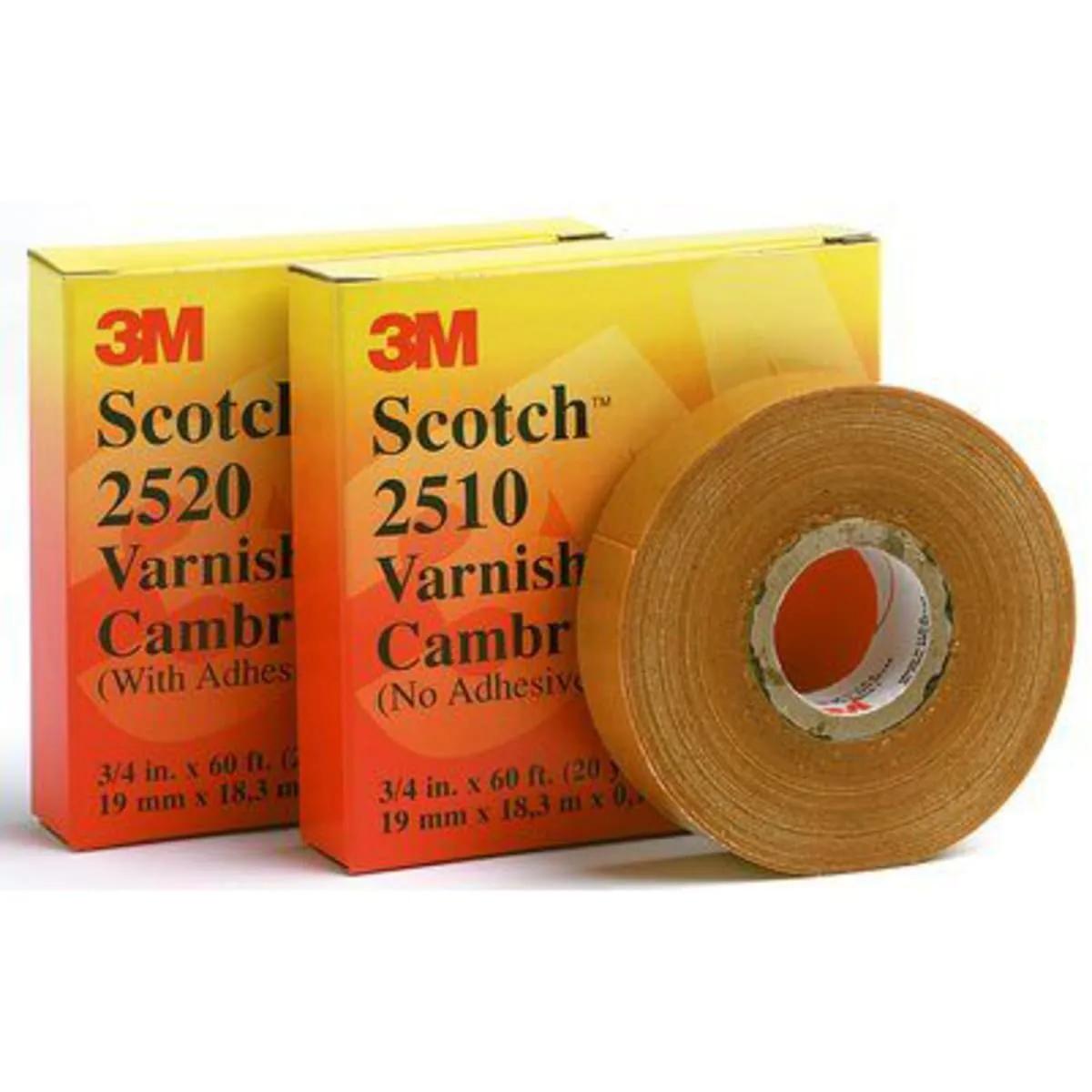

Scotch® Tape 2520 is an 8 mil thick, highly conformable, premium grade tape that's suitable for bus bars, motor leads and service drop connections. It withstands temperatures up to 221 °F (105 °C). - Scotch® Tape 2520 is an abrasion resistant tape that features excellent dielectric strength and is used in areas where mechanical protection and puncture resistance is critical. The pressure sensitive, rubber resin adhesive holds the tape in place even after application. It has woven cotton, cambric fabric backing. This fabric is coated and oil primed with electrical insulating varnish. RoHS 2011/65/EU Compliant.
Features
- Straight-cut woven cotton cambric fabric, oil primed and coated with a high-grade yellow electrical insulating varnish
- Flexible, electrically insulating and moisture resistant with a smooth finish
- Excellent dielectric strength with high puncture and cut through resistance
- Electrical properties stable up to 220 °F
- Pressure sensitive adhesive holds tape in position after application
- 8 Mil thickness
- Scotch varnished cambric tapes 2510 and 2520 data sheet carefully to ensure this product meets your application requirements
- For adhesive strength see TDS
Applications
- For Insulating Bus Bars, Motor Leads (For Re-Entry) and Service Drop Connections
General Information
| Item Name | Varnished Cambric Tape |
| Trade Name | Scotch® |
| Series | 2520 |
General Features
| Type | Premium |
| Shelf Life | 60 Months |
| Storage Temperature | 70 °F |
Design & Construction
| Adhesive Type | Rubber |
| Backing Material | Cotton |
| Color | Yellow |
Performance Details
| Breaking Strength | 50 lb/Inch |
| Tensile Strength | 50 lb/Inch |
Electrical Properties
| Dielectric Strength | 800 V/mil |
Physical Properties
| Core Size | 3 Inch |
| Width | 0.75 Inch |
| Length | 60 Inch |
| Thickness | 8 Mil |
Environmental Condition
| Resists | Moisture, Oil, Solvent |
| Temperature Rating | 105 °C |
