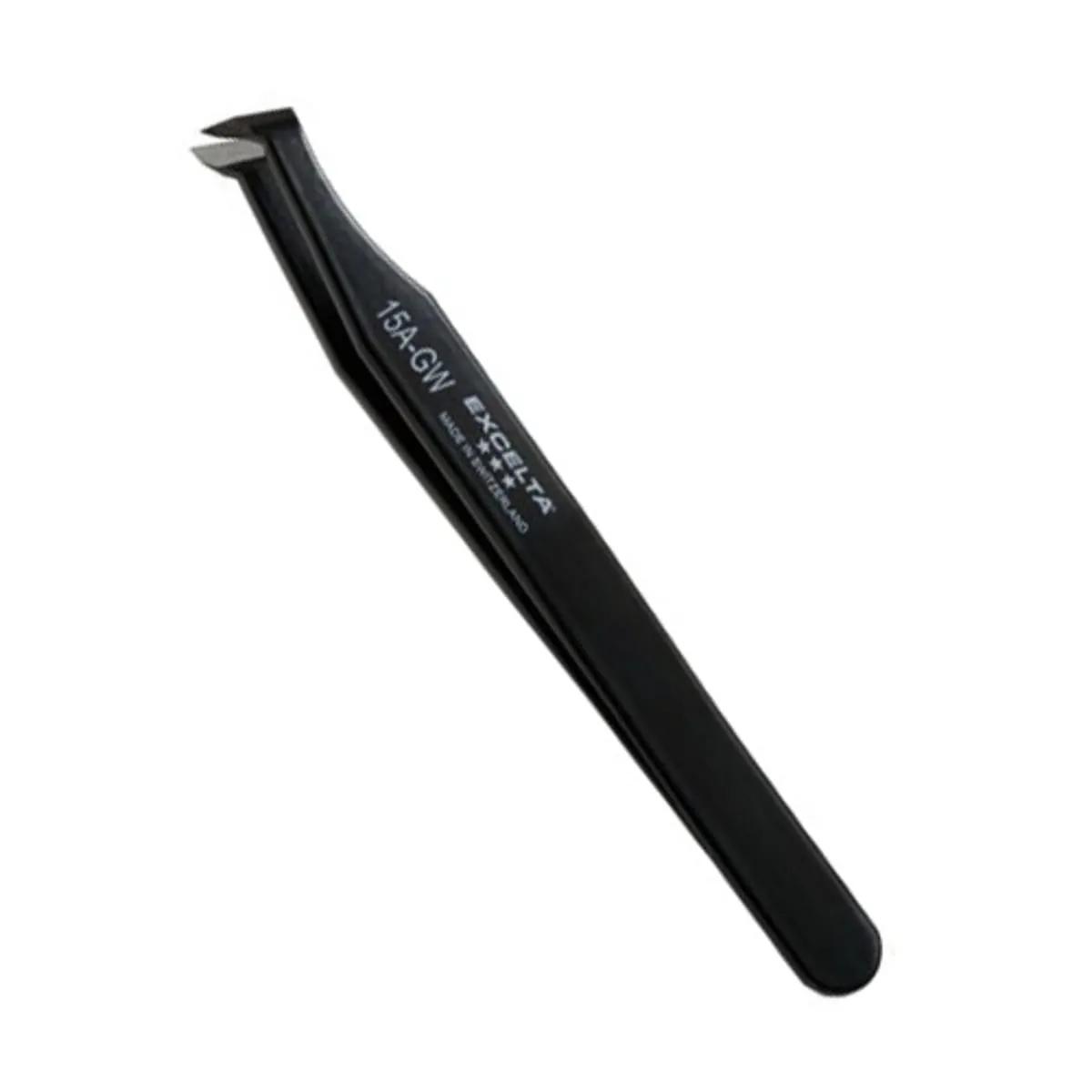

Excelta 15A-GW High Precision Cutting Tweezer, 4-1/2" L x 0.393" W x 0.1" T, Epoxy Coated Carbon Steel
- MFR #15A-GW
- EIS #15A-GW
- UPC #662847014918
$168.68 / each
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
The 15A-GW angulated tip cutting tweezer is ideal for general purpose cutting of soft wire. This tool is considered a tip cutter in that the blades meet most predominately at the tip. The coating is static dissipative (10^5 - 10^6 Ohm/sq). - All of the force applied to the tweezer gets transferred to the very tip of the tool. It is made of carbon steel with flame hardened edges. It is epoxy coated to prevent oxidation.
Features
- 3 Star Quality, Made in Switzerland
- Tip Size: 0.215 Inch W x 0.375 Inch T
Applications
Designed for general purpose cutting of small wires or flashing. This tool is epoxy coated to prevent oxidation.
General Information
| Item Name | Tweezer |
| Trade Name | Excelta |
General Features
| Net Weight | 1.5 oz |
| Type | High Precision, Cutting |
Design & Construction
| Angle | 70 degrees |
| Cutting Angle | 70 deg |
| Handle Type | Epoxy Coated Grips |
| Material | Carbon Steel |
| Pattern Number | 15A |
| Point Type | Angled, Fine |
| Tip Size | 0.215 inch |
| Cutting Capacity | 0.01 Inch |
| Cut Type | Maximum Flush |
| Shape | Angulated |
Performance Details
| Precision Class | 3 Star |
Electrical Properties
| Resistance | 10⁵-10⁶ ohms/sq |
Physical Properties
| Length | 4.5 Inch |
| Thickness | 0.1 Inch |
| Width | 0.393 Inch |
| Cutting Edge Length | 0.375 inch |
| Overall Length | 4.5 inch |
Supporting Information
| OEM ID | 15A-GW |
| Compatible Desoldering Tool | PH1813111101 - Tweezers |
