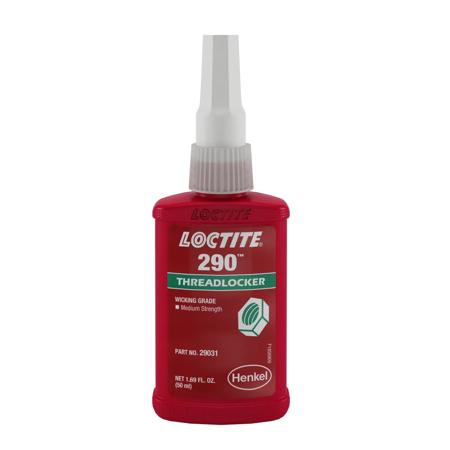

The image shown is representative of the product family and may not specifically be the individual item.
0

Loctite 290 Medium-High Strength Threadlocker

  • MFR #290
  • EIS #PH11-LOC-290
  • Series #290
$22.20 - $199.04
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--

Loctite 290 is designed for the locking and sealing of threaded fasteners. Because of its low viscosity and capillary action, the product wicks between engaged threads and eliminates the need to disassemble prior to application. The product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from shock and vibration. The product can also fill porosity in welds, castings and powdered metal parts. - Loctite 290 wicking grade Mil-Spec medium-high strength green threadlocker is a medium strength wicking threadlocker for pre-assembled bolts up to 1/2 Inch (12 mm). Penetrates threads by capillary action. Secures set screws and other assemblies after settings are completed. Seals welds and porous metal parts.

General Information

Item NameThreadlocker

Series290

General Features

TypeMedium-High Strength
StandardsOSHA, ASTM-D5363 Approved, MIL-S-46163A, NSF P1, 29 CFR 1910.1200 Certified, CFIA Listed, RoHS Compliant
Storage Temperature8 to 21 °C

Design & Construction

ColorGreen
Cure TypeAnaerobic Cure, Activator
FormLiquid

Performance Details

Application Time20 min
Full Cure Time24 hr at 25 °C
Shear Strength>/=780 psi
Tensile Strength90 psi

Chemical Properties

CompositionDimethacrylate Ester
Specific Gravity1.07
Viscosity20 - 55 cP
VOC22.1g/L

Physical Properties

Odor/ScentMild

Supporting Information

Applicable MaterialsMetals
