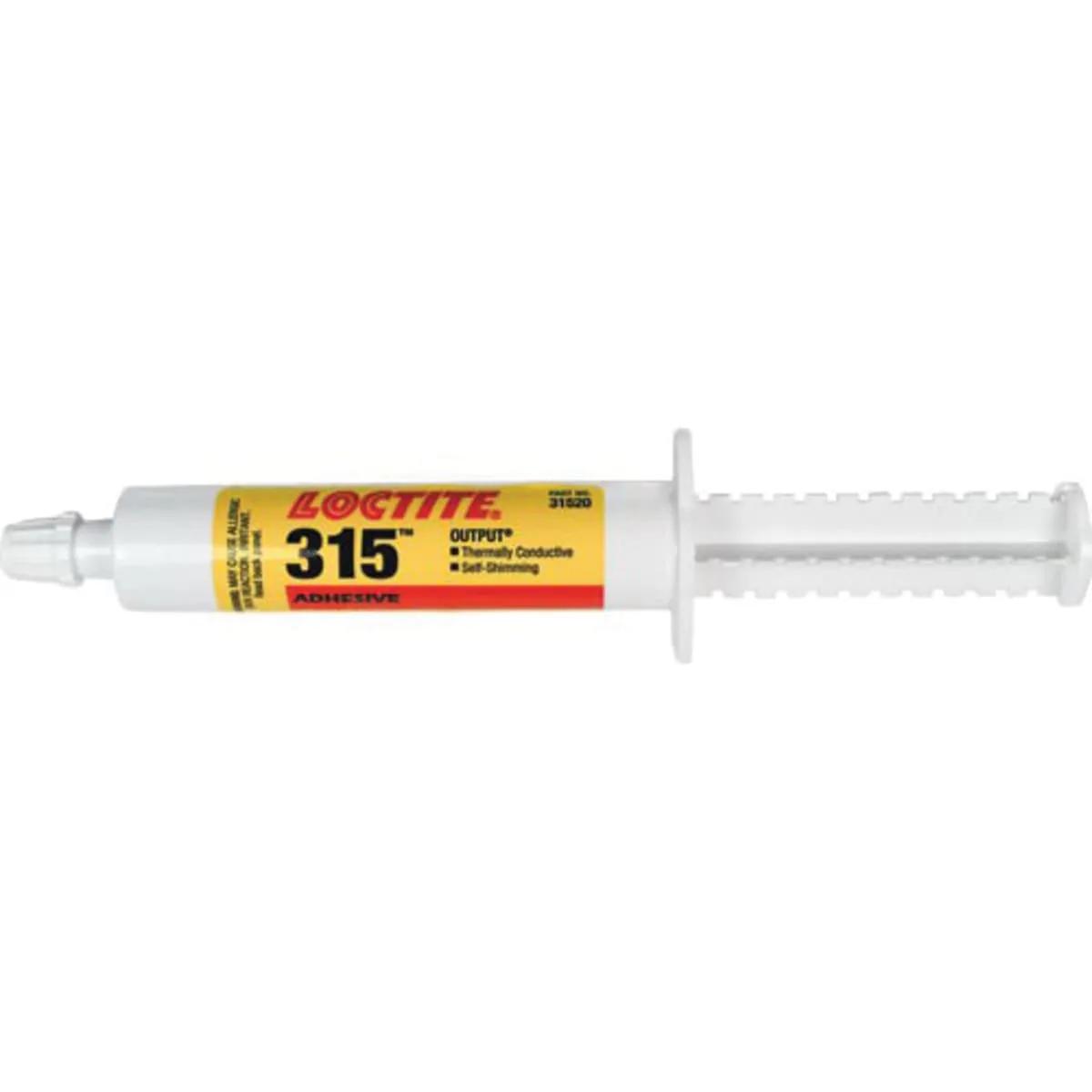

Loctite 315 Thermally Conductive Adhesive, 25mL Syringe, Blue, MFR ID 160799
- MFR #:160799
- EIS #:LOC31520
- Series #:315
- MFR #:160799
- EIS #:LOC31520
- Series #:315
Available to Order
Min Qty:1
|Qty Increment:1
Pack:10/Case
Loctite 315 is a self-shimming thermally conductive, one-part adhesive for bonding electrical components to heat sinks with an insulating gap. The high thermal conductivity provides excellent heat dissipation for thermally sensitive components, while the controlled strength permits field and service repair. The self-shimming property produces a consistent 5 - 6 Mil gap between the component and the heat sink. This gap results in electrical insulation while maintaining thermal conductivity.
$76.04 / each
Pack: 10/Case
Min Qty:1
|Qty Increment:1
Pack:10/Case
Loctite 315 is a self-shimming thermally conductive, one-part adhesive for bonding electrical components to heat sinks with an insulating gap. The high thermal conductivity provides excellent heat dissipation for thermally sensitive components, while the controlled strength permits field and service repair. The self-shimming property produces a consistent 5 - 6 Mil gap between the component and the heat sink. This gap results in electrical insulation while maintaining thermal conductivity.
- Attributes
- Applications
Attributes
General Information
Item NameThermally Conductive Adhesive
Trade NameHenkel
SeriesLOC-315
General Features
Shelf Life9 Months
Storage Temperature2 to 8 °C
Design & Construction
ColorBlue
Cure TypeRoom Temperature
FormPaste
Performance Details
Full Cure Time24 hr
Tensile Strength2180 psi
Chemical Properties
CompositionTough Acrylic
Specific Gravity1.6
Viscosity360000 - 850000 cP
Electrical Properties
Dielectric Strength26.7kV/mm
Physical Properties
Container Size25mL
Container TypeSyringe
Elongation1%
Odor/ScentCharacteristic
Applications
- For Bonding Transformers, Transistors and Other Heat Generating Electronic Components to Printed Circuit Board Assemblies or Heat Sinks
