JTEKT Bearings 32009JR - Cup/Cone Assembly -45 mm ID, 75 mm OD, 20 mm Width, MFR ID KOY-32009JR

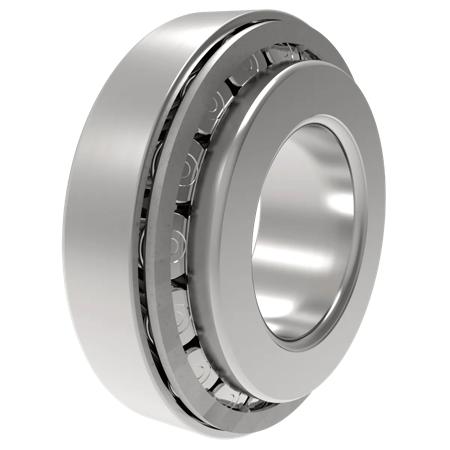

The image shown is representative of the product family and may not specifically be the individual item. 32009JR -Tapered Roller Bearings, Tapered Roller Bearings
  • MFR #:32009JR
  • EIS #:32009JR08
  • UPC #:605790358326
  • Midpoint #:KOY-32009JR
  • MFR #:32009JR
  • EIS #:32009JR08
  • UPC #:605790358326
  • Midpoint #:KOY-32009JR
Available to Order

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
32009JR -Tapered Roller Bearings, Tapered Roller Bearings
$55.47 / Piece

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
32009JR -Tapered Roller Bearings, Tapered Roller Bearings

Attributes

General Information

Item NameTapered Roller Bearings

Series32000

General Features

Net Weight0.78 lb

Design & Construction

Bore TypeRound
Cage MaterialSteel
Cage TypeRiveted
Lubrication TypeRust Preventative
MaterialCase Carburized Steel
Rolling ElementRoller
Rolling Element Material52100
Row TypeSingle row

Performance Details

Dynamic Load Capacity78.8 kn
Operating Temperature-54 to 121 °C
Precision ClassP0
Self AligningNo
Speed Rating5000 rpm (Grease) | 6600 rpm (Oil)
Static Load Capacity86.5 kn

Physical Properties

Bore Diameter45 mm
Outside Diameter75 mm
Outside Width0.6102 Inch
Overall Width0.7874 Inch
