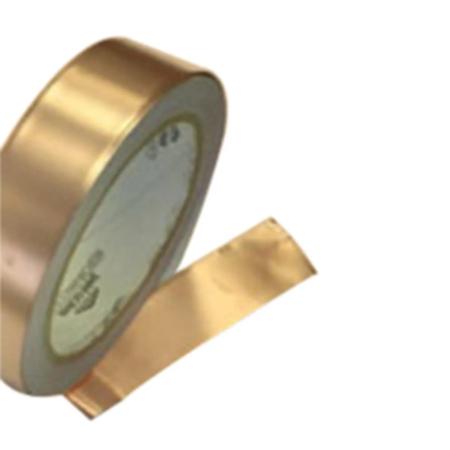

CHR C665 Smooth Copper Foil Tape
- MFR #C665
- EIS #PH22-C665
$40.90 - $177.67
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 0.5 Inch | $ / Roll |
Saint-Gobain copper C665 tape is designed for conductivity through the entire construction. The copper foil and acrylic adhesive are both electrically conductive and the release liner aids in die-cutting. - The EMI/RFI shielding seals components from radiating or leaking interference. Both tapes offer solvent resistance. Backing thickness of 0.0014 Inch.
Features
- Temperature rating of -40 to 250 °F
Applications
- For IC Chips, Electrical Cabinets, Cables Motors and Static Dissipation
General Information
| Item Name | Tape |
| Trade Name | Furon |
| Series | C665 |
General Features
| Type | Smooth |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Copper Foil |
| Color | Copper |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Flame Retardant | Yes |
| Tensile Strength | 70 lb/Inch |
Physical Properties
| Core Size | 3 Inch |
| Length | 36 Yard |
| Thickness | 3.5 mil |
Environmental Condition
| Temperature Rating | 250 °F |
Documents
No Documents Found
