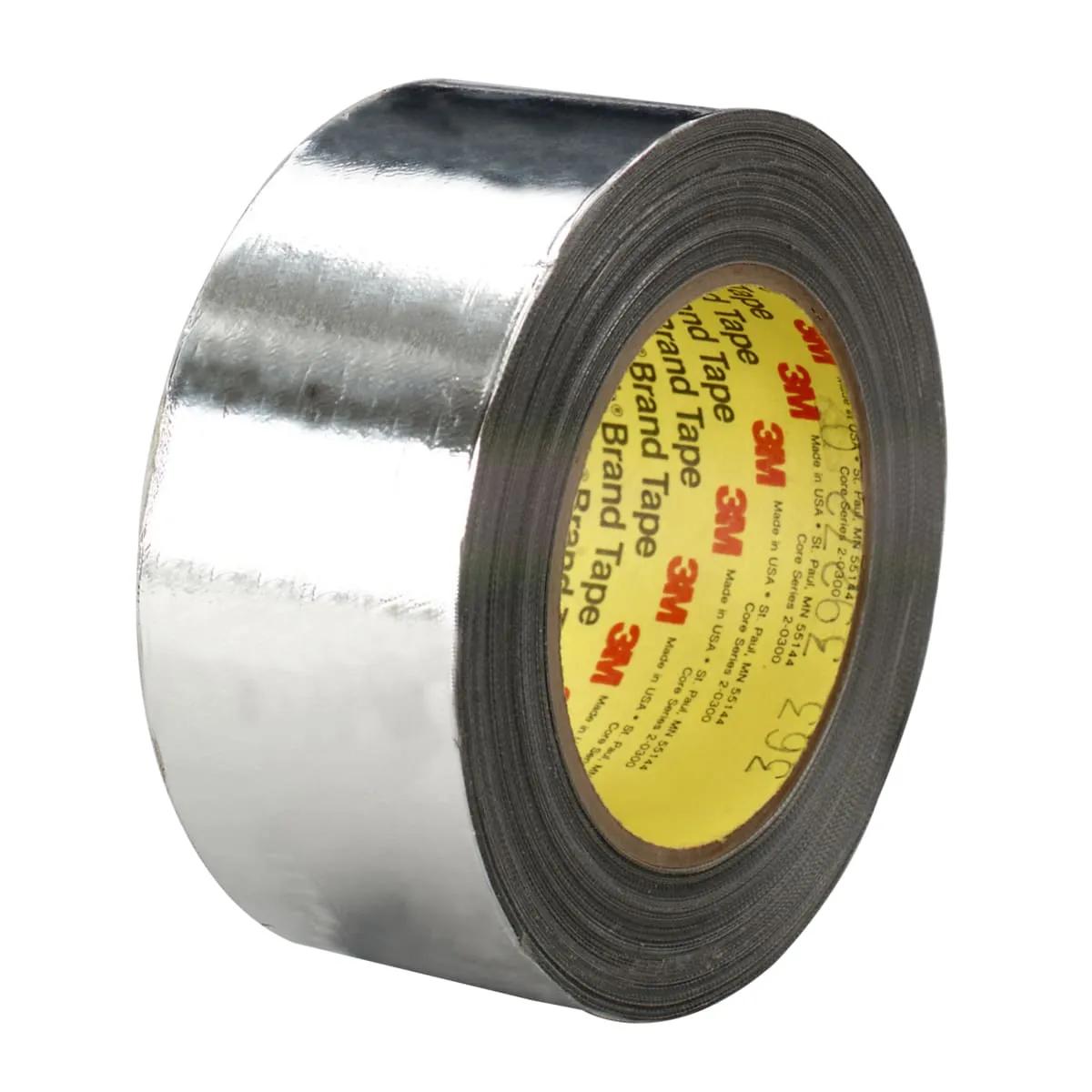

3M high temperature aluminum foil/glass cloth tape 363 is a strong and flexible tape with high tensile strength, puncture and tear resistance. With a pressure sensitive silicone adhesive, it adheres well to silicone surfaces and over irregular or uneven substrates. This tape is light and heat reflective, plus it resists flame, moisture, weather and UV degradation. Heat reflective wrap over insulation cables, instruments or other high temperature sensitive materials. - 3M high temperature aluminum foil/glass cloth tape 363 consists of an aluminum foil, glass cloth backing combined with a pressure sensitive silicone adhesive. Ideal for use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration. It is a chemical resistant, thermally conductive tape that performs consistently at temperatures ranging from -65 to 600 °F.
Select from the options below
3M high temperature aluminum foil/glass cloth tape 363 is a strong and flexible tape with high tensile strength, puncture and tear resistance. With a pressure sensitive silicone adhesive, it adheres well to silicone surfaces and over irregular or uneven substrates. This tape is light and heat reflective, plus it resists flame, moisture, weather and UV degradation. Heat reflective wrap over insulation cables, instruments or other high temperature sensitive materials. - 3M high temperature aluminum foil/glass cloth tape 363 consists of an aluminum foil, glass cloth backing combined with a pressure sensitive silicone adhesive. Ideal for use as a protective wrap for heat sensitive cables and other instruments exposed to movement and vibration. It is a chemical resistant, thermally conductive tape that performs consistently at temperatures ranging from -65 to 600 °F.
Product Options
Showing 2 out of 2 options
Width: 2 Inch | EIS Part #: 3M363X2 | $ / each Pack: 24/Case | ||
Width: 1 Inch | EIS Part #: 3M363X1 | $ / Roll Pack: 36 Roll/Case |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameTape
Series363
General Features
Shelf Life36 Months
Storage Temperature16 to 27 °C
TypeHigh Temperature
Design & Construction
Backing MaterialAluminum Foil/Glass Cloth
ColorNatural
Adhesive TypeSilicone
Performance Details
Tensile Strength135 lb/Inch
Adhesive Strength52 oz/Inch
Physical Properties
Length36 Yard
Thickness7.3 mil
Width1 Inch
Core Size3 Inch
Elongation7%
Environmental Condition
Temperature Rating600 °F
ResistsPuncture, Fracture, Tear
Features
- Ideal for industrial applications that will be exposed to movement and vibration
- Bundling wire harnesses
- High temperature/performance applications in the aerospace, automotive and industrial industries
- Can easily be die-cut into special sizes or shapes
- Light, flexible construction easily applied to a variety of irregular shapes
- Best results obtained when applied to a clean dry surface above 32 °F but can be applied at lower temperatures
- Temperature rating of -65 to 600 °F
Applications
- For Transportation, Specialty Vehicle, Metalworking, Automotive, Furniture, Military and Government, General Industrial, Electronics, Woodworking Industries
