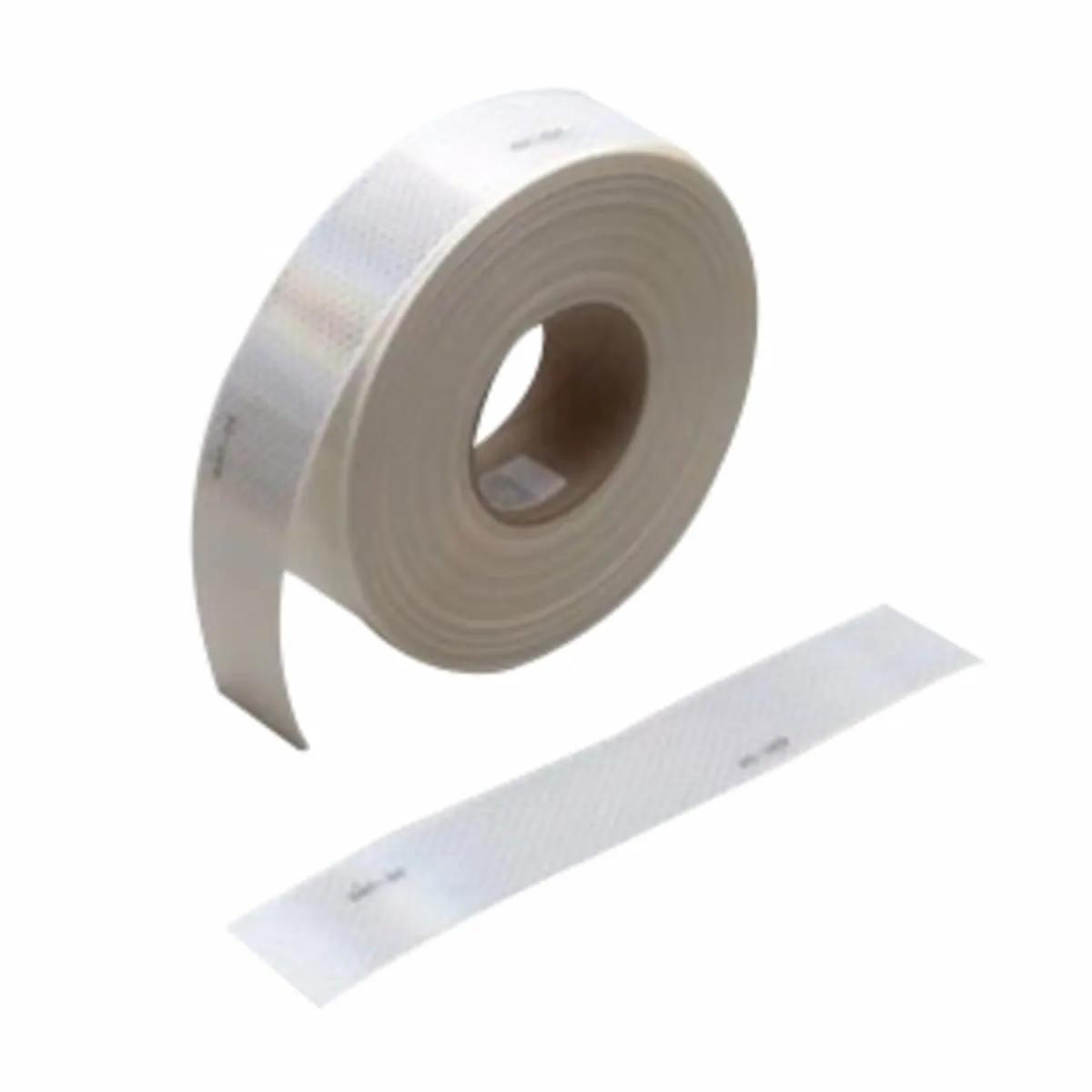

3M diamond grade conspicuity markings series 983 are highly retroreflective microprismatic markings designed to enhance the visibility of the sides and rear of vehicles. The reflective marking consists of prismatic lenses that are formed in a transparent, synthetic resin, sealed and backed with a pressure sensitive adhesive and clear polymeric liner. Diamond Grade conspicuity markings are highly durable providing up to ten years of field performance. - 3M's series 983 markings have excellent angularity which provides enhanced visibility for drivers. For warranty and product information on specific applications such as trucks and trailers, rail cars, school buses or emergency vehicles, please see the specific product bulletins. This product bulletin applies to applications other than trucks and trailers, rail cars, school buses or emergency vehicles.
Features
- Combined fluorescence and retroreflection provides 24 hr enhanced visibility and detection
- Fluorescence enhances visibility for improved safety
- Aggressive pressure sensitive adhesive
- Easy to remove liner
- Pre-sealed edges
- Non-metallic construction
Applications
- For Trucks and Trailers, Rail Cars, School Buses or Emergency Vehicles
General Information
| Item Name | Tape |
| Trade Name | Diamond Grade™ |
| Series | 983-10 |
General Features
| Shelf Life | 12 Months |
| Storage Temperature | 18 to 24 °C |
Design & Construction
| Adhesive Type | Synthetic Resin |
| Color | White |
Physical Properties
| Core Size | 3 Inch |
| Width | 1 Inch |
| Length | 50 Yard |
| Thickness | 18 mil |
Environmental Condition
| Resists | Chemical |
| Temperature Rating | 50 °F |
