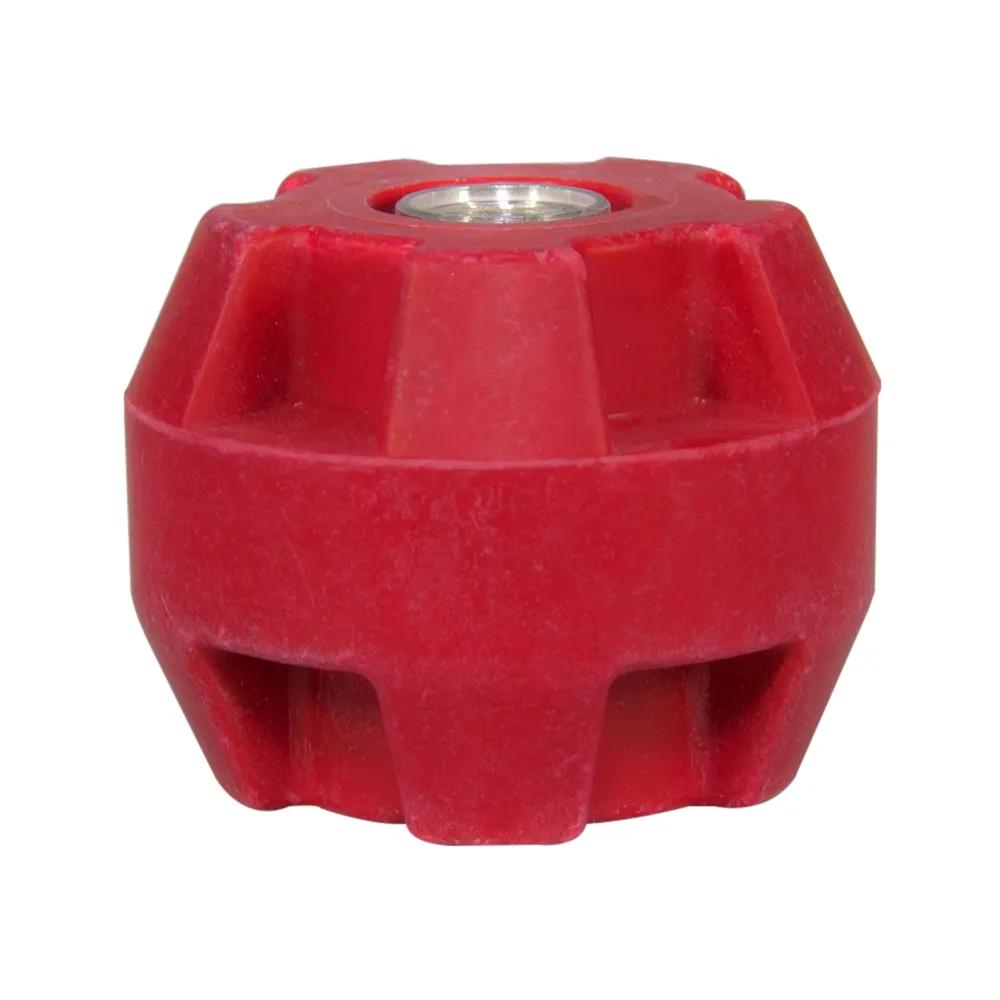

Mar-Bal Glastic® 1603 Standoff Insulator
- MFR #Glastic® 1603
- EIS #PH21-Glastic 1603
$11.38 - $948.59
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 3/8 - 16-3/8 Inch | $ / each Pack: 100/Pack | |
| M10 x 1.5 | $ / Piece more info |
Molded insulators have a higher heat resistance and a higher moisture resistance when compared to the regular plastic insulators. Hi-Pot tested to assure electrical reliability. - These molded insulators also have closer height tolerances and higher shatter resistance when compared to ceramic insulators.
Features
- Glastic standoff insulators are molded of underwriters laboratories incorporated® (UL) recognized flame resistant fiberglass-reinforced thermoset polyester molding compound
- They feature shatter resistance and closer height tolerances than commonly available in porcelain insulators
- Moisture and heat-resistance properties of glastic insulators are higher than those of conventional plastic insulators
- Insulators mounted within a suitable electrical cabinet are considered indoors even though the cabinet itself is outdoors
- An insulator will withstand its rated voltage continuously but industry standards or other specifications may require a different spacing from conductor to ground for a particular voltage
- Wet or dirty conditions may require derating an insulator
Applications
- Glastic Insulators are Primarily Intended to be Used Indoors or Inside a Suitable Enclosure
General Information
| Item Name | Standoff Insulator |
| Trade Name | Glastic® |
| Series | Glastic® 1603 |
Design & Construction
| Color | Red |
| Material | Polyester |
Performance Details
| Cantilever Strength | 1500 Inch-lb |
| Compression Strength | 20000 lb |
| Tensile Strength | 2000 lb |
| Torque Strength | 25 ft-lb |
| Track Resistance | 600 min |
Electrical Properties
| Voltage Rating | 600 V |
Physical Properties
| Arc Resistance | 180 sec |
| Creep Distance | 1.625 Inch |
| Height Tolerance | +/-0.015 Inch |
