JTEKT/KOYO
JTEKT/KOYO

JTEKT Bearings 22226RZW33C3 - 130 mm ID, 230 mm OD, 64 mm Width, Steel Cage, Straight Bore, C3 Internal Clearance, MFR ID KOY-22226RZW33C3

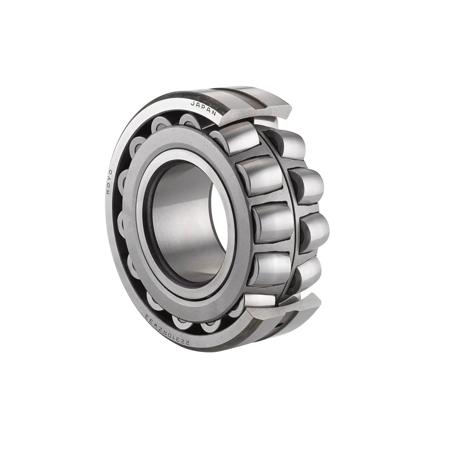

The image shown is representative of the product family and may not specifically be the individual item. 22226RZW33C3 -Spherical Roller Bearings, Spherical Roller Bearings
  • MFR #:22226RZW33C3
  • EIS #:22226RZW33C308
  • UPC #:605790353338
  • Midpoint #:KOY-22226RZW33C3
  • MFR #:22226RZW33C3
  • EIS #:22226RZW33C308
  • UPC #:605790353338
  • Midpoint #:KOY-22226RZW33C3
Available to Order

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
22226RZW33C3 -Spherical Roller Bearings, Spherical Roller Bearings
$765.55 / Piece

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
22226RZW33C3 -Spherical Roller Bearings, Spherical Roller Bearings

Attributes

General Information

Item NameSpherical Roller Bearings

Series22

General Features

Net Weight25.573 lb

Design & Construction

Bore TypeCylindrical
Cage MaterialSteel
Cage TypeRiveted
Lubrication TypeRust Preventative
Material52100
Retainer MaterialSteel
Retainer TypeRiveted
Rolling ElementSpherical Roller
Rolling Element Material52100
Row TypeDouble row

Performance Details

Dynamic Load Capacity821 kn
Operating Temperature-54 to 200 °C
Precision ClassP0
Self AligningYes
Speed Rating1900 rpm (Grease) | 2600 rpm (Oil)
Static Load Capacity914 kn

Physical Properties

Bore Diameter130 mm
Fillet Radius0.0984 Inch
Outside Diameter230 mm
Outside Width2.5197 Inch
Overall Width2.5197 Inch
Radial Internal ClearanceC3
