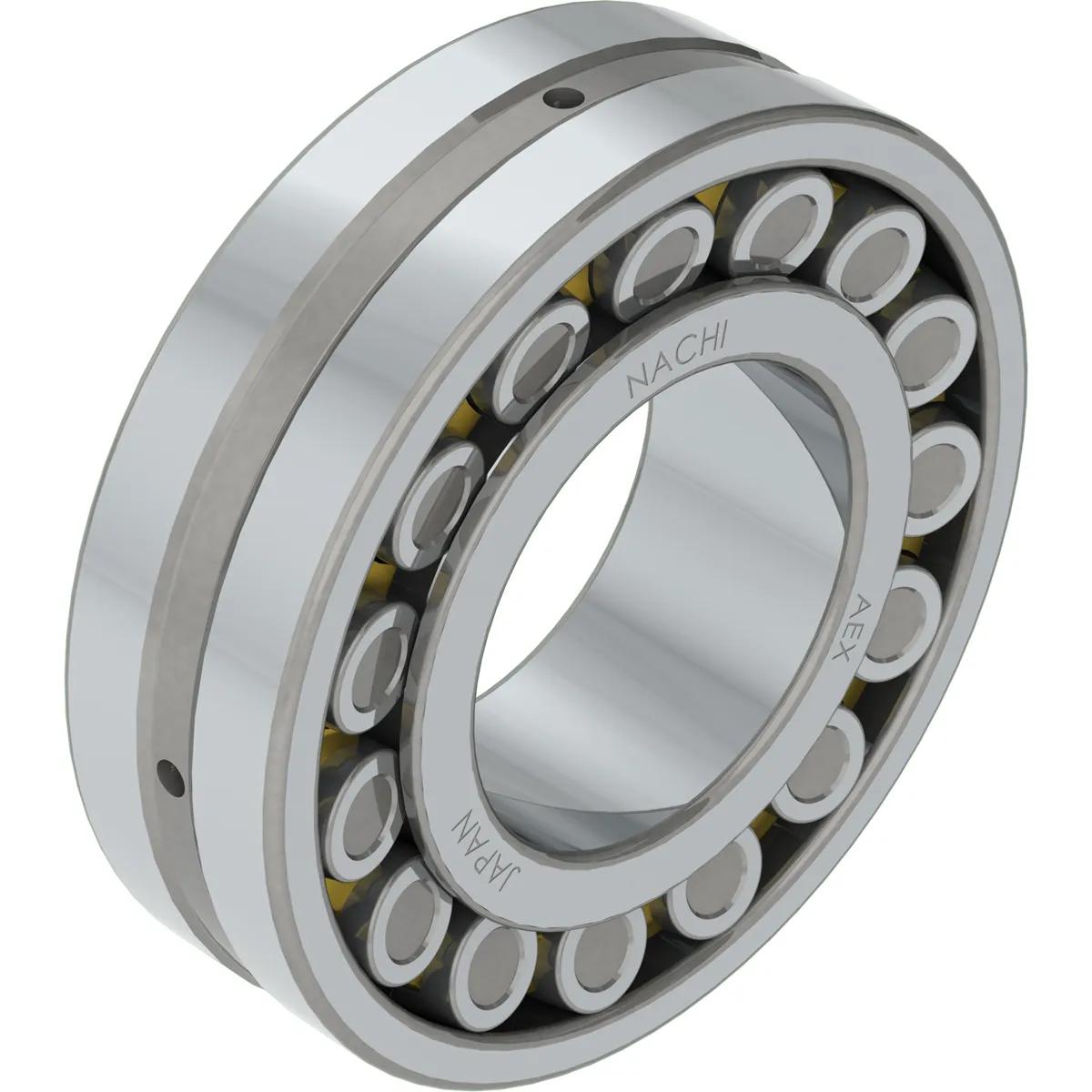

Nachi 23236EW33C3BNLZ - 23200 Series Spherical Roller Bearing, MFR ID NAC-23236EW33C3
- MFR #23236EW33C3
- EIS #23236EW33C302
- UPC #4991893538281
- Midpoint #NAC-23236EW33C3
$2,060.27 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. See Table 1 for the roller, the guide ring and cage design for NACHI Spherical Roller Bearings. They can sustain radial and axial loads.
Features
- Symmetric rollers
- Inner ring rib
- (W33) = Lubricant groove and holes on outer ring
- (K) = Tapered bore 1:12
General Information
| Item Name | Spherical roller bearing |
General Features
| Net Weight | 86.86 lb |
Design & Construction
| Bore Type | Cylindrical |
| Cage Material | Machined High Strength Brass Cage |
| Inner Ring Material | JIS SUJ2 Steel |
| Outer Ring Material | JIS SUJ2 Steel |
| Rolling Element Material | JIS SUJ2 Steel |
Performance Details
| Dynamic Load Capacity | 1790000 N |
| Operating Temperature | 200 °C (392 °F) |
| Precision Class | P0 |
| Speed Rating | 1200 rpm (Grease) | 1600 rpm (Oil) |
| Static Load Capacity | 2100000 N |
Physical Properties
| Bore Diameter | 180 mm |
| Outside Diameter | 320 mm |
| Overall Width | 112 mm |
| Radial Internal Clearance | C3 |
