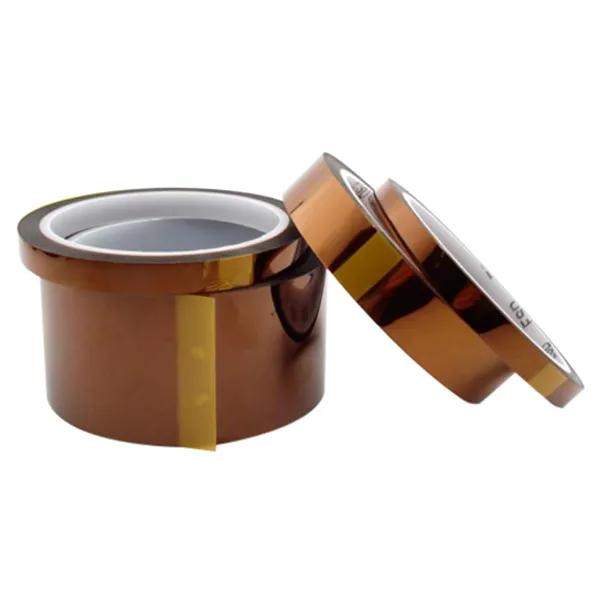

Botron hi-heat low static polyimide tape will withstand temperatures up to 260 °C. Designed to minimize the effects of static generation during stripping and peeling. It is also highly resistant to heat and chemicals, puncture and tear resistant at high temperatures and offers optimal performance in electrical and thermal insulation. - Due to it's superior dielectric properties, this antistatic polyimide tape works as a great insulator for static sensitive electronic components. High temperature polyimide tape offers optimal performance in electrical and thermal insulation and is highly resistant to heat and chemicals.
Applications
- For Protecting Sensitive Printed Circuit Board (PCB) Components Such as Gold Leads and Gold Fingers During the Process of Wave Soldering
General Information
| Item Name | Solder Masking Tape |
| Series | BKA16 |
General Features
| Type | Antistatic |
Design & Construction
| Adhesive Type | Silicone |
| Backing Material | Polyimide |
| Color | Amber |
Performance Details
| Adhesive Strength | 26 oz/Inch |
| Tensile Strength | 30 lb/Inch |
Electrical Properties
| Dielectric Strength | 7500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 50% |
| Length | 36 Yard |
| Thickness | 2.5 Mil |
Environmental Condition
| Resists | Heat, Chemical |
| Temperature Rating | 260 °C |
