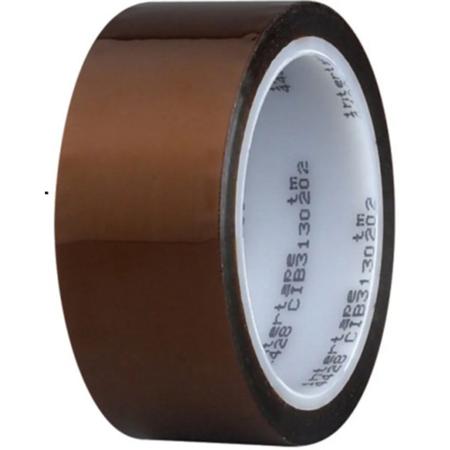

Intertape 4118 Polyimide Solder Masking Tape
- MFR #4118
- EIS #PH22-4118
$17.34 - $33.78
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | ||||
|---|---|---|---|---|
 | 36 Yard | 0.5 Inch | $ / Roll | |
| 36 Yard | 0.625 Inch | $ / Roll | |
| 36 Yard | 0.75 Inch | $ / Roll |
Intertape 4118 Kapton polyimide backing and silicone adhesive offers outstanding thermal resistance and excellent electrical insulating properties. This tape is used where toughness, puncture resistance, extreme resistance to heat and flame retardance are required. - Used on gold fingers for protection in wave soldering. It is also used as a ground barrier and phase insulation in high performance toroidal coils. Outstanding thermal resistance and excellent electrical insulating properties.
Applications
- For Protecting Gold Fingers on Wave Soldering, Ground Barrier and Phase Insulation in Toroidal Coils
General Information
| Item Name | Solder Masking Tape |
| Trade Name | Inter Tape |
| Series | 4118 |
Design & Construction
| Adhesive Type | Thermosetting Silicone |
| Backing Material | Polyimide |
| Color | Amber |
| Shape | Roll |
Performance Details
| Adhesive Strength | 25 oz/Inch |
| Flame Retardant | Yes |
| Tensile Strength | 30 lb/Inch |
Electrical Properties
| Dielectric Strength | 7000 V |
Physical Properties
| Core Size | 3 Inch |
| Width | - |
| Elongation | 60% |
| Thickness | 2.6 mil |
Environmental Condition
| Resists | Moisture, Puncture, Heat |
| Temperature Rating | 180 °C |
