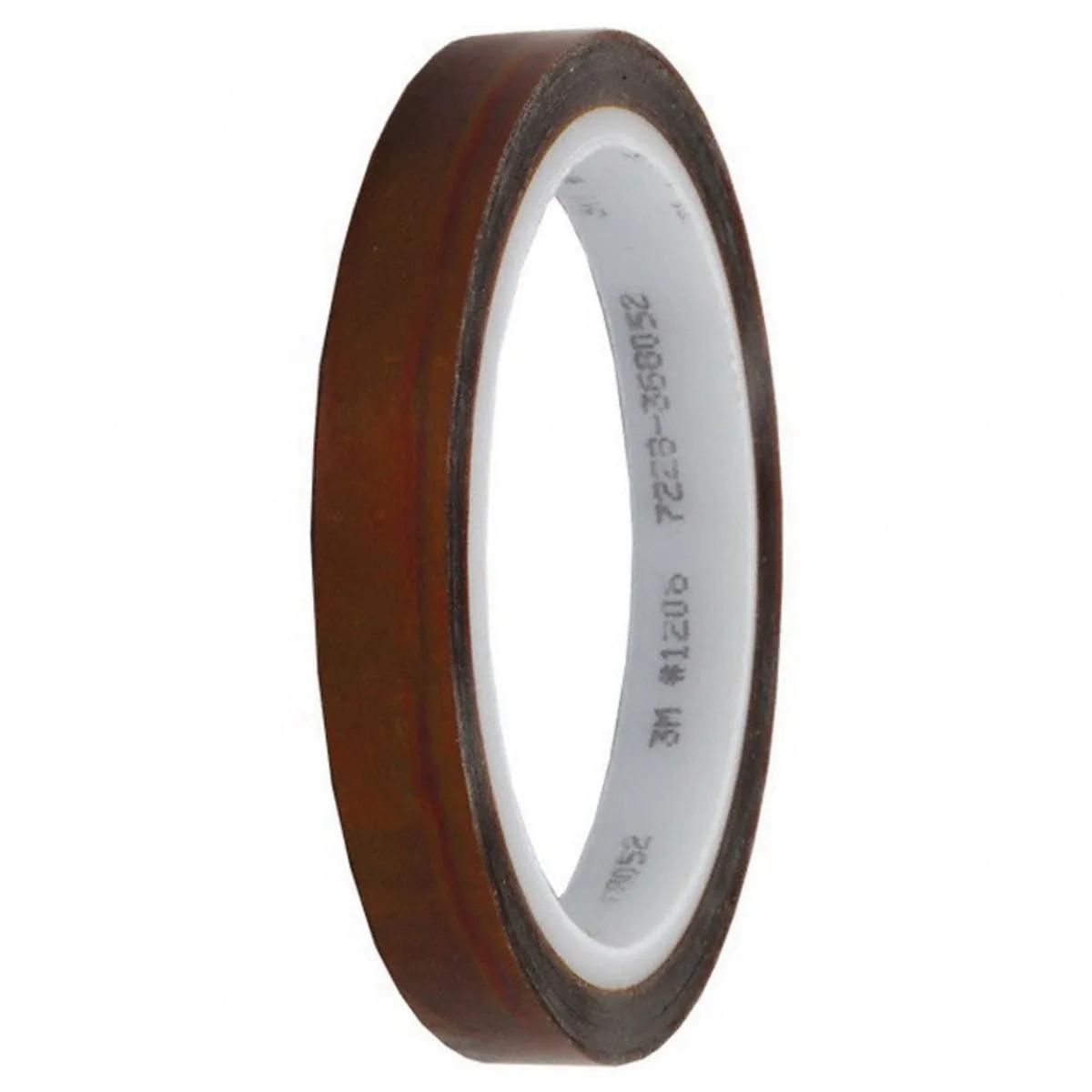

3M 1206 Polyimide Solder Masking Tape

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:1206

EIS #:PH22-1206

MFR #:1206

EIS #:PH22-1206

0
0
3M 1206 tape is a 1 Mil polyimide film backing with an acrylic, pressure sensitive adhesive. 3M Polyimide Film Electrical Tape 1206 is used for high temperature electrical applications where solvent resistance is required for wrapping coils, transformers. - 3M 1206 tape is especially suited to high temperature transformer applications where silicone cannot be used. Used as a cover layer material for many types of flexible printed circuits.
Select from the options below
0
0
3M 1206 tape is a 1 Mil polyimide film backing with an acrylic, pressure sensitive adhesive. 3M Polyimide Film Electrical Tape 1206 is used for high temperature electrical applications where solvent resistance is required for wrapping coils, transformers. - 3M 1206 tape is especially suited to high temperature transformer applications where silicone cannot be used. Used as a cover layer material for many types of flexible printed circuits.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.75 Inch
EIS Part #
3M1206X.75
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Width
0.5 Inch
EIS Part #
3M1206X.5
$ / Roll

Attributes

General Information
Item NameSolder Masking Tape
Trade Name3M
Series1206
Design & Construction
Adhesive TypeAcrylic
Backing MaterialPolyimide
ColorAmber
ShapeRoll
Performance Details
Adhesive Strength35 oz/Inch
Breaking Strength30 lb/Inch
Electrical Properties
Dielectric Strength7500 V
Physical Properties
Core Size3 Inch
Elongation35%
Length36 Yard
Thickness2.2 mil
Width-
Environmental Condition
ResistsSolvent, Puncture
Temperature Rating155 °C
