HellermannTyton Non-Adhesive PVC Slotted Wall Wiring Duct, MFR ID HT_Duct_Slotted-Wall
- MFR #HT_Duct_Slotted-Wall
- EIS #PH15-HT_Duct_Slotted-Wall
- Series #HT_Duct_Slotted-Wall
$4.62 - $483.69
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | 3.07 Inch | 3 Inch | Gray | $ / Foot Pack: 120 ft/Carton more info | |
 | 1.57 Inch | 1.5 Inch | Gray | $ / Foot Pack: 120 ft/Carton more info | |
 | 3.07 Inch | 1.5 Inch | Gray | $ / Foot Pack: 120 ft/Carton more info | |
 | 4.07 Inch | 4 Inch | Gray | $ / Foot Pack: 120 ft/Carton more info | |
 | 5.06 Inch | 3 Inch | Gray | $ / Foot Pack: 120 ft/Carton more info | |
 | 4.07 Inch | 1.5 Inch | Gray | $ / Foot Pack: 120 ft/Carton more info |

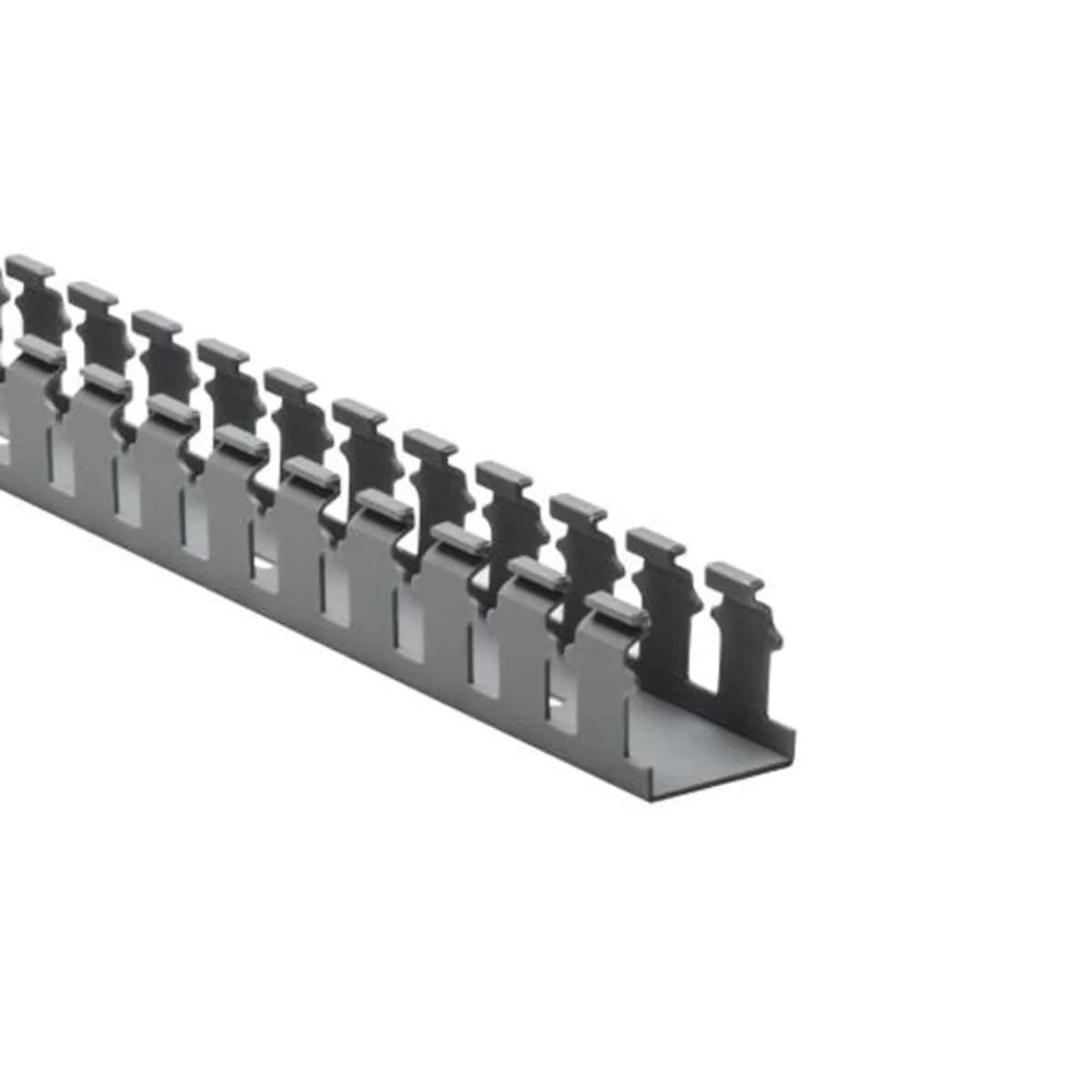

Pro-duct slotted wall wiring duct features break-away fingers which provide additional access for wire leads. Each section of the duct is provided with two score lines. - The upper score line is used to break away fingers when a wider opening is required. The lower score line allows the sidewall to be smoothly cut for joints and "T's".
Features
- Strong fingers prevent unwanted breaking
- Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection
General Information
| Item Name | Slotted Wall Wiring Duct |
| Series | HT_Duct_Slotted-Wall |
General Features
| Type | Non-Adhesive |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
Design & Construction
| Material | PVC |
| Slot-To-Slot Centerline | 1 Inch |
Physical Properties
| Length | 6 ft |
| Slot Size | 0.4 Inch |
