MFR #:Nu-Sleeve™ VPI-200-A
EIS #:PH21-Nu-Sleeve VPI-200-A
Series #:Nu-Sleeve™ VPI-200-A
MFR #:Nu-Sleeve™ VPI-200-A
EIS #:PH21-Nu-Sleeve VPI-200-A
Series #:Nu-Sleeve™ VPI-200-A

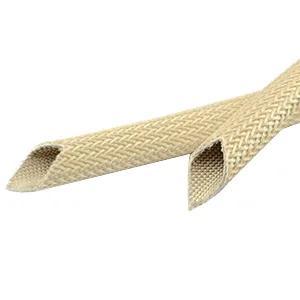

Nu-Sleeve VPI-200 is a double wall coated fiberglass sleeving. It is made by applying a layer of silicone rubber to a braided electrical grade fiberglass substrate to produce a Grade A silicone rubber coated fiberglass sleeving. Has excellent electrical properties, excellent heat stability and is designed to wick-in and retain resins for added dielectric and mechanical properties without the excessive bulk. - The sleeving is then overbraided with a 3-ply fiberglass MIL-Y-1140H yarn to provide a high degree of abrasion resistance and saturability for vacuum pressure impregnation.
$0.72
- $14,386.67
Select from the options below
Nu-Sleeve VPI-200 is a double wall coated fiberglass sleeving. It is made by applying a layer of silicone rubber to a braided electrical grade fiberglass substrate to produce a Grade A silicone rubber coated fiberglass sleeving. Has excellent electrical properties, excellent heat stability and is designed to wick-in and retain resins for added dielectric and mechanical properties without the excessive bulk. - The sleeving is then overbraided with a 3-ply fiberglass MIL-Y-1140H yarn to provide a high degree of abrasion resistance and saturability for vacuum pressure impregnation.
Product Options
Showing 8 out of 16 options
Length: 3 ft | Gauge: 8 AWG | EIS Part #: ACRVPOB20008NLJ | $ / Foot | ||
Length: 3 ft | Gauge: 7 AWG | EIS Part #: ACRVPOB20007NLJ | $ / Foot | ||
Length: 36 ft | Gauge: 6 AWG | EIS Part #: ACRVPOB20006NLJ | $ / Foot | ||
Length: 36 ft | Gauge: 5 AWG | EIS Part #: ACRVPOB20005NLJ | $ / Foot | ||
Length: 100 ft | Gauge: 5 AWG | EIS Part #: ACRVPOB20005NBJ | $ / Foot | ||
Length: 3 ft | Gauge: 4 AWG | EIS Part #: ACRVPOB20004NLJ | $ / Foot | ||
Length: 100 ft | Gauge: 4 AWG | EIS Part #: ACRVPOB20004NBJ | $ / Foot | ||
Length: 100 ft | Gauge: 3 AWG | EIS Part #: ACRVPOB20003NBJ | $ / Foot |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameSilicone Rubber Coated Sleeving
Trade NameNu-Sleeve™ VPI-200
SeriesNu-Sleeve™ VPI-200-A
Design & Construction
ColorNatural
GradeA
Insulation MaterialSilicone Rubber
Insulation TypeClass H
Braid TypeFiberglass, Over-Braided
Insulation Coating TypeSilicone
NEMA SpecificationNEMA TF-1 Type 6
Performance Details
Tensile Strength8.3 Mpa
Electrical Properties
Dielectric Strength15 kV
Physical Properties
Hardness340 Shore A
Elongation410%
Features
- Features high dielectric protection, maximum flexibility for ease of installation, improved abrasion resistance, non-slip bond between layers and has a minimum dielectric strength of 8000V
- High degree of saturability for vacuum pressure impregnation
- Excellent electrical properties
- Excellent heat stability
- High dielectric protection
- Maximum flexibility for ease of installation
- Improved abrasion resistance
- Dielectric Grade: A
- Dielectric Strength: Up to 15 kV
- Temperature Rating: -70 to 220 °C
Applications
- Coil and Winding Industry (Coils, Motors, Generators, Transformers)
- Wind Turbines and Solar Panels
- Industrial Fields
