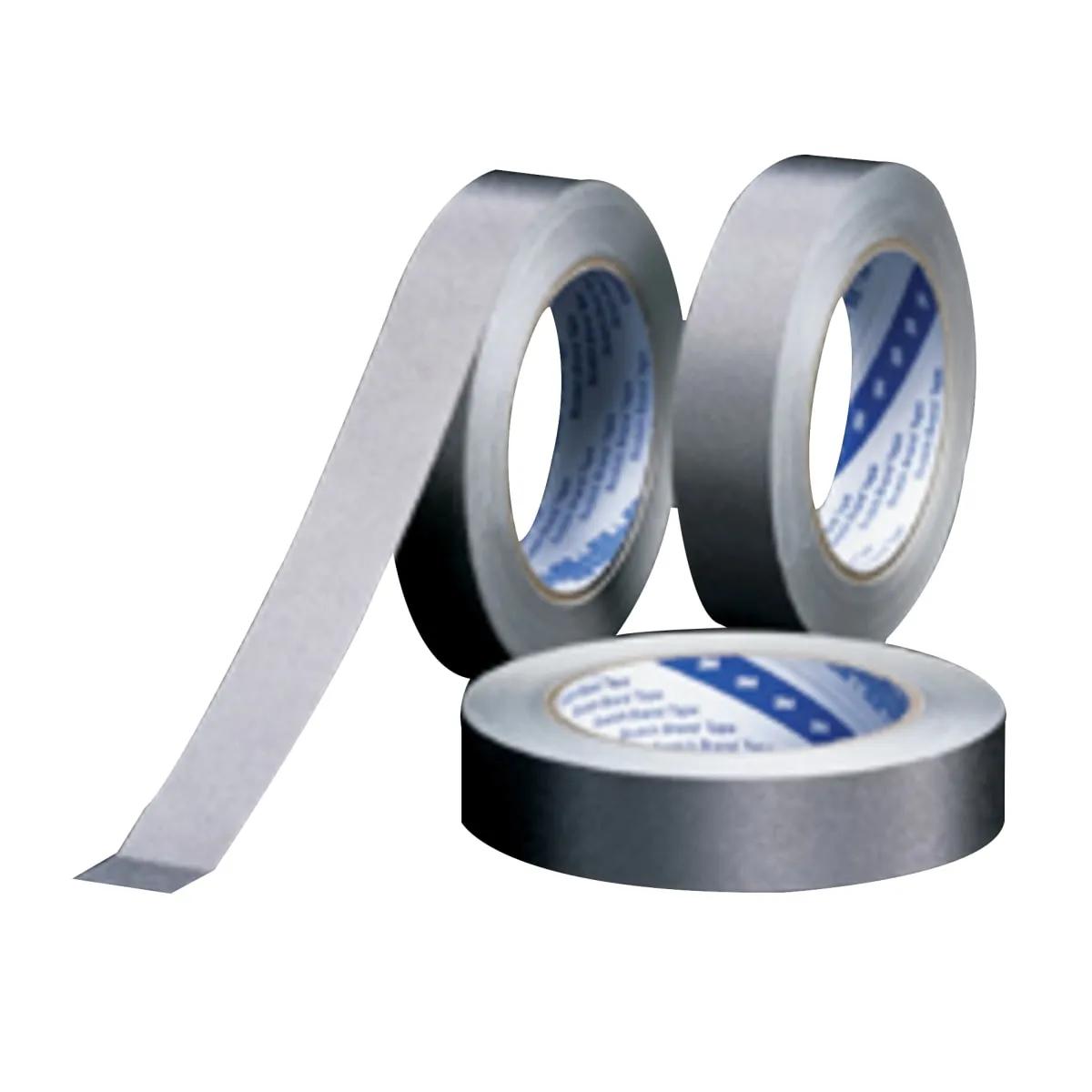

3M 2191FR EMI Nickel on Copper-Plated Polyester Fabric Shielding Tape
- MFR #2191FR
- EIS #PH22-2191FR
$105.95
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 2 Inch | $ / Roll |
3M nickel on copper-plated PET ripstop fabric tape 2191FR has a 5.2 Mil nickel on copper-plated polyester ripstop fabric with conductive acrylic pressure sensitive adhesive and liner, this fabric tape is UL recognized for flame retardancy per UL 510. - Polyester ripstop fabric backing provides excellent flexibility and conformability, mechanical strength and light weight. Polyester ripstop fabric is also easily handled (minimizes finger laceration) and converted (slitting and die cutting).
Features
- UL recognized flame-retardancy per UL 510 for applications needing this property
- Conductive particles in the adhesive provides low contact resistance between the substrate and the backing to drain static charge
- Acrylic pressure sensitive adhesive has good resistance to heat, oxidation, solvents and oils
- Removable liner makes it easy to handle and die cut complex shapes
- There are both standard and custom roll widths and lengths to meet a variety of application needs
- Backing thickness of 5.3 Mil
Applications
- For Grounding and EMI Shielding in Equipment, Components, Shielded Rooms
General Information
| Item Name | Shielding Tape |
| Trade Name | 3M |
| Series | 2191FR |
General Features
| Type | EMI |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Nickel on Copper-Plated Polyester Fabric |
| Color | Silver |
Performance Details
| Adhesive Strength | 2.1 N/cm |
| Breaking Strength | 108 N/cm |
| Flame Retardant | Yes |
Physical Properties
| Core Size | 3 Inch |
| Width | - |
| Length | 21.8 Yard |
| Thickness | 5.5 mil |
