3M 1182 EMI Double Coated Copper Foil Shielding Tape
- MFR #1182
- EIS #PH22-1182
$46.81
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 0.25 Inch | $ / Roll more info | |
| 0.5 Inch | $ / Roll | |
 | 0.125 Inch | $ / Roll | |
| 0.75 Inch | $ / Roll |

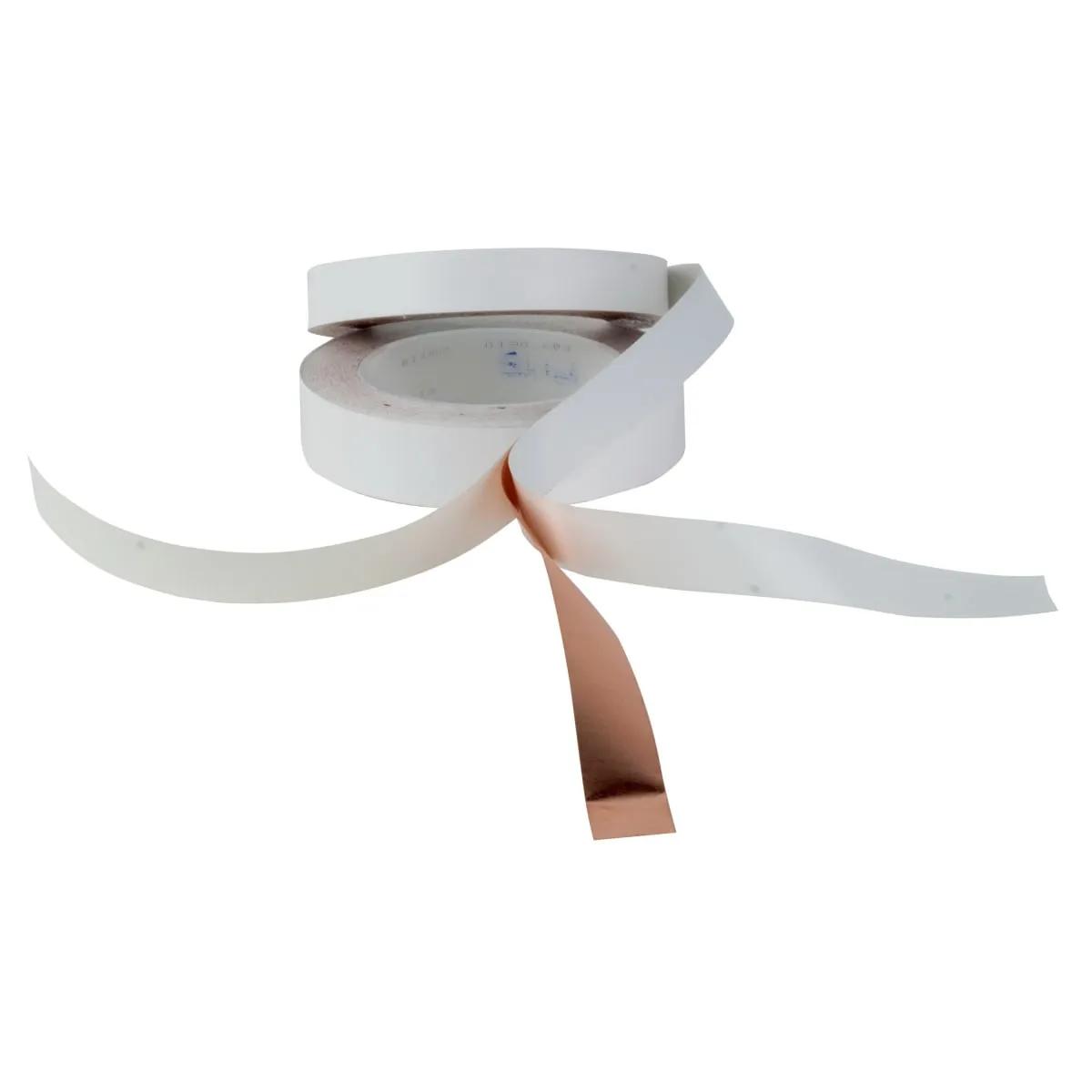

3M copper foil shielding Tape 1182 has a 1.4 Mil copper foil backing with conductive acrylic pressure sensitive adhesive on both sides and a liner. The 1182 tape with double-coated conductive adhesive makes an excellent conductive gasket. - 3M 1182 tape supplied with removable liner on both sides for easy handling and die-cutting.
Applications
- For Adhering a Conductive Gasket to a Conductive Surface as Part of the EMI Shielding Solution for an Electronic Enclosure
General Information
| Item Name | Shielding Tape |
| Trade Name | 3M |
| Series | 1182 |
General Features
| Type | EMI, Double-Coated |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Copper Foil |
| Color | Copper |
Performance Details
| Adhesive Strength | 35 oz/Inch |
| Breaking Strength | 25 lb/Inch |
| Flame Retardant | Yes |
Physical Properties
| Core Size | 3 Inch |
| Width | - |
| Length | 18 Yard |
| Thickness | 3.5 mil |
