MFR #:1126
EIS #:PH22-1126
MFR #:1126
EIS #:PH22-1126

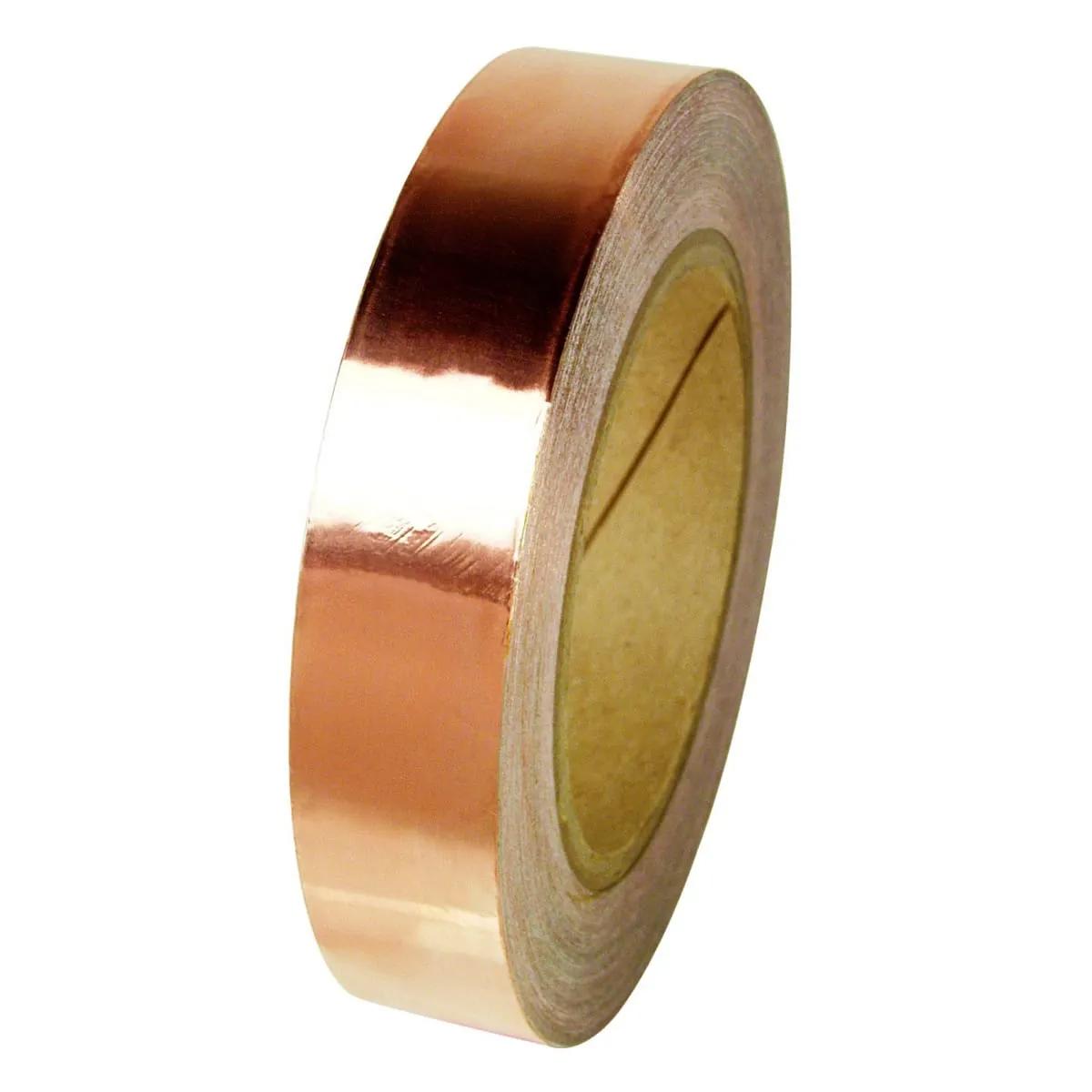

3M copper foil tape 1126 tape is typically used as an EMI/RFI shielding tape for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials. - 3M copper foil tape 1126 consists of a 1 oz rolled copper foil backing and an electrically conductive, pressure sensitive acrylic adhesive. This tape is supplied on are movable liner for easy handling and die-cutting. It has excellent solder ability.
$116.65
Select from the options below
3M copper foil tape 1126 tape is typically used as an EMI/RFI shielding tape for applications in the electronics industry such as static charge draining, seaming shielded rooms, cable wrapping and surface contact to non-solderable materials. - 3M copper foil tape 1126 consists of a 1 oz rolled copper foil backing and an electrically conductive, pressure sensitive acrylic adhesive. This tape is supplied on are movable liner for easy handling and die-cutting. It has excellent solder ability.
Product Options
Showing 2 out of 2 options
Width: 1 Inch | EIS Part #: 3M1126X1 | $ / Roll | ||
Width: 0.125 Inch | EIS Part #: 3M1126X.125 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameShielding Tape
Trade Name3M
Series1126
General Features
Shelf Life60 Months
TypeEMI, Smooth
Design & Construction
Adhesive TypeAcrylic
Backing MaterialCopper Foil
ColorCopper
Performance Details
Adhesive Strength35 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes
Physical Properties
Core Size3 Inch
Elongation5%
Length36 Yard
Thickness3.5 mil
Width-
Environmental Condition
Temperature Rating130 °C
Features
- Supplied on a removable liner for easy handling and die-cutting
- It has excellent solder ability
- Backing thickness of 1.4 Mil
- Temperature rating of -40 to 130 °C
Applications
- For Electronics Industry such as Static Charge Draining, Seaming Shielded Rooms, Cable Wrapping and Surface Contact to Non-Solderable Materials
