JTEKT Bearings 1203 - Open Type , 17 mm ID, 40 mm OD, 12 mm Width, C0 Internal Clearance, MFR ID KOY-1203

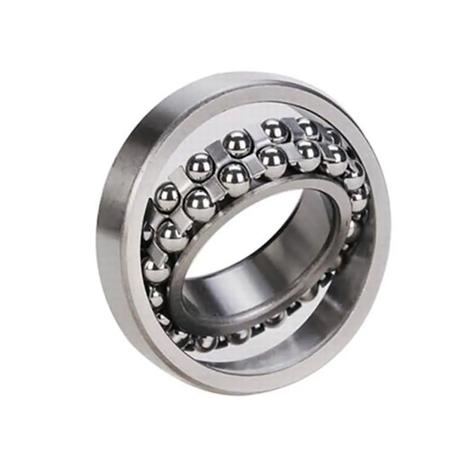

The image shown is representative of the product family and may not specifically be the individual item. 1200 -Self-Aligning Ball Bearings, ligning Ball Bearings - Open Type
  • MFR #:1203
  • EIS #:120308
  • UPC #:605790000843
  • Midpoint #:KOY-1203
  • MFR #:1203
  • EIS #:120308
  • UPC #:605790000843
  • Midpoint #:KOY-1203
Available to Order

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
1203 -Self-Aligning Ball Bearings, ligning Ball Bearings - Open Type
$37.48 / Piece

Min Qty:1

  |

Qty Increment:1

JTEKT/KOYO
JTEKT/KOYO
1203 -Self-Aligning Ball Bearings, ligning Ball Bearings - Open Type

Attributes

General Information

Item NameSelf-Aligning Ball Bearings

Series1200

General Features

Net Weight0.161 lb

Design & Construction

Bore TypeCylindrical
Cage MaterialSteel
Cage TypeRiveted
Closure TypeOpen
Lubrication TypeRust Preventative
Material52100
Retainer MaterialSteel
Retainer TypeRiveted
Rolling ElementBall
Rolling Element Material52100
Row TypeDouble row

Performance Details

Dynamic Load Capacity7.9 kn
Operating Temperature-30 to 120 °C
Precision ClassClass 0
Self AligningYes
Speed Rating16000 rpm (Grease) | 20000 rpm (Oil)
Static Load Capacity2.05 kn

Physical Properties

Bore Diameter17 mm
Fillet Radius0.0236 Inch
Outside Diameter40 mm
Overall Width12 mm
Radial Internal ClearanceC0
