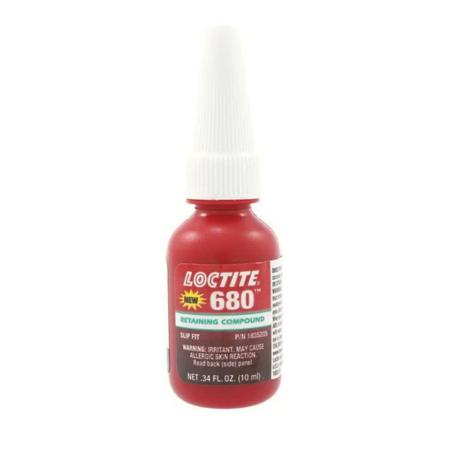

Loctite 680 High Strength Retaining Compound, MFR ID LOC-680
- MFR #LOC-680
- EIS #PH11-LOC-680
- Series #LOC-680
$23.98 - $244.53
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 50mL | $ / Piece Pack: 10/Case | |
 | 250mL | $ / Piece Pack: 10/Case |
Loctite 680 retaining compound is a high strength, high viscosity room temperature curing adhesive used to join fitted cylindrical parts. It fixtures in 10 min and provides a shear strength of 4000 psi. Capable of filling diametral gaps up to 0.015 Inch (0.38 mm). - Loctite 680 is designed for the bonding of cylindrical fitting parts, particularly where low viscosity is required. The product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from shock and vibration.
Features
- Loctite RC 680 retaining compound extends the life of the fit between the housings and the bearings from 4 - 6 months to over 2 yr
- RC 680 completely filled any voids in the fit of the two-parts, while increasing strength
- Loctite fast curing liquid reduces weight, noise and maintenance
- Loctite RC 680 reduces weight beyond that of a lightweight assembly
- Loctite 680 retaining compound reduces material and labor costs by eliminating unnecessary steps while maintaining reliability
Applications
- For Retaining Shafts, Gears, Pulleys and Similar Cylindrical Parts
General Information
| Item Name | Retaining Compound |
| Series | LOC-680 |
General Features
| Type | High Strength |
| Standards | NSF/ANSI 61, ABS Approved, CFIA Listed |
| Storage Temperature | 8 to 21 °C |
Design & Construction
| Color | Green |
| Cure Type | Anaerobic Cure |
| Form | Liquid |
Performance Details
| Application Time | 10 min |
| Full Cure Time | 24 hr |
| Shear Strength | 4000 psi |
Chemical Properties
| Composition | Methacrylate Ester |
| Specific Gravity | 1.1 |
| Viscosity | 4000 cP |
| VOC | 4.74g/L |
Physical Properties
| Container Type | Bottle |
| Odor/Scent | Characteristic |
Supporting Information
| Applicable Materials | Mild Steel, Stainless Steel and Plated Surfaces |
Documents
No Documents Found
