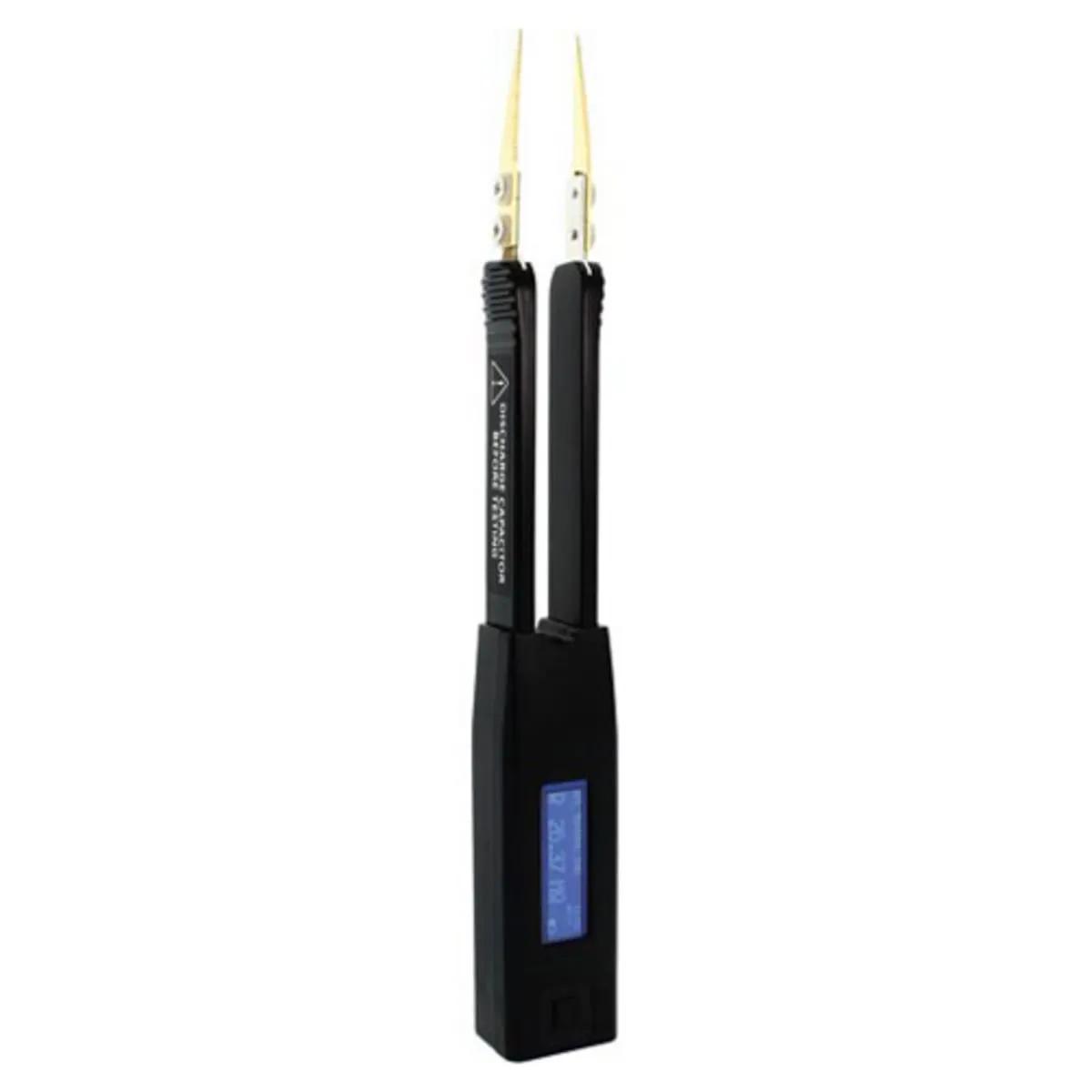

Excelta TM-500 RCL Meter - Hand-Held
- MFR #TM-500
- EIS #TM-500-EXC
- UPC #662847001642
$758.23 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
The TM-500 IntelliTweeze™ is a quick and easy way of testing and troubleshooting many types of components. It features built-in high precision LCR probe, .2-.5% base measurement accuracy, automated component identification, automated test range selectioon, manual C,R,L,Z and ESR modes, adjustable test signal levels, diade polarity short testing, secondary D,Q, and ESR parameters, high visibility LED display and build-in Li-Ion battery.
Features
- Easy way of testing and troubleshooting many types of components
Applications
Easy way of testing and troubleshooting many types of components
General Information
| Item Name | Tweezer Meter |
| Trade Name | Excelta |
| Series | Intellitweeze® |
General Features
| Net Weight | 9.25 oz |
| Type | Rechargeable |
Design & Construction
| Battery Type | Rechargeable LiPo |
| Display | LCD |
| Shape | Straight |
| Tip Size | 0.02 x 0.01 inch |
Performance Details
| Precision Class | 5 Star |
Technical Details
| Accuracy | 50 PPM (0.005%) |
Electrical Properties
| Capacitance | 0.5 pF - 4999 uF |
| Frequency Rating | 100 Hz, 120 Hz, 1 kHz, 10 kHz (AC Test) |
| Resistance | 0.05 ohm - 9.9 megohm |
Physical Properties
| Depth | 1.5 Inch |
| Length | 3.94 Inch |
| Width | 0.9 Inch |
| Overall Length | 3.94 inch |
Environmental Condition
| Temperature Rating | 0 to 55 °C |
Supporting Information
| Includes | Carrying Case, LiPO Battery, USB Wall Adapter |
| OEM ID | TM-500-EXC |
