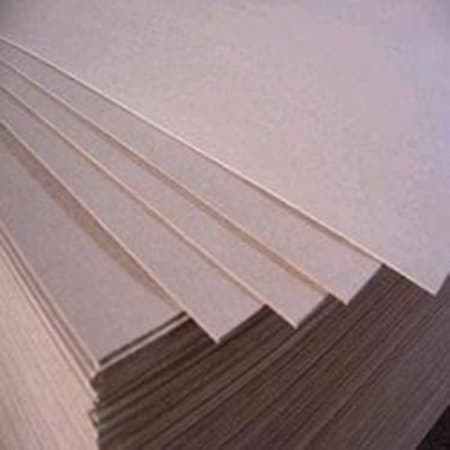

DuPont Nomex® 994 Rigid Pressboard
- MFR #Nomex® 994
- EIS #PH21-Nomex 994
- Series #Nomex® 994
$442.87 - $826.67
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||
|---|---|---|---|
 | 0.08 Inch | $ / Sheet |
Type 994 is a densified, rigid board which has a unique combination of superior resistance to compression, even at elevated temperatures, along with relatively high oil absorption characteristics. This combination results in a product which is especially useful as spacers or other structural components in liquid-filled systems. With a specific gravity ranging from 1.1 to 1.2. -
Nomex® 994 rigid pressboard, natural color, 1.15 g/cm3 density, oil: 27 kV/mm AC rapid rise and 70 kV/Mil full wave impulse dielectric strength, aramid board material. Visit our video channel to learn more about Pressboard!
Features
- Dielectric Strength: Oil:27 kV/mm AC Rapid Rise and 70 kV/Mil Full Wave Impulse
- Tensile Strength: 12000 N/cm2 (MD), 6000 N/cm2 (CD)
Applications
- Designed Specifically for Oil-Filled Transformers, Mobile transformers, Traction Transformers
- Wind Turbine Generator Step-Up (GSU), Rectifier Transformers
- Furnace Transformers, Distribution Transformers (<36 kV), Power transformers (>36 kV)
- Rail Trackside Transformers, HVDC Transformer/Reactors, Underground/Submersible Transformers
General Information
| Item Name | Pressboard |
| Trade Name | Nomex® 994 |
| Series | Nomex® 994 |
General Features
| Type | Rigid |
Design & Construction
| Color | Natural |
| Material | Aramid Board |
Performance Details
| Tensile Strength | 12000 N/sq-cm |
Physical Properties
| Density | 1.15 g/cc |
| Length | 86.5 Inch |
| Width | 28 Inch |
