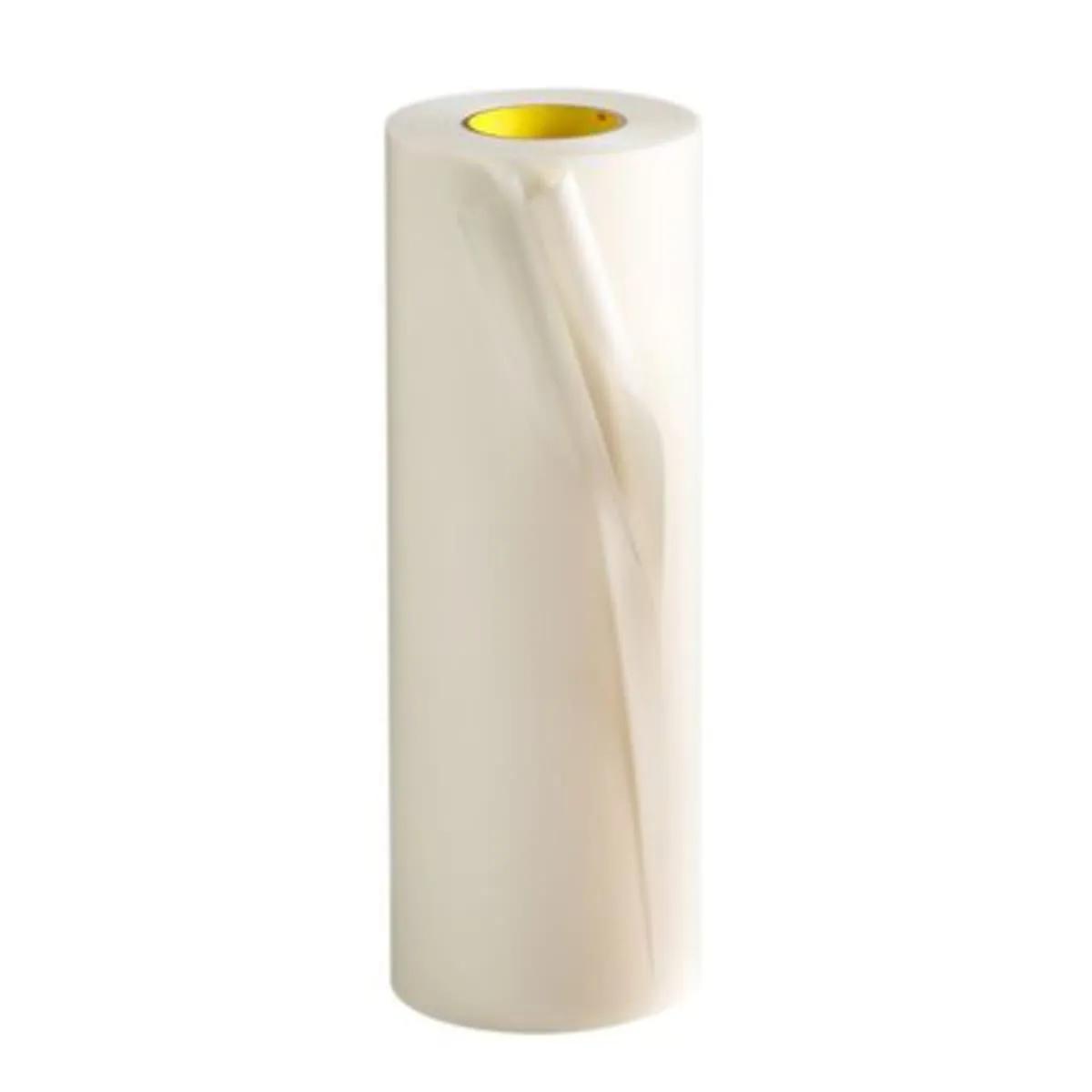

3M 1020 Cushion-Mount™ Plus Polyethylene Foam Plate Mounting Tape, 18" x 25 yd x 2 Mil, White, MFR ID 7000001217
- EIS #3M1020X18X25YD
- UPC #00021200647826
Requires Quote / Roll
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Our 3M™ Cushion-Mount™ Plus Plate Mounting Tape 1020 is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print. - This 0.02 Inch (0.51 mm) white, double coated foam tape with differential adhesion used to mount flexographic print plates. White, flexo plate mounting tape with differential adhesion.
Features
- Provides high quality standard combination print. The adhesives remove cleanly from the print plate and the print cylinder
- Offers a complete range of foam densities providing excellent print quality from process to combination to solid printing
- Consistent caliper control allows the printer to use multiple foam densities on a print job to optimize print quality
- The adhesive on the linered side (plate side) of the tape is designed for mounting of photopolymer plates, excellent holding power on-press and clean plate removal when demounting
- The adhesive on the non-linered side (cylinder side) of the tape is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removability when demounting
- No air release and no consumer label
- Composite sleeves and urethane sleeves
- Standard plate side adhesion
Applications
- For Flexographic Plate Mounting, Print Industries
General Information
| Item Name | Plate Mounting Tape |
| Trade Name | Cushion-Mount™ Plus |
| Series | 1020 |
General Features
| Storage Temperature | 60 to 80 °F |
Design & Construction
| Adhesive Type | Differential Acrylate |
| Carrier Material | Polyethylene Foam |
| Color | White |
| Liner Material | Polycoated Kraft Paper |
Physical Properties
| Core Size | 3 Inch |
| Width | 18 Inch |
| Length | 25 Yard |
| Liner Thickness | 0.0045 Inch |
| Thickness | 2 mil |
Environmental Condition
| Temperature Rating | 120 °F |
