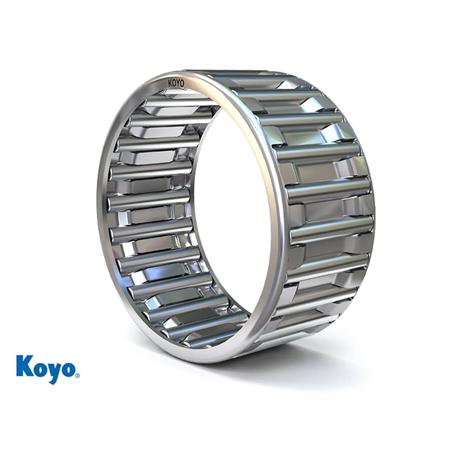

JTEKT Bearings K18X22X10 - Cage and Roller Assembly, 18 mm ID, 22 mm OD, 10 mm Width, Steel Cage, MFR ID KOY-K18X22X10
- MFR #:K18X22X10
- EIS #:K18X22X1008
- UPC #:605790212963
- Midpoint #:KOY-K18X22X10
- MFR #:K18X22X10
- EIS #:K18X22X1008
- UPC #:605790212963
- Midpoint #:KOY-K18X22X10
Available to Order
Min Qty:1
|Qty Increment:1
K18X22X10 - Needle Roller Bearing, Needle Non - Thrust Roller Bearings
$6.58 / Piece
Min Qty:1
|Qty Increment:1
K18X22X10 - Needle Roller Bearing, Needle Non - Thrust Roller Bearings
- Attributes
- Features
Attributes
General Information
Item NameNeedle Roller Bearings
SeriesK
General Features
Net Weight0.013 lb
Design & Construction
Bore TypeRound
Cage MaterialSteel
Cage TypeRiveted
Lubrication TypeRust Preventative
Relubrication FeatureNo
Rolling ElementNeedle Roller
Rolling Element Material52100
Row TypeSingle row
Performance Details
Dynamic Load Capacity8.41 kn
Operating Temperature-30 to 110 °C
Precision ClassABEC 1
Self AligningNo
Speed Rating16000 rpm (Grease) | 24000 rpm (Oil)
Static Load Capacity11.1 kn
Physical Properties
Bore Diameter18 mm
Outside Diameter22 mm
Outside Width0.394 Inch
Overall Width10 mm
Features
- Best used for applications that require maximum radial load capacity and a thin cross section
- Most sizes use a hardened steel cage (no callout)
- A polymer cage (TN in suffix) is used on our smallest metric sizes (4-8mm bore)
- The housing bore and shaft must be hardened and machined
- Available in inch (WJ) and metric (K) sizes
