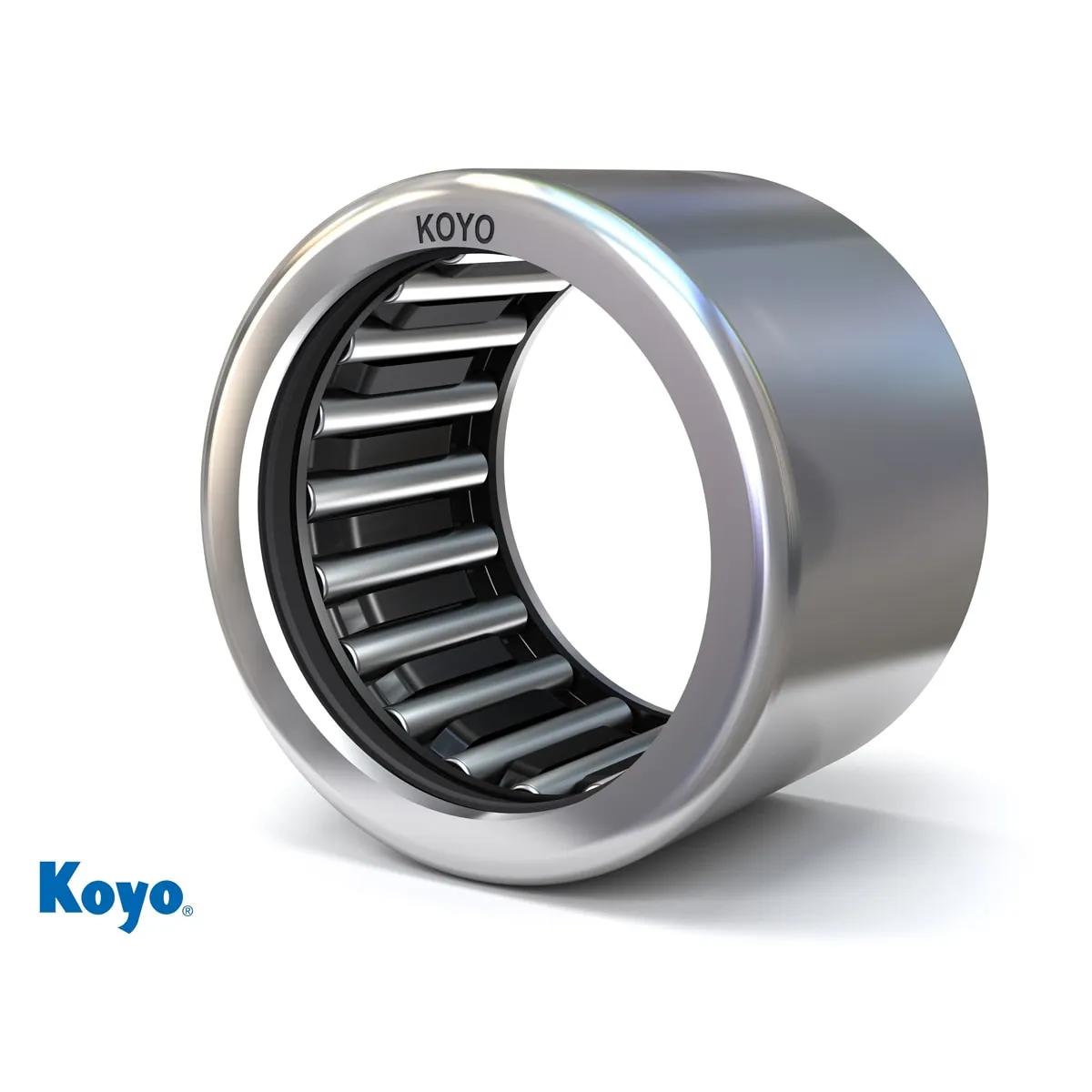

JTEKT Bearings HK2018RS - Caged Drawn Cup Needle Roller Bearing W/ One Seal - 20 mm ID, 26 mm OD, 18 mm Width, MFR ID KOY-HK2018RS
- MFR #:HK2018RS
- EIS #:HK2018RS08
- UPC #:605790195259
- Midpoint #:KOY-HK2018RS
- MFR #:HK2018RS
- EIS #:HK2018RS08
- UPC #:605790195259
- Midpoint #:KOY-HK2018RS
Available to Order
Min Qty:1
|Qty Increment:1
HK2018RS - Needle Roller Bearing, Drawn Cup Needle Roller Bearings
$12.67 / Piece
Min Qty:1
|Qty Increment:1
HK2018RS - Needle Roller Bearing, Drawn Cup Needle Roller Bearings
- Attributes
- Features
Attributes
General Information
Item NameNeedle Roller Bearings
SeriesHK
General Features
Net Weight0.058 lb
Design & Construction
Bore TypeRound
Cage MaterialSteel
Cage TypeRiveted
Closure Type1 Seal
Lubrication TypeGrease
Material1010 Steel
Mounting MethodPress Fit
Relubrication FeatureNo
Rolling ElementNeedle Roller
Rolling Element Material52100
Row TypeSingle row
Performance Details
Dynamic Load Capacity12.4 kn
Operating Temperature-30 to 110 °C
Precision ClassABEC 1
Self AligningNo
Speed Rating9700 rpm (Grease)
Static Load Capacity18.9 kn
Physical Properties
Bore Diameter20 mm
Fillet Radius0.039 Inch
Outside Diameter26 mm
Outside Width0.709 Inch
Overall Width0.7087 Inch
Features
- Best used for good radial load capacity and high speeds for thin cross section applications
- A hardened and machined shaft or an "IR" Inner Ring is required for optimal performance
- A press fit into the housing is required
- Available with an oil hole (-OH or .AS1 in suffix)
- Available with one seal (JT, MJT, HK-RS) or two seals (JTT, HK-.2RS)
- Available with heavy duty rollers (JH style) for applications that require maximum radial load capacity and high speed
- Available with a closed end (MJ , BK)
- Available in inch (J, MJ) and metric (HK, BK)
