Isovolta 4800-7 Calmicaglas® Glass Cloth Mica Tape

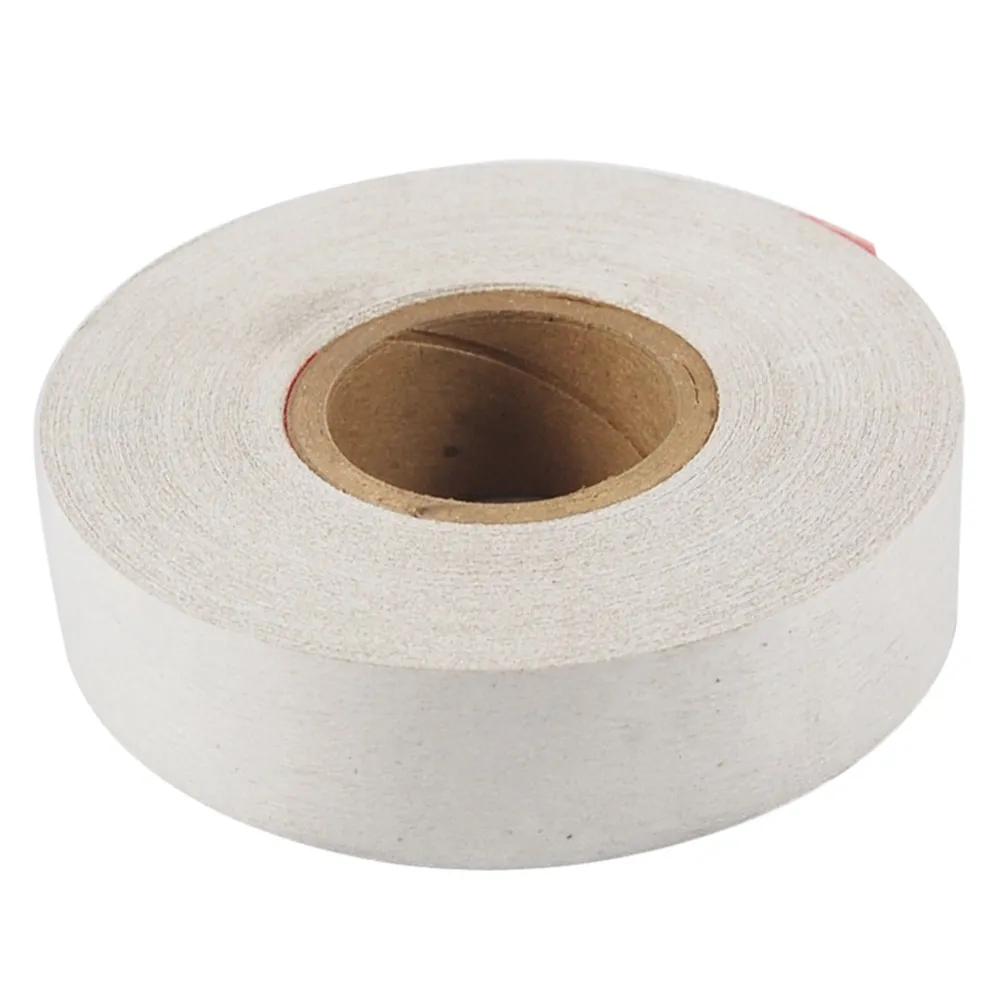

The image shown is representative of the product family and may not specifically be the individual item.
  • MFR #:4800-7
  • EIS #:PH22-4800-7
  • MFR #:4800-7
  • EIS #:PH22-4800-7
0
0
Calmicaglas 4800 is a two-ply product consisting of calcined muscovite mica paper reinforced on one side with a glass cloth. The binder is a thermosetting epoxy resin. - Excellent dissipation factor and electrical properties. Class F applications.
$33.91
 - $47.55
Select from the options below
0
0
Calmicaglas 4800 is a two-ply product consisting of calcined muscovite mica paper reinforced on one side with a glass cloth. The binder is a thermosetting epoxy resin. - Excellent dissipation factor and electrical properties. Class F applications.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 Yard
Width:
0.75 Inch
EIS Part #:
MICA4800-7X3/4X50C
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
50 Yard
Width:
1 Inch
EIS Part #:
MICA4800-7X1X50C
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.
Length:
36 Yard
Width:
1 Inch
EIS Part #:
MICA4800-7X1X36C
$ / Roll

Attributes

General Information

Item NameMica Tape
Trade NameCalmicaglas®

Series4800-7

General Features

Shelf Life12 Months

Design & Construction

Adhesive TypeThermosetting Epoxy
Backing MaterialGlass Cloth
ColorNatural

Performance Details

Tensile Strength80 lb/Inch

Electrical Properties

Dielectric Strength750 V/mil

Physical Properties

Core Size1.5 Inch
Thickness7 Mil

Environmental Condition

Temperature Rating155 °C
