Rea Magnet Wire RW08DDJR Double Build Round Magnet Wire, 8 AWG, Copper, Natural, 24" Reel (245), MFR ID 05002.080.51330
- EIS #RW08DDJR
- Series #RRDDG
$1,399.59 / 100 US pound
Pack: 24" Reel (245)
Available to Order
Min QTY1QTY Increment1
more info
Pack24" Reel (245)
Products You May Also Like

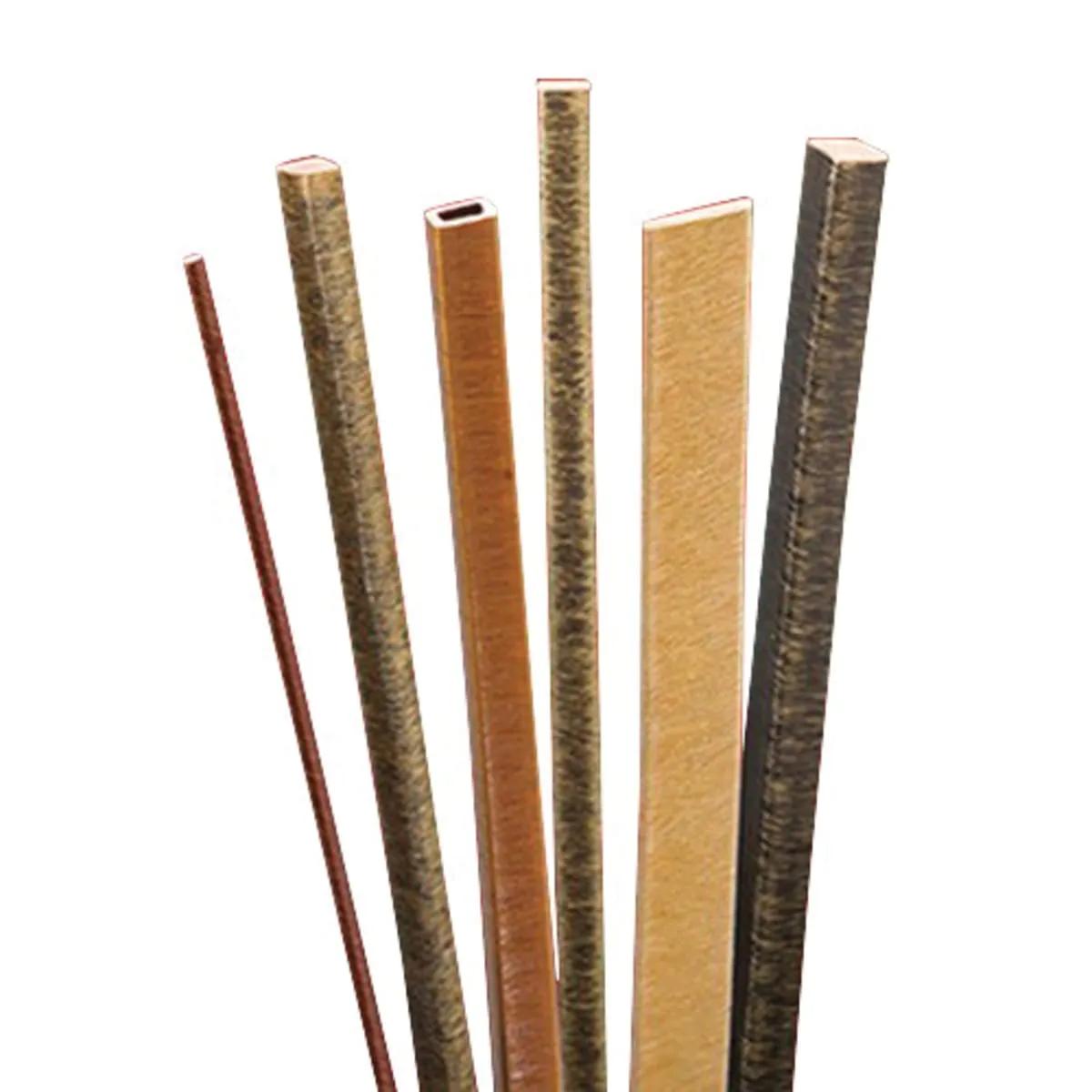

Round Dacron glass is a served filament that is applied over the magnet wire conductor. Dacron glass is a combination of glass and polyester fibers. The fibers may be served over bare conductor or Therm-Aimid insulated conductors.
Round polyester fiber/glass fiber combination provides freedom from fraying and superior adhesion. Outstanding toughness. Machine windable. Daglas-film constructions provide improved electrical properties.
Round polyester fiber/glass fiber combination provides freedom from fraying and superior adhesion. Outstanding toughness. Machine windable. Daglas-film constructions provide improved electrical properties.
Applications
- For a Wide Variety of Difficult Winding and High Reliability Applications
General Information
| Item Name | Magnet Wire |
| Series | RRDDG |
General Features
| Type | Double Build |
| Standards | IEC 60317-60 |
Design & Construction
| Color | Natural |
| Insulation Material | Dacron/Fiberglass |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 45-C |
Physical Properties
| Reel Diameter | 14 Inch |
| Reel Height | 24 Inch |
| Reel Hub Diameter | 1.536 Inch |
| Reel Weight | 271 lb |
| Reel Width | 6 Inch |
Environmental Condition
| Temperature Rating | 155 |
