Rea Magnet Wire SDG Single Build Round Magnet Wire

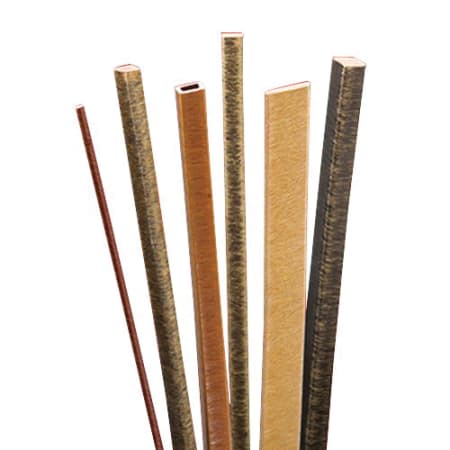

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:TTAI SDGPC121

EIS #:PH15-TTAI SDGPC121

Series #:TTAI SDGPC121

MFR #:TTAI SDGPC121

EIS #:PH15-TTAI SDGPC121

Series #:TTAI SDGPC121

0
0
Round single build Dacron glass is a served filament that is applied over the magnet wire conductor. Dacron glass is a combination of glass and polyester fibers. The fibers may be served over bare conductor or Therm-Aimid insulated conductors. Daglas-film constructions provide improved electrical properties. Polyester fiber/glass fiber combination provides freedom from fraying and superior adhesion. - Round single build Therm-Aimid is a dual film insulation system composed of THEIC modified polyester with a polyamideimide (AI) overcoat. Therm-Aimid, designed for continuous operation at 200 °C, provides superior abrasion resistance, solvent resistance and overload protection.
$1,019.00
 - $1,614.00
Select from the options below
0
0
Round single build Dacron glass is a served filament that is applied over the magnet wire conductor. Dacron glass is a combination of glass and polyester fibers. The fibers may be served over bare conductor or Therm-Aimid insulated conductors. Daglas-film constructions provide improved electrical properties. Polyester fiber/glass fiber combination provides freedom from fraying and superior adhesion. - Round single build Therm-Aimid is a dual film insulation system composed of THEIC modified polyester with a polyamideimide (AI) overcoat. Therm-Aimid, designed for continuous operation at 200 °C, provides superior abrasion resistance, solvent resistance and overload protection.

Product Options

Showing 3 out of 3 options
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size
16 AWG
EIS Part #
RW16TTAISDEPER
$ / US pound
Pack11.75" Reel (121)
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size
15 AWG
EIS Part #
RW15TTAISDEPER
$ / US pound
Pack11.75" Reel (121)
The image shown is representative of the product family and may not specifically be the individual item.
Wire Size
14 AWG
EIS Part #
RW14TTAISDEPER
$ / US pound
Pack11.75" Reel (121)

Attributes

General Information
Item NameMagnet Wire
SeriesTTAI SDGPC121
General Features
TypeSingle Build
Design & Construction
ColorNatural
Insulation MaterialSingle Daglas/Theic Modified Polyester Overcoated with Polyamide-imide
MaterialCopper
NEMA RatingMW 45-C
ShapeRound
Physical Properties
Reel Diameter6.53 Inch
Reel Hub Diameter1.536 Inch
Reel Weight79 lb
Reel Width7 Inch
