Rea Magnet Wire Reabond S Therm-Aimid Single Build Round Magnet Wire

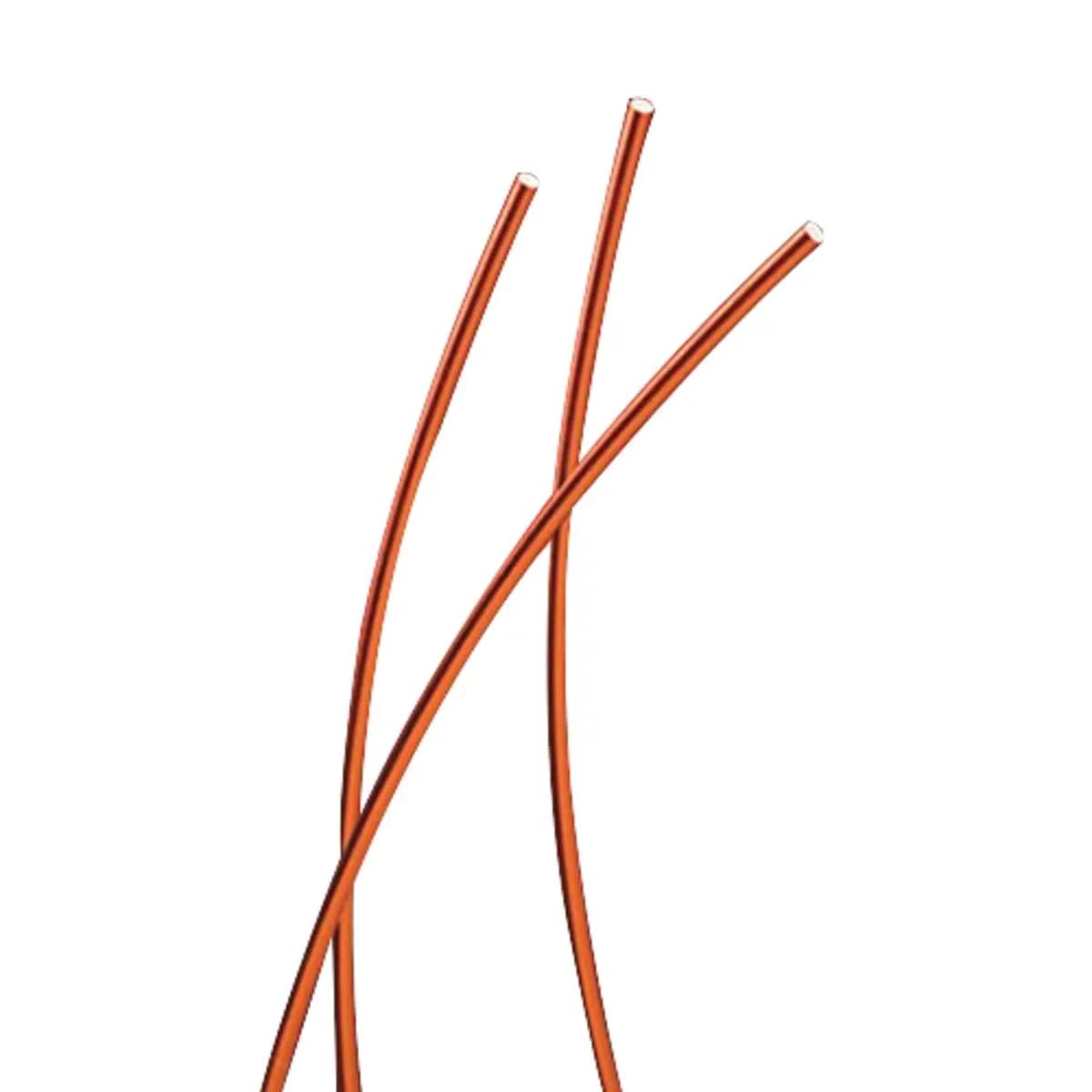

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:RSTAIPC

EIS #:PH15-RSTAIPC

Series #:RSTAIPC

MFR #:RSTAIPC

EIS #:PH15-RSTAIPC

Series #:RSTAIPC

0
0
Cement forms a strong turn-to-turn bond throughout a winding and often eliminates the need for impregnating varnish. High resoftening temperature of outer cement allows this product to compete with many varnish- impregnated heavy-grade magnet wires. Minimum of 3 lb retained bond strength of 18 RSTAI on copper. Cost-optimized manufacturing processes typically employ resistance bonding to bond coils wound with Reabond S magnet wire. - Solvent bonding is not recommended for this product. The Reabond cement may be removed by dioxolane for measuring sub-film dimensions. Resistance bonding applies a voltage that causes the winding to heat electrically to the proper bond temperature. Optimum bonding conditions are reached when the coil temperature is raised to between 220 and 240 °C as measured by the change in coil resistance as a function of the change in temperature.
$182.00
 - $653.00
Select from the options below
0
0
Cement forms a strong turn-to-turn bond throughout a winding and often eliminates the need for impregnating varnish. High resoftening temperature of outer cement allows this product to compete with many varnish- impregnated heavy-grade magnet wires. Minimum of 3 lb retained bond strength of 18 RSTAI on copper. Cost-optimized manufacturing processes typically employ resistance bonding to bond coils wound with Reabond S magnet wire. - Solvent bonding is not recommended for this product. The Reabond cement may be removed by dioxolane for measuring sub-film dimensions. Resistance bonding applies a voltage that causes the winding to heat electrically to the proper bond temperature. Optimum bonding conditions are reached when the coil temperature is raised to between 220 and 240 °C as measured by the change in coil resistance as a function of the change in temperature.

Product Options

Showing 8 out of 25 options
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
10-11" Tapered Reel/Box (115)
Wire Size
28 AWG
EIS Part #
RW28RSTAIGR
$ / US pound
Pack10-11" Tapered Reel/Box (115)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
10-11" Tapered Reel/Box (115)
Wire Size
27 AWG
EIS Part #
RW27RSTAIGR
$ / US pound
Pack10-11" Tapered Reel/Box (115)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
6" Spool (060)
Wire Size
27 AWG
EIS Part #
RW27RSTAICR
$ / US pound
Pack6" Spool (060)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
6" Spool (060)
Wire Size
26 AWG
EIS Part #
RW26RSTAICR
$ / US pound
Pack6" Spool (060)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
10-11" Tapered Reel/Box (115)
Wire Size
25 AWG
EIS Part #
RW25RSTAIGR
$ / US pound
Pack10-11" Tapered Reel/Box (115)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
10-11" Tapered Reel/Box (115)
Wire Size
24 AWG
EIS Part #
RW24RSTAIGR
$ / US pound
Pack10-11" Tapered Reel/Box (115)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
6" Spool (060)
Wire Size
24 AWG
EIS Part #
RW24RSTAICR
$ / US pound
Pack6" Spool (060)
The image shown is representative of the product family and may not specifically be the individual item.
Packaging
10-11" Tapered Reel/Box (115)
Wire Size
23 AWG
EIS Part #
RW23RSTAIGR
$ / US pound
Pack10-11" Tapered Reel/Box (115)

Attributes

General Information
Item NameMagnet Wire
Trade NameReabond S Therm-Aimid
SeriesRSTAIPC
General Features
StandardsUL Listed, IEC 60317-13
TypeSingle Build
Design & Construction
ColorNatural
MaterialCopper
NEMA RatingMW 102-C
Insulation MaterialTheic Modified Polyester Overcoated with Polyamide-imide Overcoated with Thermoplastic Polyester Bondcoat
ShapeRound
