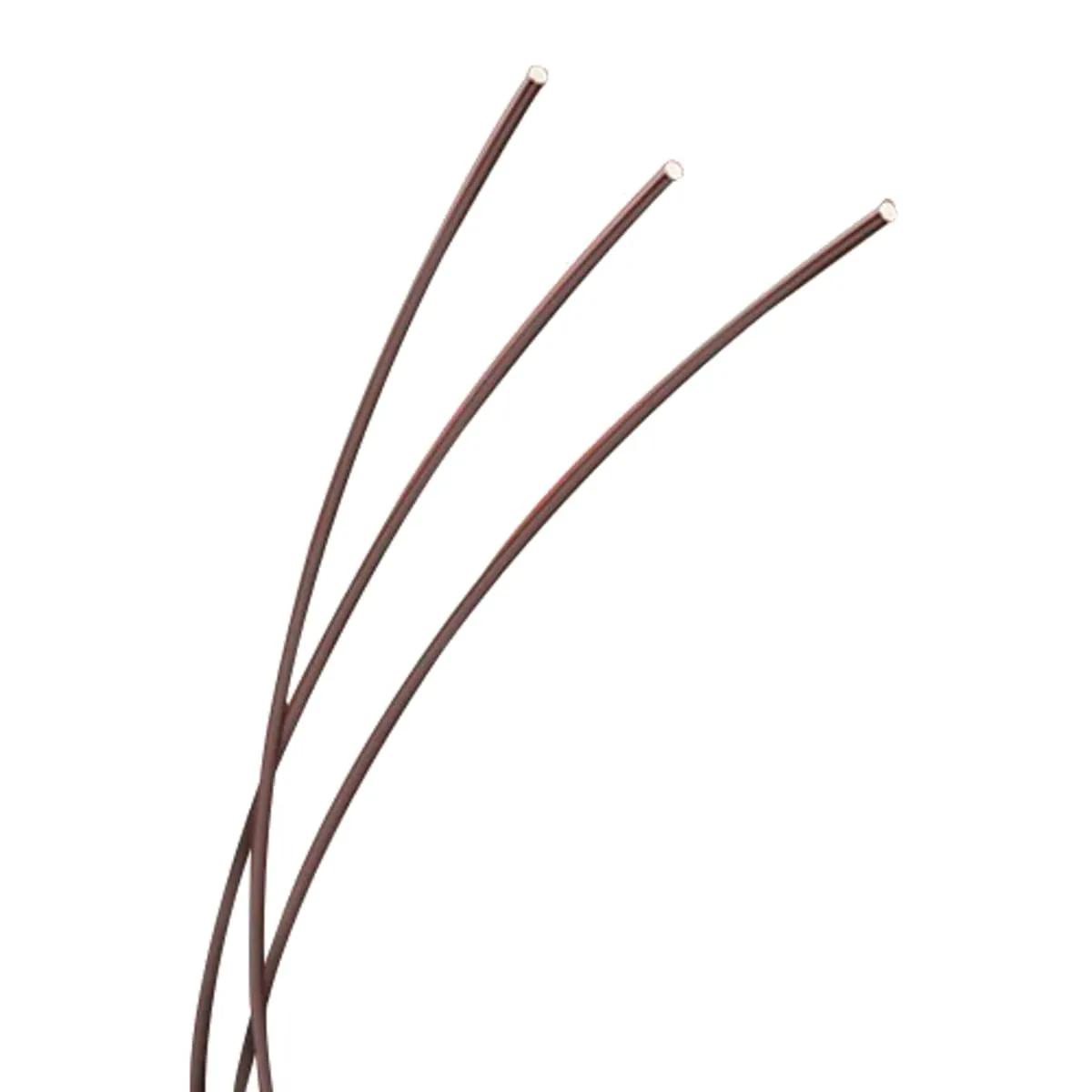

Pulseshield SD is Rea's patented (US patent number 6056995) and UL approved magnet wire specifically designed for inverter-duty Motors. It is based on Rea's Super Hyslik 200 adding a shield coat of oxide-based insulation to neutralize the damage caused by the voltage stresses introduced by variable speed drives. - The triple film insulation system is composed of THEIC modified polyester, oxide-based shield coat and a polyamideimide (AI) overcoat. The utilization of Rea's pulseshield dramatically increases motor life in inverter-duty applications over standard NEMA MW 35 magnet wire.
$272.00
- $401.00
Select from the options below
Pulseshield SD is Rea's patented (US patent number 6056995) and UL approved magnet wire specifically designed for inverter-duty Motors. It is based on Rea's Super Hyslik 200 adding a shield coat of oxide-based insulation to neutralize the damage caused by the voltage stresses introduced by variable speed drives. - The triple film insulation system is composed of THEIC modified polyester, oxide-based shield coat and a polyamideimide (AI) overcoat. The utilization of Rea's pulseshield dramatically increases motor life in inverter-duty applications over standard NEMA MW 35 magnet wire.
Product Options
Showing 3 out of 3 options
Packaging: 10-11" Tapered Reel/Bucket (103) | Wire Size: 24 AWG | EIS Part #: RW24HTAIHSFR | $ / US pound Pack: 10-11" Tapered Reel/Bucket (103) | ||
Packaging: 10-11" Tapered Reel/Bucket (103) | Wire Size: 16 AWG | EIS Part #: RW16HTAIHSFR | $ / US pound Pack: 10-11" Tapered Reel/Bucket (103) | ||
Packaging: 10-11" Tapered Reel/Bucket (103) | Wire Size: 13 AWG | EIS Part #: RW13HTAIHSFR | $ / US pound Pack: 10-11" Tapered Reel/Bucket (103) |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameMagnet Wire
Trade NamePulse Shield SD
SeriesRHTAIHSDPC
General Features
StandardsUL Listed, IEC 60317-13
TypeHeavy Build
Design & Construction
ColorNatural
Insulation MaterialTheic Modified Polyester Overcoated with Shield Coat Overcoated with Polyamide-imide
MaterialCopper
NEMA RatingMW 35-C
ShapeRound
Features
- Resistant to voltage stresses generated by high frequency, rapid rise time, voltage spikes typically introduced by IGBT-type inverters. Motor life is increased significantly over standard MW-35C magnet wire under these voltage stresses and across a wide temperature range
- Improved insulation protection against transient spikes, high frequencies, elevated voltage levels and short rise time pulses without increasing insulation thickness
- Excellent resistance to thermoplastic flow (cut-through), abrasion and heat shock
- Excellent resistance to heat and solvent shock conditions encountered in varnishing and encapsulating processes
Applications
- For Inverter Driven Motors, High Frequency Transformers and High Voltage Motors
