MFR #:QTAIHPC_QB
EIS #:PH15-QTAIHPC_QB
Series #:QTAIHPC_QB
MFR #:QTAIHPC_QB
EIS #:PH15-QTAIHPC_QB
Series #:QTAIHPC_QB

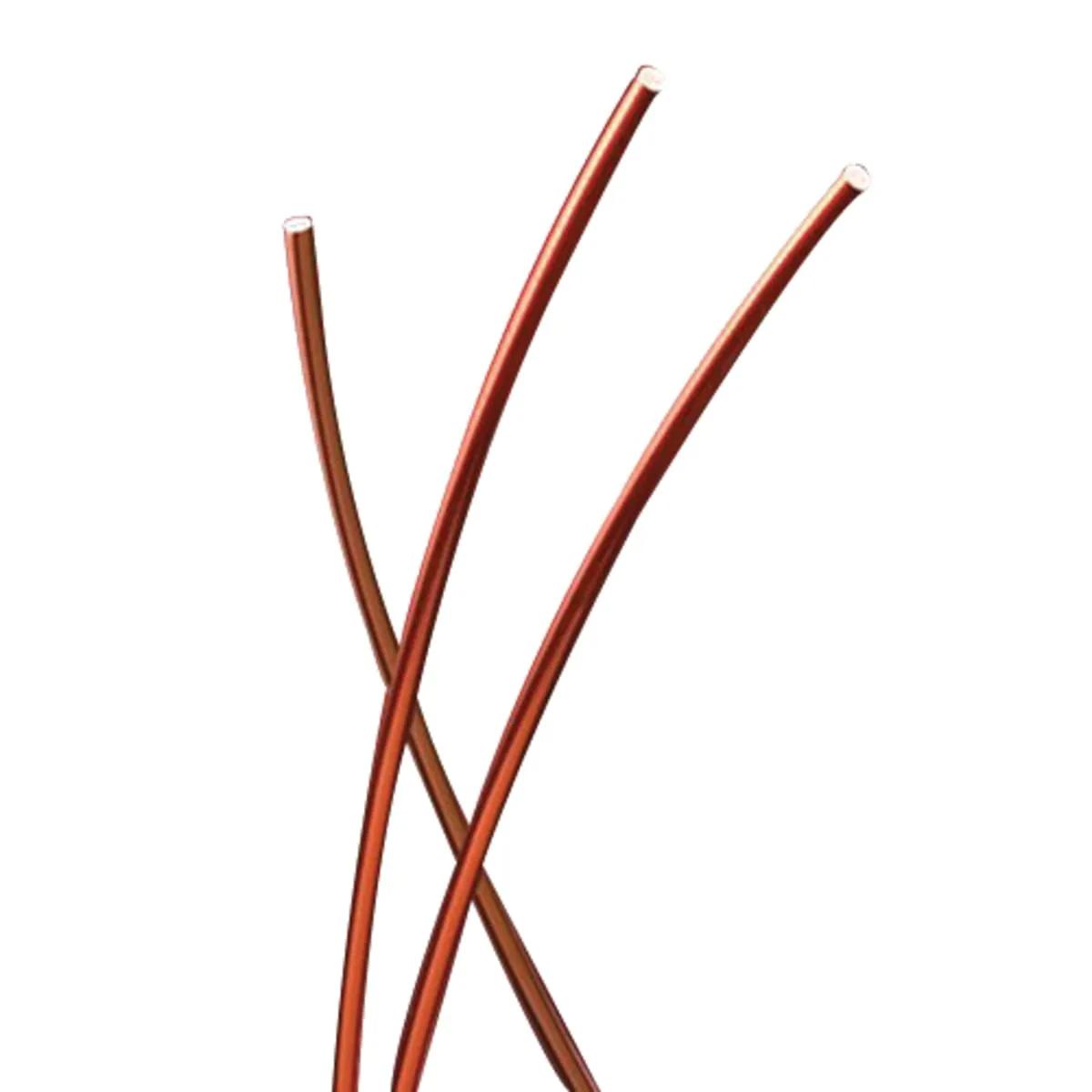

Both quad build round Super Hyslik 200 and Therm-Aimid are dual film insulation systems composed of THEIC modified polyester with a polyamideimide (AI) overcoat. Therm-Aimid, designed for continuous operation at 200 °C, provides superior abrasion resistance, solvent resistance and overload protection. Rea applied its Hyslik technology to this product and introduced Super Hyslik 200. - Featuring the same materials, construction and benefits as Therm-Aimid, quad build round Super Hyslik 200 includes a proprietary internal lubricating system to aid windability and insertion. Today, Super Hyslik 200 has replaced Therm-Aimid in all AWG 10 - 34 applications. Superior chemical and moisture resistance, especially with refrigerants in hermetic applications.
$403.00
- $507.00
Select from the options below
Both quad build round Super Hyslik 200 and Therm-Aimid are dual film insulation systems composed of THEIC modified polyester with a polyamideimide (AI) overcoat. Therm-Aimid, designed for continuous operation at 200 °C, provides superior abrasion resistance, solvent resistance and overload protection. Rea applied its Hyslik technology to this product and introduced Super Hyslik 200. - Featuring the same materials, construction and benefits as Therm-Aimid, quad build round Super Hyslik 200 includes a proprietary internal lubricating system to aid windability and insertion. Today, Super Hyslik 200 has replaced Therm-Aimid in all AWG 10 - 34 applications. Superior chemical and moisture resistance, especially with refrigerants in hermetic applications.
Product Options
Showing 4 out of 4 options
Packaging: 15-16" Tapered Reel(280) | Wire Size: 16 AWG | EIS Part #: RW16QTAIHQR | $ / US pound Pack: 15-16" Tapered Reel(280) | ||
Packaging: 15-16" Tapered Reel(280) | Wire Size: 15 AWG | EIS Part #: RW15QTAIHQR | $ / US pound Pack: 15-16" Tapered Reel(280) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 15 AWG | EIS Part #: RW15QTAIHGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 15-16" Tapered Reel (280) | Wire Size: 14 AWG | EIS Part #: RW14QTAIHQR | $ / US pound Pack: 15-16" Tapered Reel (280) |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameMagnet Wire
Trade NameSuper Hyslik 200
SeriesQTAIHPC_QB
General Features
StandardsUL Listed, IEC 60317-13
TypeQuad Build
Design & Construction
ColorNatural
Insulation MaterialTheic Modified Polyester Overcoated with Polyamide-imide
MaterialCopper
NEMA RatingMW 35-C, MW 73-C
ShapeRound
Physical Properties
Reel Hub Diameter1.536 Inch
Reel Width12 Inch
Features
- Tough abrasion-resistant surface which withstands automated winding operations
- Excellent dielectric properties
- Superior thermal overload protection, especially during locked-rotor conditions
- Superior performance in Hermetics
- High thermal endurance, high temperature dielectric, resists thermoplastic flow, excellent adhesion and flexibility basecoat
- Heat shock resistant, moisture resistant, surface toughness and chemical resistant topcoat
Applications
- For Dry Type Transformers, Hermetic Motors, Tool Motors, Automotive Alternator Stators, Solenoids, High Voltage Transformers and Torodial Transformers
