Rea Magnet Wire Owned Nysol Single Build Round Magnet Wire, MFR ID NYSPCO_SB
- MFR #NYSPCO_SB
- EIS #PH15-NYSPCO_SB
- Series #NYSPCO_SB
$290.00 - $588.00
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 6" Spool (060) | 22 AWG | $ / US pound Pack: 6" Spool (060) more info | |
 | 3" Spool (CD03) | 34 AWG | $ / US pound Pack: 3" Spool (CD03) |

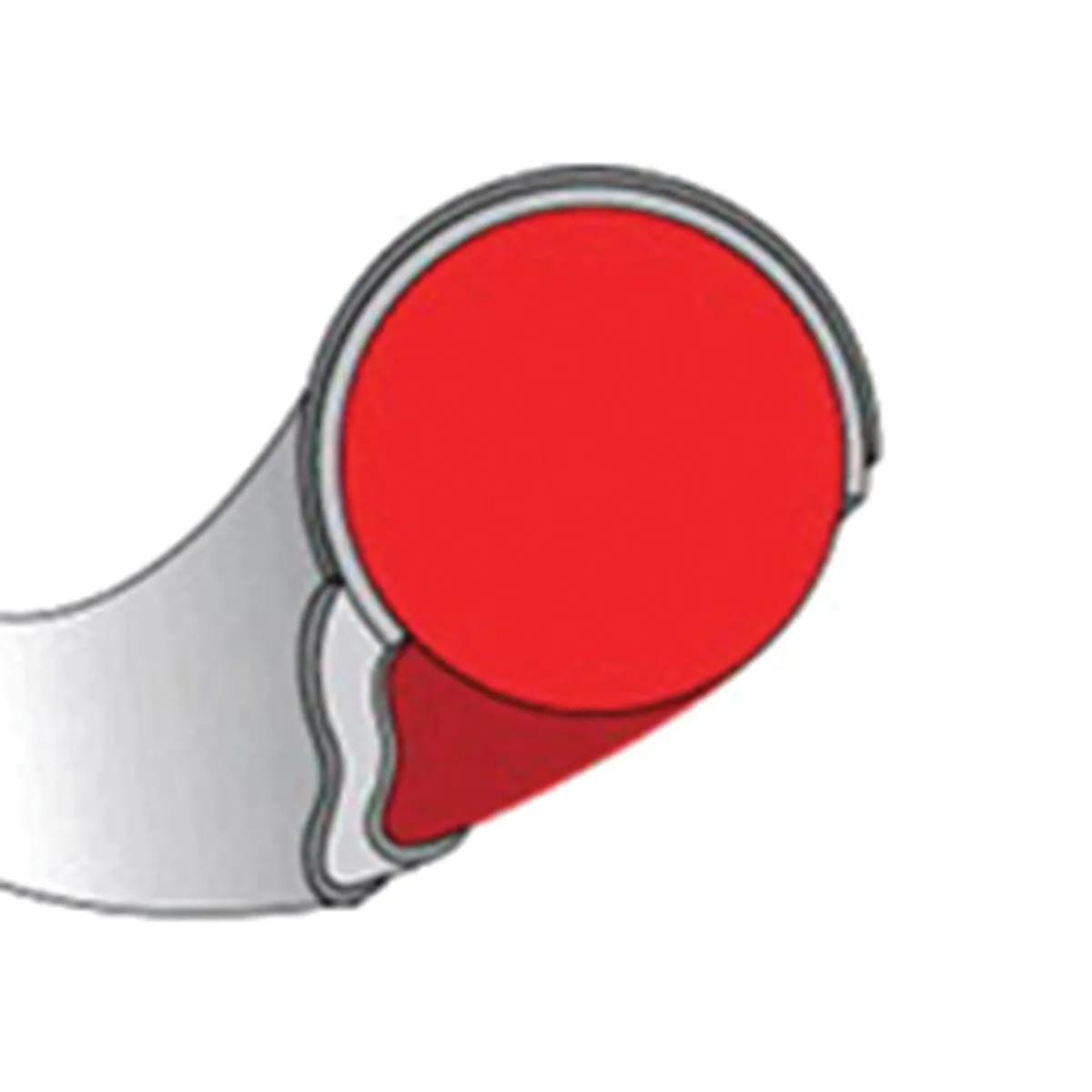

Rea Nysol single build is a dual film solderable insulation composed of modified polyurethane resins with a polyimide (nylon) overcoat. The nylon overcoat provides a significant reduction in the wire's coefficient of friction aiding both windability and the production of compact coils. Polyamide (nylon) overcoat provides excellent mechanical protection during winding and insertion. - Nysol single build has a continuous operating temperature of 155 °C and is formulated for applications where a solderable insulation is desired. Exceptional film flexibility and adhesion resisting winding damage.
Features
- Excellent dereeling and windability on high speed and/or automated winding machines
- Produces compact coils and windings
- Self-fluxing providing excellent soldered connections with solder temperatures as low as 360 °C
- Extremely resistant to a variety of solvents including most varnishes and hardener catalysts
- Solderable without prior to insulation removal
Applications
- For Universal Motors, Relays, Lighting Ballast Transformers, Fractional HP Motors, Torroidal and Ignition Coils
General Information
| Item Name | Magnet Wire |
| Trade Name | Nysol |
| Series | NYSPCO_SB |
General Features
| Type | Single Build |
| Standards | UL Listed, IEC 60317-21 |
Design & Construction
| Color | Red |
| Insulation Material | Polyurethane Overcoated with Polyamide (Nylon) |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 80-C |
