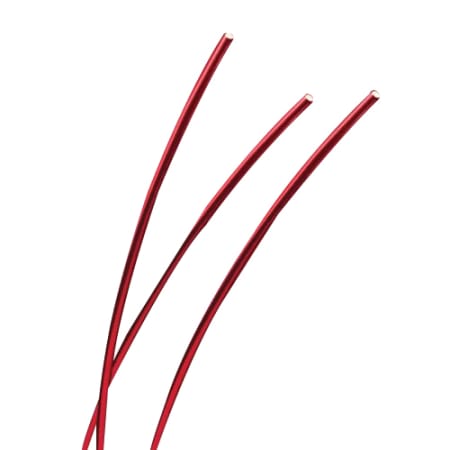

Rea Magnet Wire Nysol Single Build Round Magnet Wire
MFR #:NYSPC_SB
EIS #:PH15-NYSPC_SB
Series #:NYSPC_SB
MFR #:NYSPC_SB
EIS #:PH15-NYSPC_SB
Series #:NYSPC_SB
Rea Nysol single build is a dual film solderable insulation composed of modified polyurethane resins with a polyimide (nylon) overcoat. The nylon overcoat provides a significant reduction in the wire's coefficient of friction aiding both windability and the production of compact coils. - Nysol single build has a continuous operating temperature of 155 °C and is formulated for applications where a solderable insulation is desired.
$172.00
- $571.00
Select from the options below
Rea Nysol single build is a dual film solderable insulation composed of modified polyurethane resins with a polyimide (nylon) overcoat. The nylon overcoat provides a significant reduction in the wire's coefficient of friction aiding both windability and the production of compact coils. - Nysol single build has a continuous operating temperature of 155 °C and is formulated for applications where a solderable insulation is desired.
Product Options
Showing 8 out of 16 options
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 28 AWG | Color: Red | EIS Part #: RW28SNSGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 8.5-9.25" Tapered Reel (094) | Wire Size: 27 AWG | Color: Red | EIS Part #: RW27SNSIR | $ / US pound Pack: 8.5-9.25" Tapered Reel (094) | ||
Packaging: 8.5-9.25" Tapered Reel (094) | Wire Size: 26 AWG | Color: Red | EIS Part #: RW26SNSIR | $ / US pound Pack: 8.5-9.25" Tapered Reel (094) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 26 AWG | Color: Red | EIS Part #: RW26SNSGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 8.5-9.25" Tapered Reel (094) | Wire Size: 25 AWG | Color: Red | EIS Part #: RW25SNSIR | $ / US pound Pack: 8.5-9.25" Tapered Reel (094) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 25 AWG | Color: Red | EIS Part #: RW25SNSGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | ||
Packaging: 8.5-9.25" Tapered Reel (094) | Wire Size: 24 AWG | Color: Red | EIS Part #: RW24SNSIR | $ / US pound Pack: 8.5-9.25" Tapered Reel (094) | ||
Packaging: 10-11" Tapered Reel/Box (115) | Wire Size: 23 AWG | Color: Red | EIS Part #: RW23SNSGR | $ / US pound Pack: 10-11" Tapered Reel/Box (115) |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameMagnet Wire
Trade NameNysol
SeriesNYSPC_SB
General Features
StandardsUL Listed, IEC 60317-21
TypeSingle Build
Design & Construction
Insulation MaterialPolyurethane Overcoated with Polyamide (Nylon)
MaterialCopper
NEMA RatingMW 80-C
ShapeRound
Features
- Excellent dereeling and windability on high speed and/or automated winding machines
- Produces compact coils and windings
- Self-fluxing providing excellent soldered connections with solder temperatures as low as 360 °C
- Exceptional film flexibility and adhesion resisting winding damage
- Extremely resistant to a variety of solvents including most varnishes and hardener catalysts
- Solderable without prior to insulation removal
- Polyamide (nylon) overcoat provides excellent mechanical protection during winding and insertion
Applications
- For Universal Motors, Relays, Lighting Ballast Transformers, Fractional HP Motors, Torroidal and Ignition Coils
