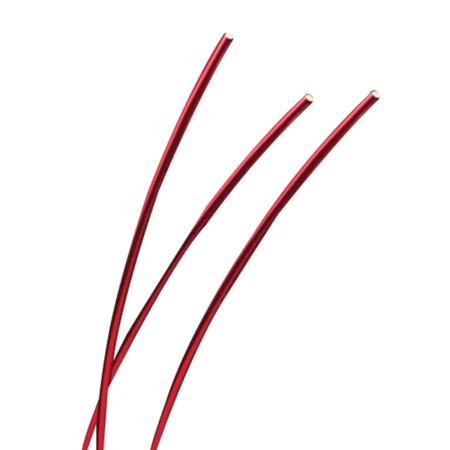

Rea Magnet Wire Nysol Heavy Build Round Magnet Wire, MFR ID NYSPC_HB
- MFR #NYSPC_HB
- EIS #PH15-NYSPC_HB
- Series #NYSPC_HB
$177.00 - $1,026.75
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
 | 10-11" Tapered Reel/Box (115) | 11 AWG | Red | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | |
 | 6" Spool (060) | 14 AWG | Red | $ / US pound Pack: 6" Spool (060) | |
| 10-11" Tapered Reel/Box (115) | 14 AWG | Red | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | |
| 10-11" Tapered Reel/Box (115) | 15 AWG | Red | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | |
| 10-11" Tapered Reel/Box (115) | 16 AWG | Red | $ / US pound Pack: 10-11" Tapered Reel/Box (115) | |
| 10-11" Tapered Reel/Box (115) | 17 AWG | Red | $ / US pound Pack: 10-11" Tapered Reel/Box (115) |
Rea Nysol heavy build is a dual film solderable insulation composed of modified polyurethane resins with a polyimide (nylon) overcoat. The nylon overcoat provides a significant reduction in the wire's coefficient of friction aiding both windability and the production of compact coils. - Nysol heavy build has a continuous operating temperature of 155 °C and is formulated for applications where a solderable insulation is desired. Excellent dereeling and windability on high speed and/or automated winding machines.
Features
- Produces compact coils and windings
- Self-fluxing providing excellent soldered connections with solder temperatures as low as 360 °C
- Exceptional film flexibility and adhesion resisting winding damage
- Extremely resistant to a variety of solvents including most varnishes and hardener catalysts
- Solderable without prior to insulation removal
- Polyamide (nylon) overcoat provides excellent mechanical protection during winding and insertion
Applications
- For Universal Motors, Relays, Lighting Ballast Transformers, Fractional HP Motors, Torroidal and Ignition Coils
General Information
| Item Name | Magnet Wire |
| Trade Name | Nysol |
| Series | NYSPC_HB |
General Features
| Type | Heavy Build |
| Standards | UL Listed, IEC 60317-21 |
Design & Construction
| Insulation Material | Polyurethane Overcoated with Polyamide (Nylon) |
| Shape | Round |
| Material | Copper |
| NEMA Rating | MW 80-C |
